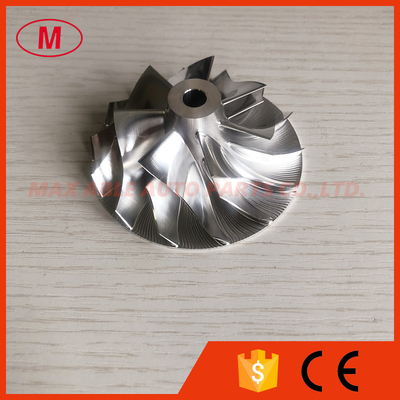

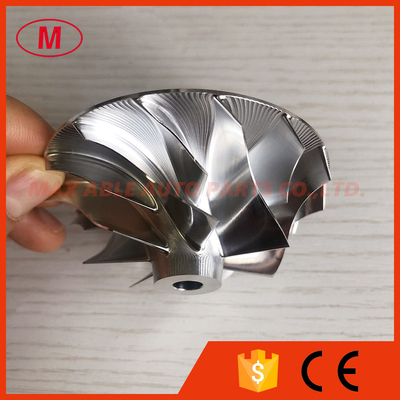

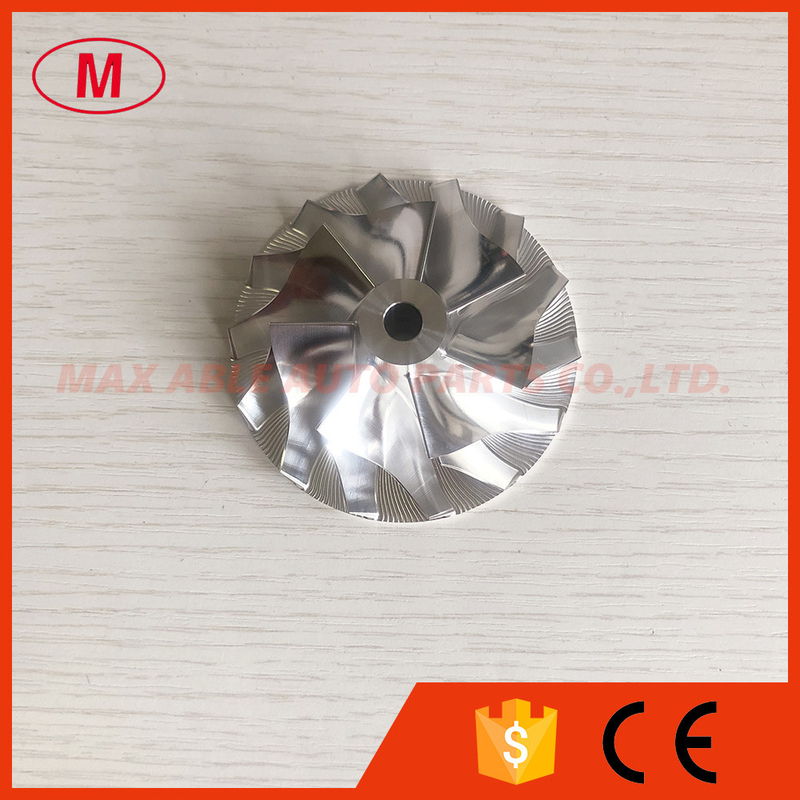

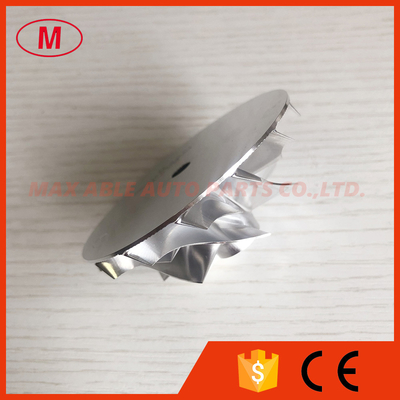

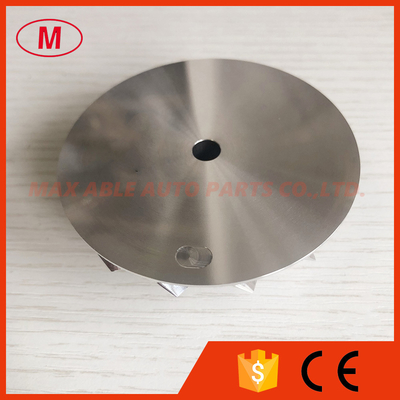

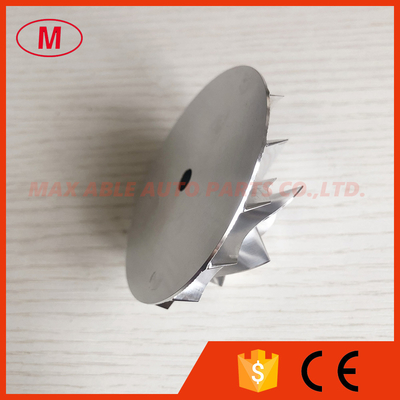

S200 7+7 blades 49.95/73.00mm Turbo milling/aluminum 2618/billet compressor wheel

Minimum Order Quantity:	1PC
Price:	DISCUSS
Packaging Details:	neutral packing
Delivery Time:	3-7 DAYS
Payment Terms:	T/T, Western Union, MoneyGram,PAYPAL
Supply Ability:	1000PCS

Contact Now

Detailed Product Description

1. MODEL:S200 forward

2.S200 7+7 blades 49.95/73.00mm Turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:16.00mm

Inducer:49.95mm

exducer:73.00mm

Tip height:7.30mm

Superback:0.00mm

bore size :7.00mm

Overall height:28.32mm

Blades height:22.95mm

Cutback:-1.2

Splitter height:13.20mm

sp height angle:-0.50

Trailing Angle:45

Fit for OE compressor housing

7+7 blades forward

Tapered tip angle:0 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.

Contact Details

Max Able Auto Parts Co.,Ltd.

Contact Person: Mr. David

Tel: 86-21-61119327

Fax: 86-21-61119327
