| Place of Origin: | China |
| Brand Name: | no |
| Model Number: | GTA15-25 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days after payment |
| Payment Terms: | TT,western union ,paypal |
| Supply Ability: | 10000pcs |
1. MODEL:GTA15-25 forward

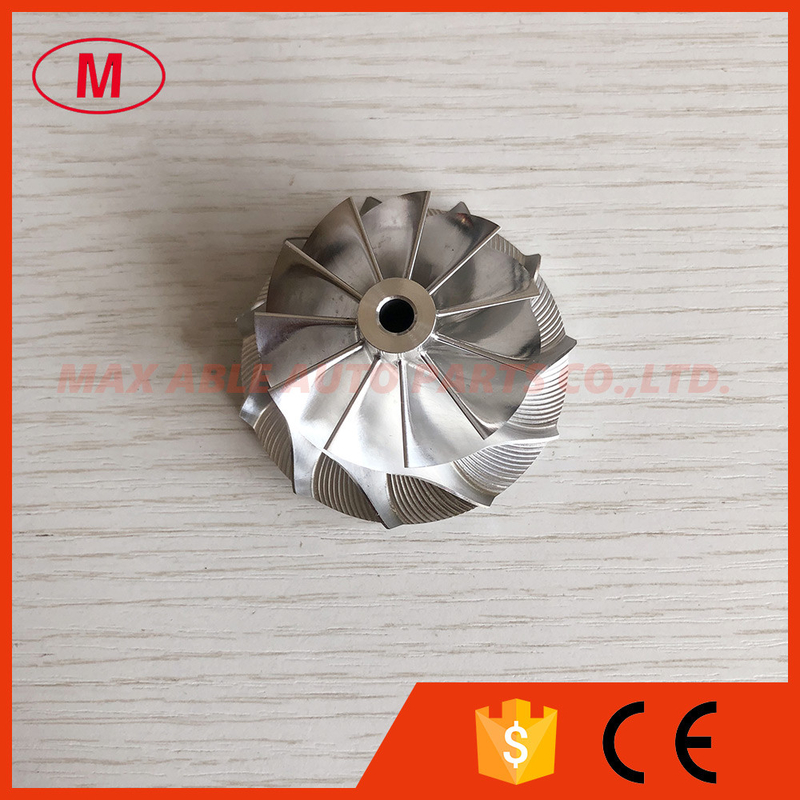

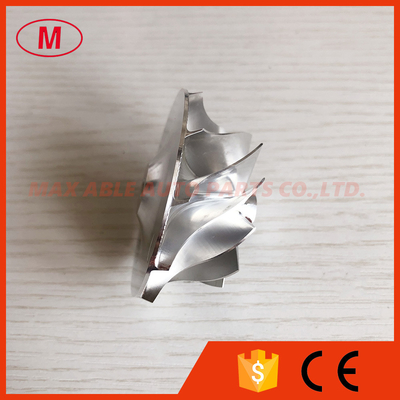

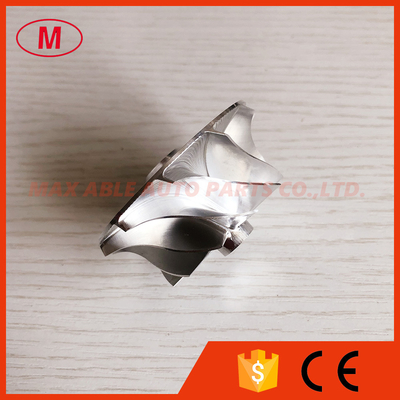

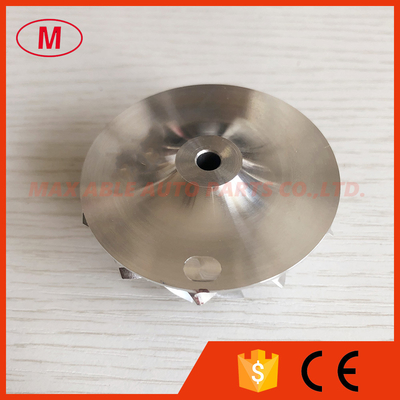

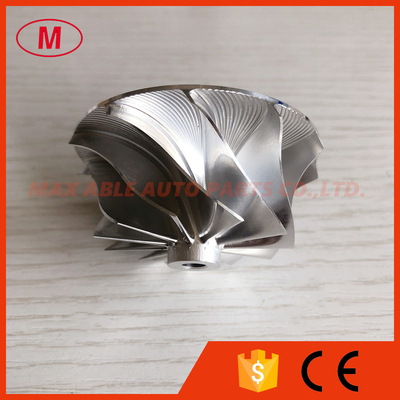

2.GTA15-25 43.00/56.03mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:11.31mm
inducer:43.00mm
Exduder:56.03mm
Tapered tip exducer:58.26mm
Tip height:4.43mm
Superback:3.68mm
Overall height:30.72mm
bore size :5.08mm
bore type:Through
Trailing Angle:60 degree
Cutback:2.0
Blade height:23.13mm
SP height Angle:0.00
Splitter height:0.00mm
11+0 blades
forward rotation
It is custom size ,please check carefully before buying.
Tapered tip Angle: 18 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
All the billet compressor wheels have been balanced.
