| Model Number: | T04R |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 66.30/84.00mm | Type: | Turbochargers |
|---|
1. MODEL:T04R forward

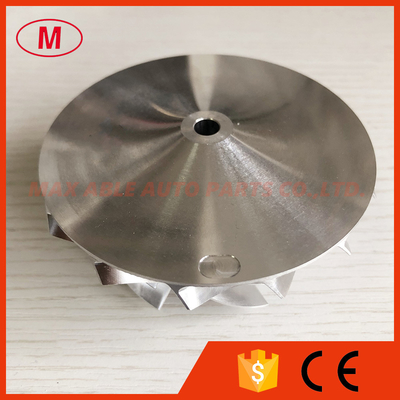

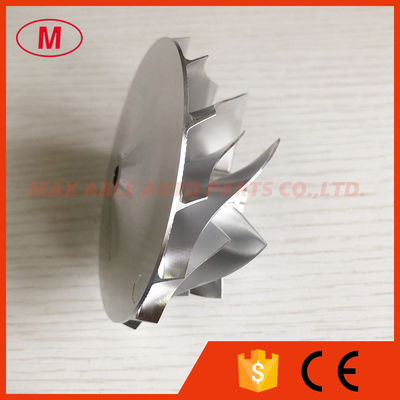

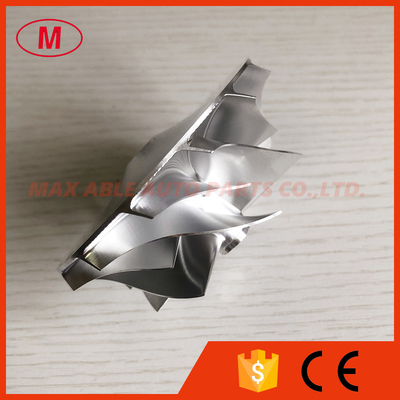

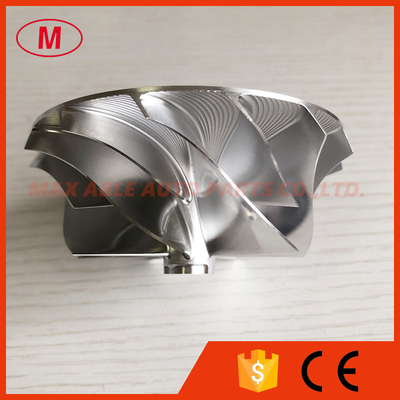

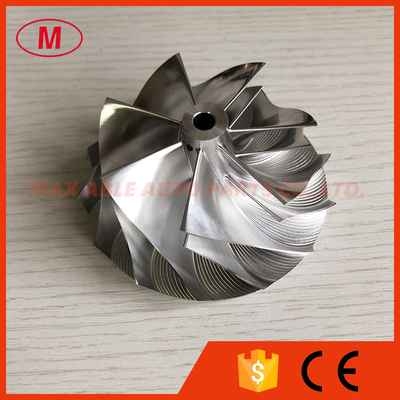

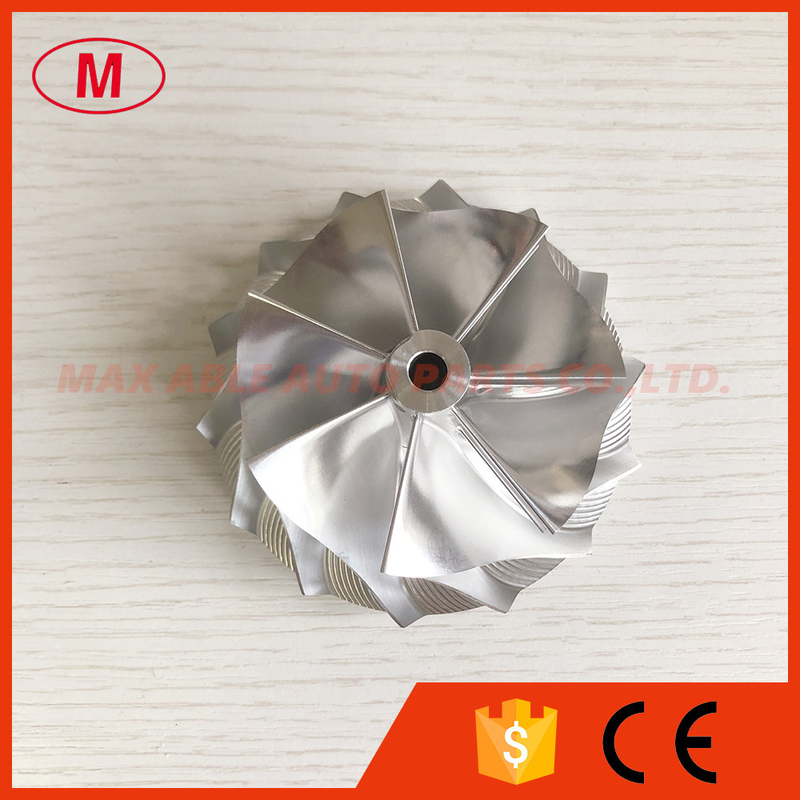

2.T04R 451470-0001 66.30/84.00mm 7+7 blades Turbocharger turbo Billet/milling/aluminum 2618 compressor wheel for Racing 66.5/84
3.Size:
Nose diameter:13.82mm
inducer:66.30mm
Exduder:84.00mm
Tapered tip exducer:87.87mm
Tip height:6.96mm
Superback:4.97mm
Overall height:41.10mm
bore size :6.35mm
bore type:through
Trailing angle:55 degree
Cutback:0.0
SP height angle:-8.60
Splitter height:20.95mm
Blades height:31.64mm
7+7 blades
forward rotation
Tapered tip angle:18 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The mininum order is 5pcs
The more models we also have.
All the billet compressor wheels have been balanced.
