| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GTA15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

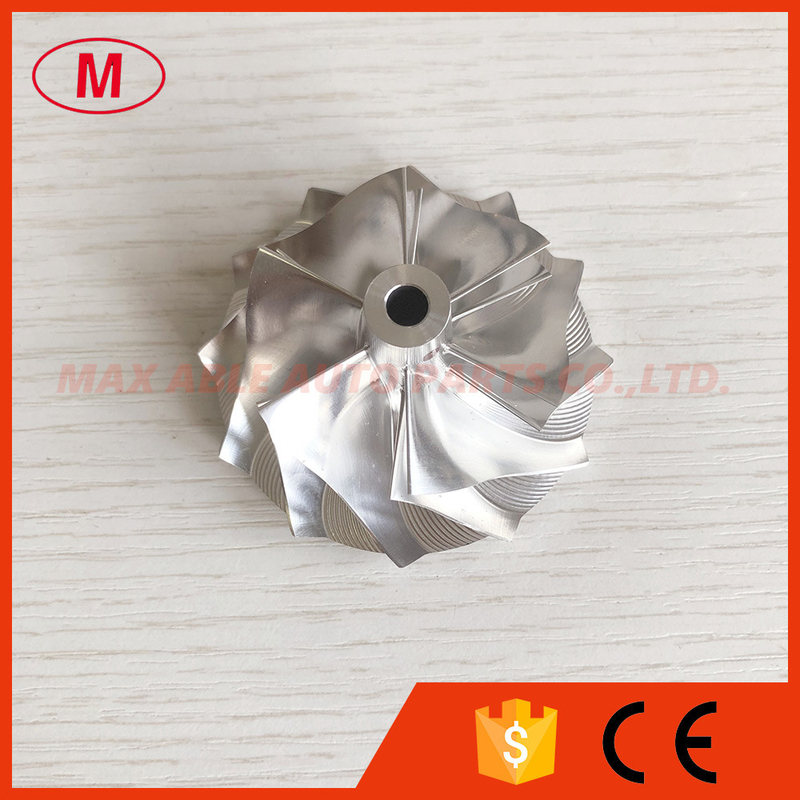

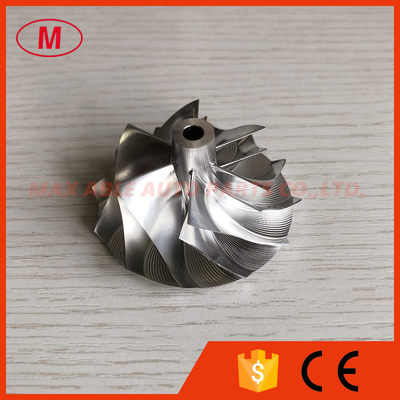

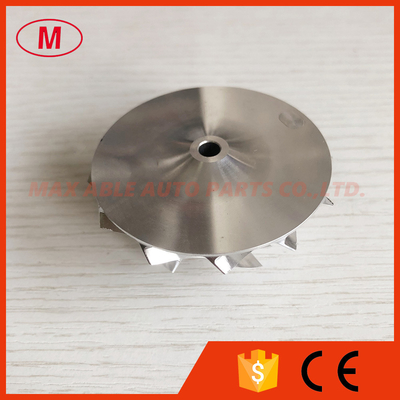

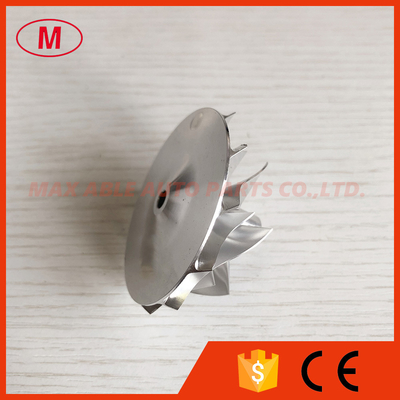

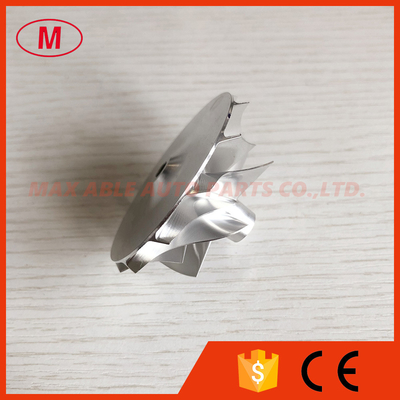

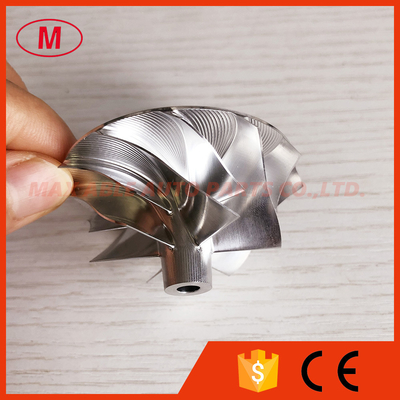

1.Model:GTA15-25 forward
3.Size:
Nose diamter:10.69mm
inducer:43.41mm
Exduder:56.02mm
Tapered tip exducer:59.92mm
Tip height:4.38mm
Superback:2.39mm
Overall height:30.50mm
bore size :5.08mm
bore type:through
Trailing Angle:45 degree
Cutback:0.00
SP height angle:-7.30
Blade height:20.17mm
Splitter height:14.00mm
It is for custom size ,please check carefully before buying.
6+6 blades
forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
