| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD04 FORWARD

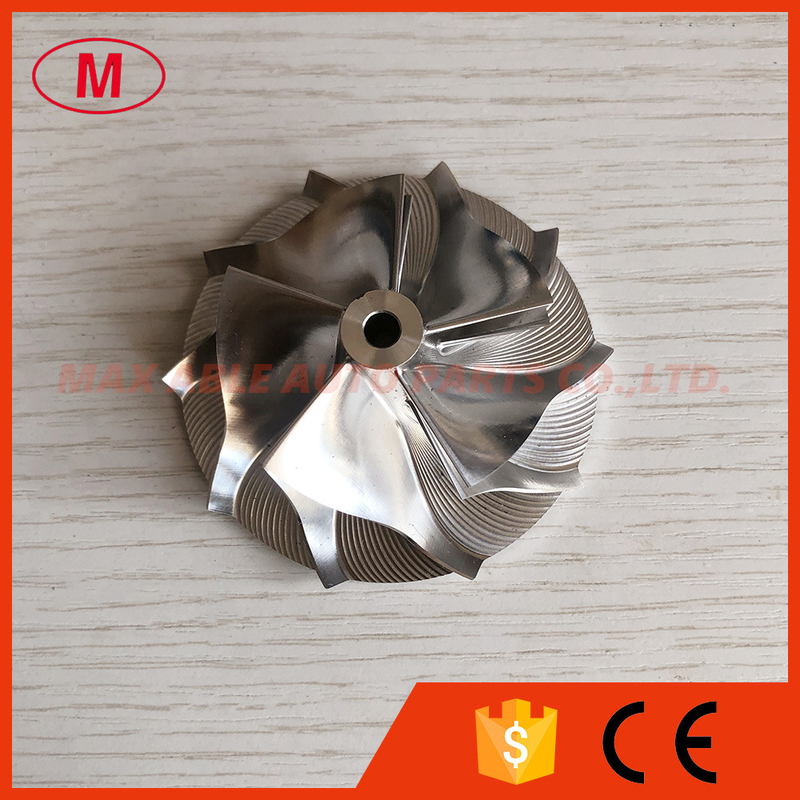

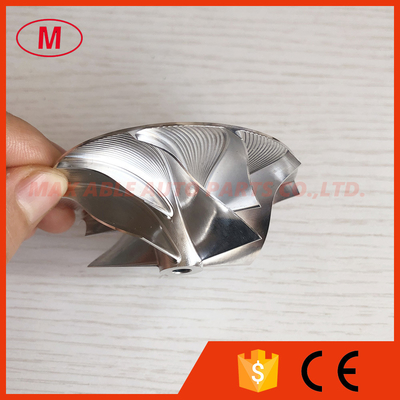

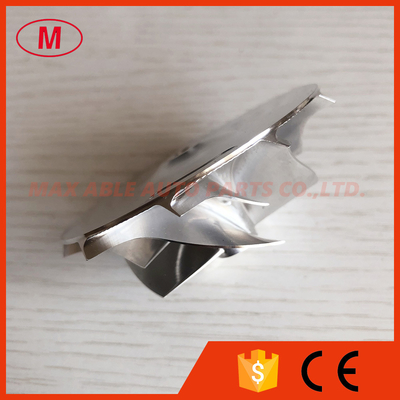

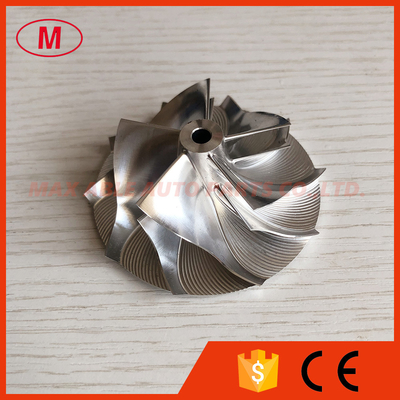

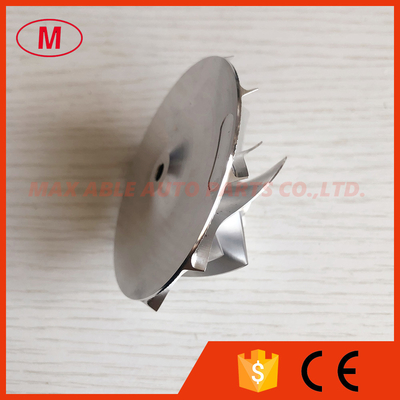

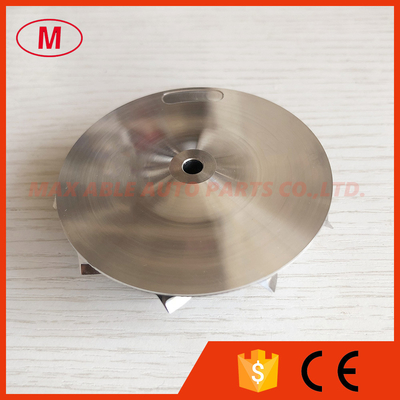

2.TD04 5+5 blades 49.62/68.58mm high performance turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size
Nose diamter:11.55mm
inducer:49.62mm
Exduder:68.58mm
Tapered tip exducer:72.83mm
Tip height:4.48mm
Superback:1.85mm
Overall height:27.20mm
bore size :5.00mm
Trailing Angle:60
Cutback:4.9
SP height angle:-5.00
Splitter height:14.00mm
Blades height:23.75mm
5+5 blades
Tapered tip Angle: 30 degree
forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
