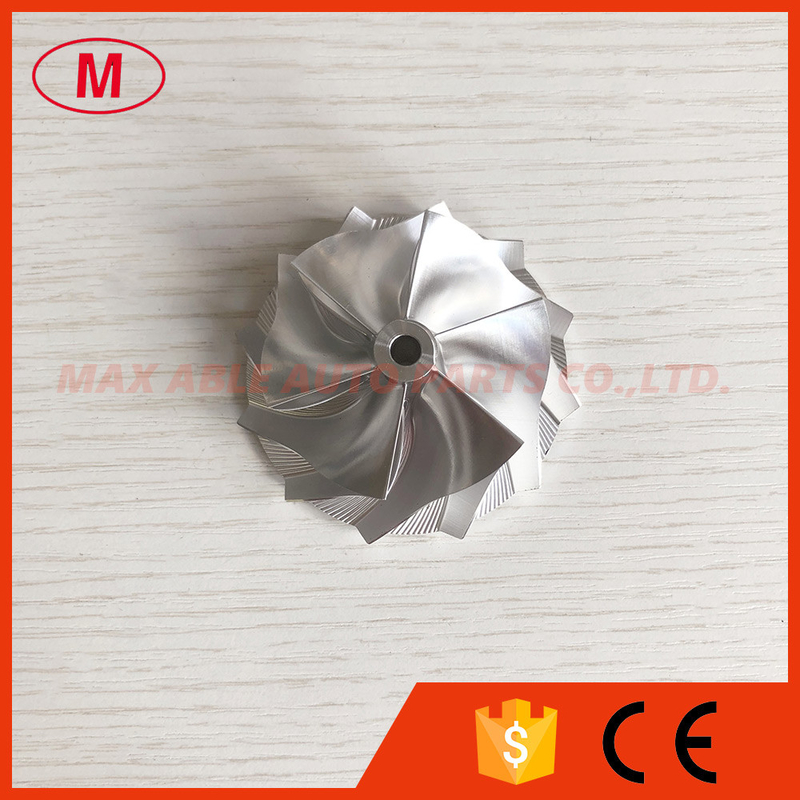

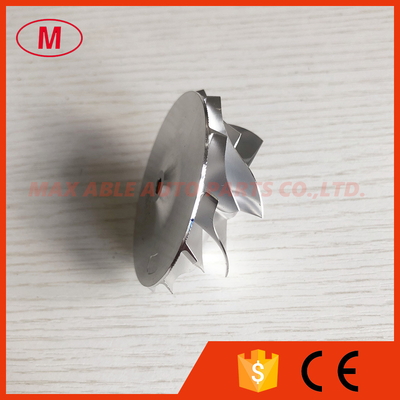

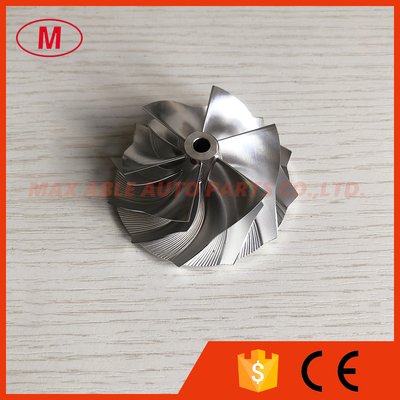

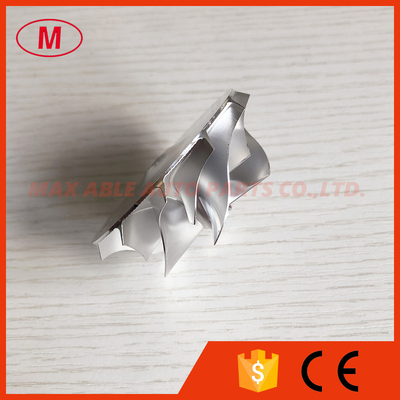

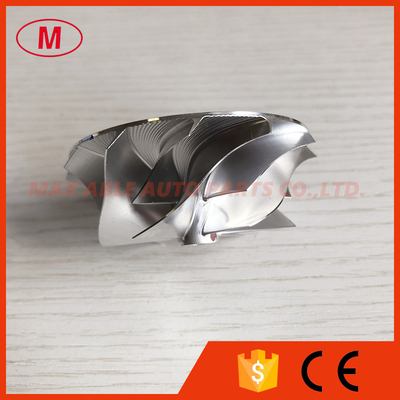

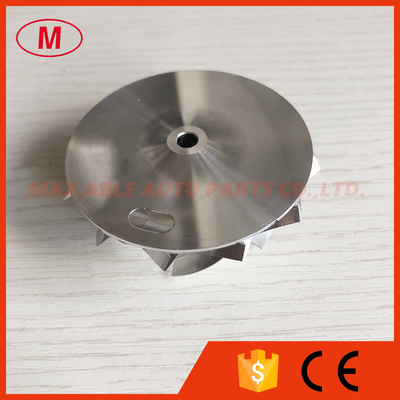

TD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheel

TD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheel

    • TD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Model Number: td04hl

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:TD04HL reverse
    2.TD04HL reverse 48.50/60.00mm 6+6 blades LEP Style, Performance Design turbo Turbocharger milling/aluminum 2618/billet compressor wheel
    3.Size:
    Nose diameter:10.50mm
    Inducer:48.50mm
    exducer:60.00mm
    Tapered tip exducer:64.58mm
    Tip height:4.97mm
    Superback:1.90mm
    Overall height:26.13mm
    bore size :5.00mm
    Trailing Angle:60
    Cutback:0.0
    SP height angle:-3.50
    Blades height:22.30 mm
    Splitter height:14.90mm
    6+6 blades reverse
    Tapered tip angle: 30 degree
    It is custom size ,please check carefully before buying.
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.

    skype : maxabledieselparts
    wechat/whatsapp:+86-18018657719
    TD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL reverse 48.50/60.00mm 6+6 blades LEP Style Performance Turbocharger milling/aluminum 2618/billet compressor wheel
