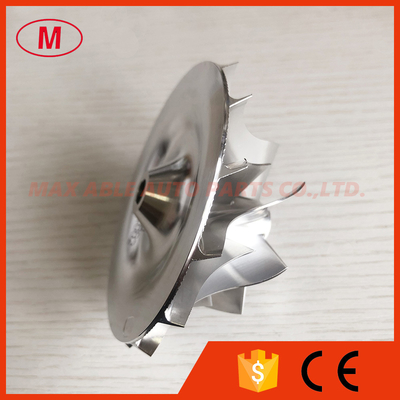

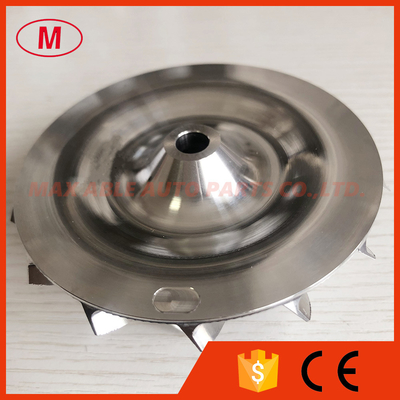

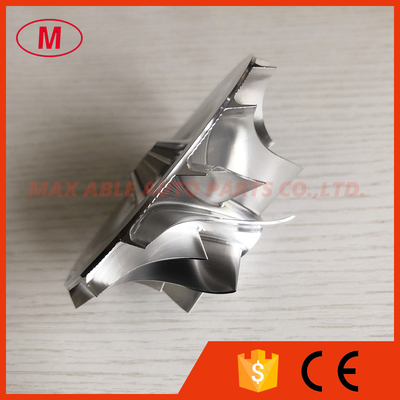

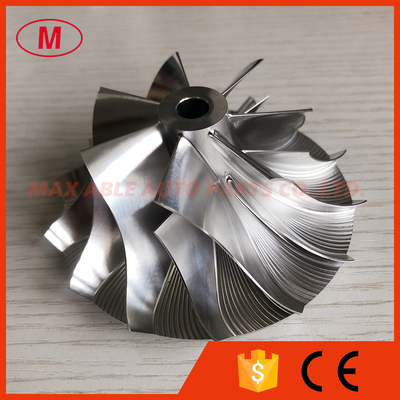

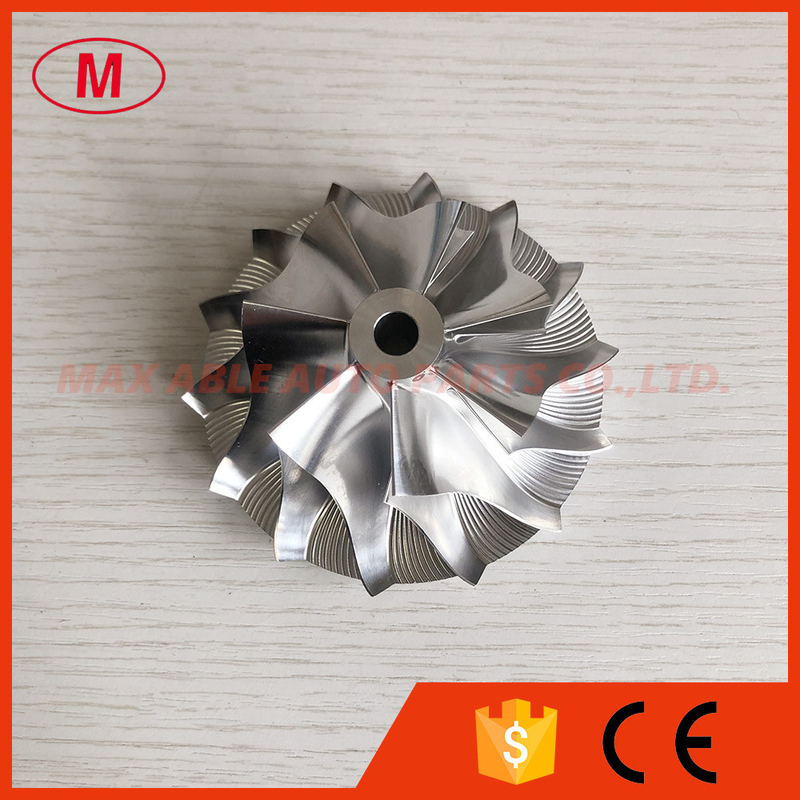

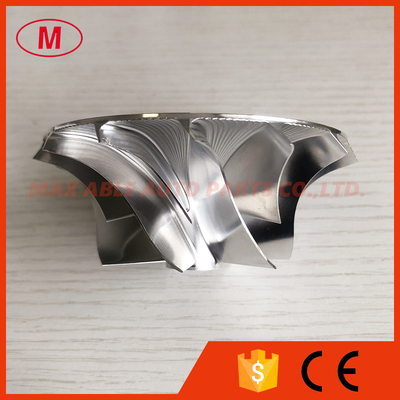

RHC7 57.23/85.90mm 7+7 blades high performance Turbocharger milling/aluminum 2618/billet compressor wheel

Brand Name:	NO
Model Number:	RHC7

Contact Now

Detailed Product Description

1. MODEL:RHC7 Forward

2.RHC7 57.23/85.90mm 7+7 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose Diameter:17.00mm

Inducer:57.23mm

exducer:85.90mm

Tapered tip exducer:91.79mm

Tip height:6.10mm

Superback:4.90mm

bore size :7.91mm

bore type:through

Overall height:41.32mm

Trailing Angle:60

Cutback:0.0

SP Height angle:-10.70

Blades height:34.40mm

Splitter height:23.10mm

7+7 blades

forward rotation

Tapered tip angle:30 degree

Fits OE Compressor Housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.

skype: maxabledieselparts

wechat/whatsapp:+8618018657719
