| Brand Name: | no |
| Certification: | ISO |
| Model Number: | TD04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | Neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:HT12 forward

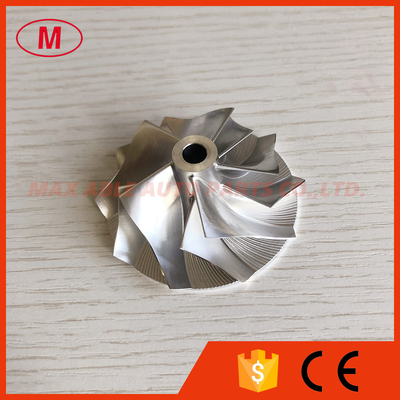

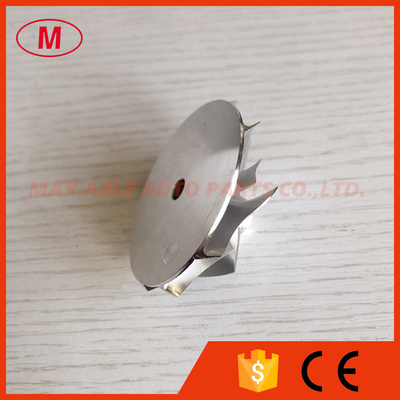

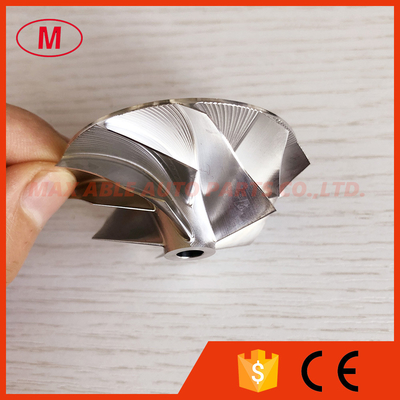

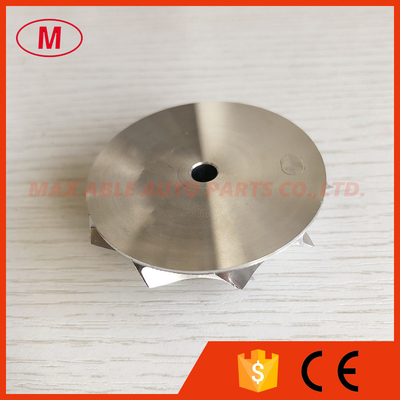

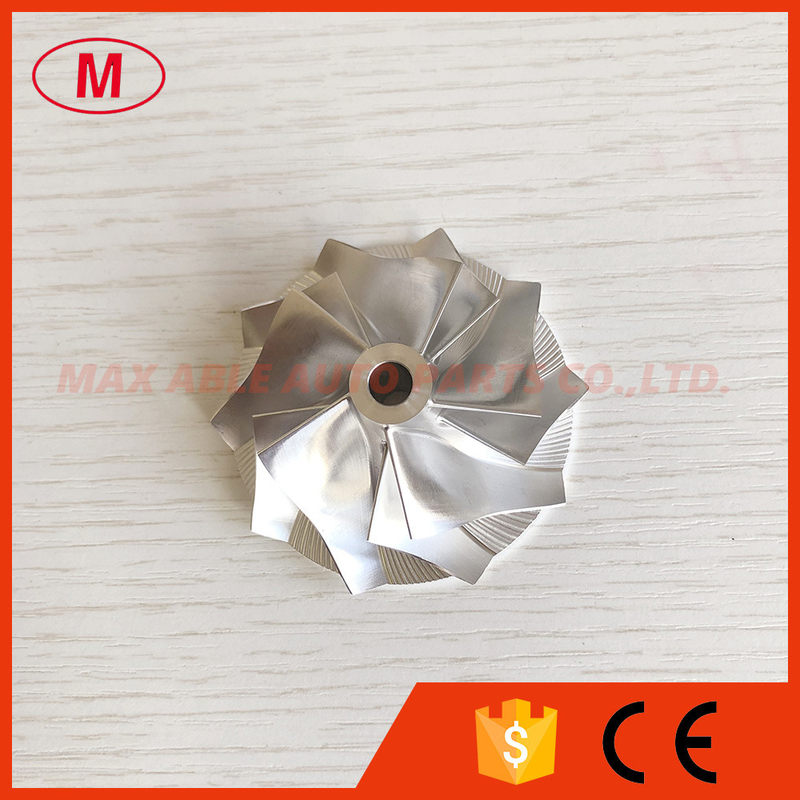

2.HT12 41.80/54.00mm 5+5 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.00mm
Inducer:41.80mm
Exducer:54.00mm
Tapered tip exducer:58.44mm
Tip height:4.84mm
super back:0.00mm
overall height:22.12mm
Trailing angle:60
bore size :6.00mm
bore type:through
Cutback:11.2
Splitter height :12.00mm
sp height angle:2.50
Blade height:20.30mm
5+5 blades
It is for OE compressor housing
Tapered tip angle: 30 degree
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced
