1. MODEL:RHF5 reverse

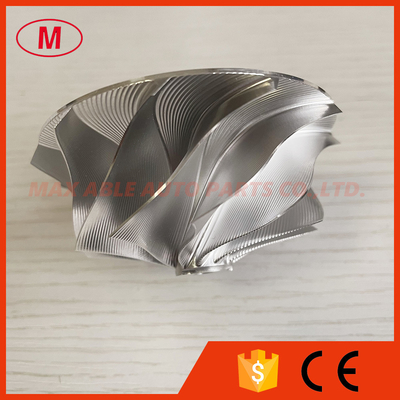

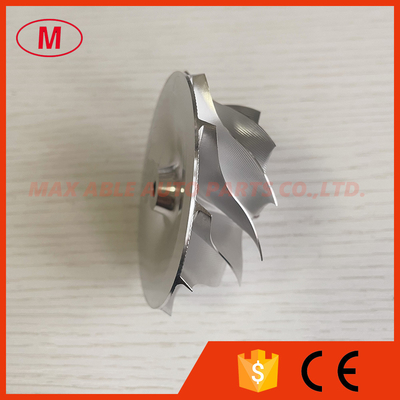

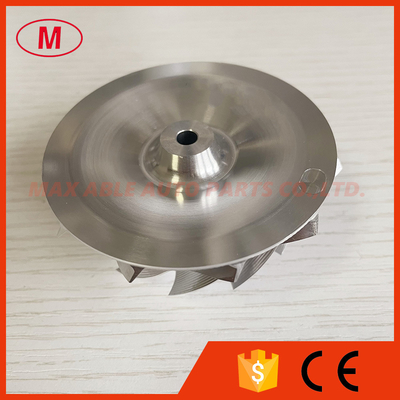

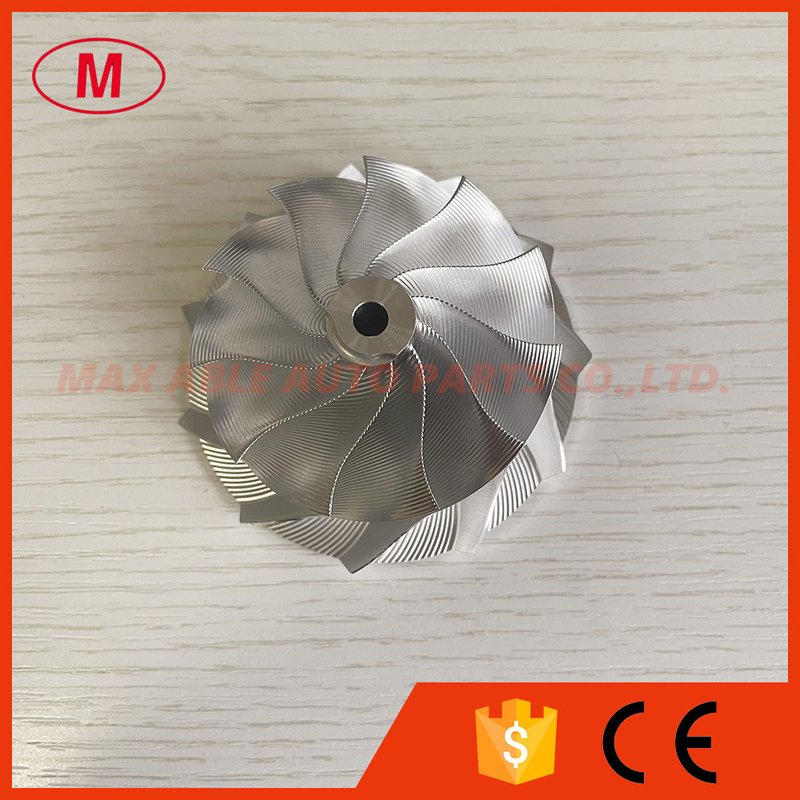

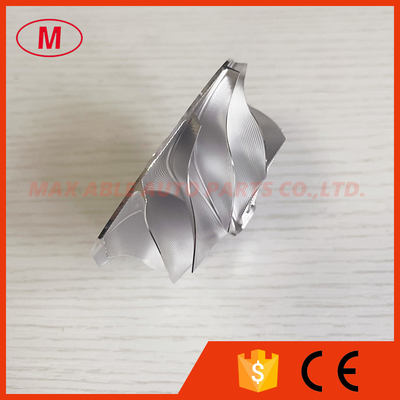

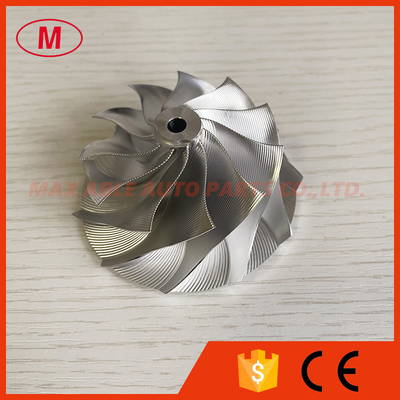

2.RHF5 reverse 57.00/70.00mm 11+0 blades Point Milling, Snake Curve,Recessed Superback Extreme turbo aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:13.04mm
Inducer:57.00mm
exducer:70.00mm
Tapered tip exducer:74.00mm
Tip height :4.67mm
superback:1.80mm
Overall height:34.00mm
Bore size:5.10mm
bore type:through
Trailing Angle:60
Cutback:10.0
Sp height Angle:0.00
Blade height:24.86mm
Splitter height:0.00mm
11+0 blades
reverse rotation
Tapered tip angle:28.6 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
we can produce as your requirements.
The minimun order is 5pcs
ALL THE billet wheel have been balanced.
