| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 45.80/63.50mm | Type: | Turbochargers |
|---|
1. MODEL:GT15-25 FORWARD

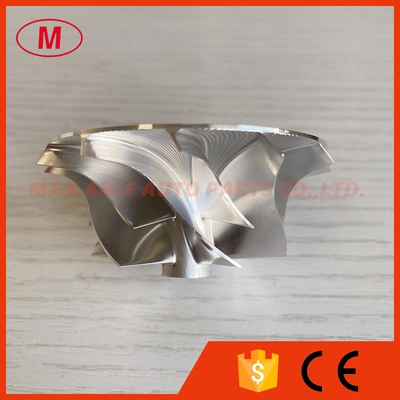

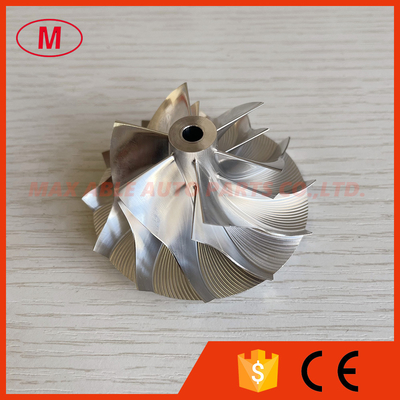

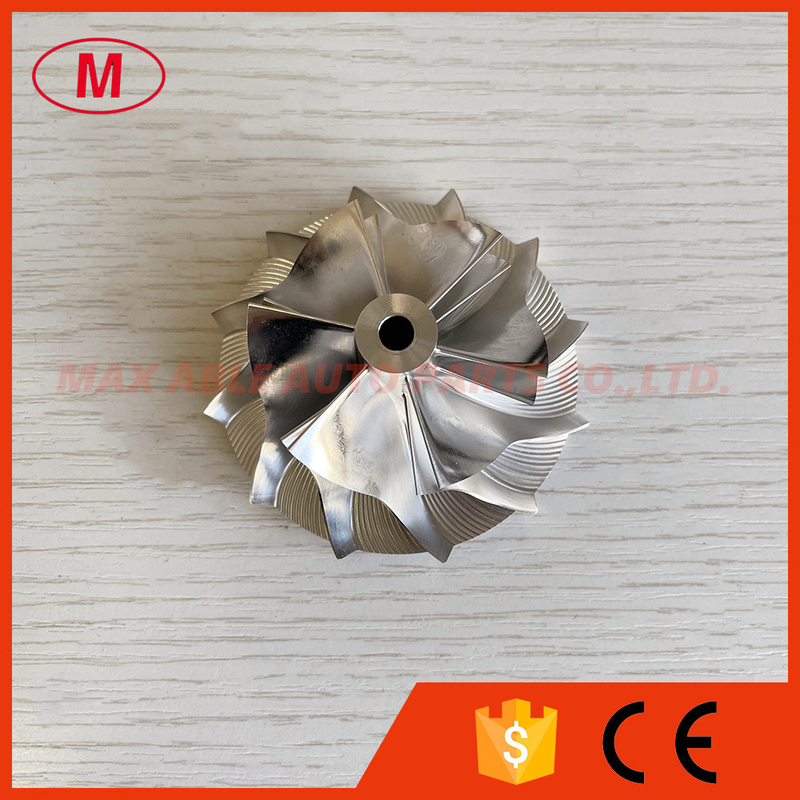

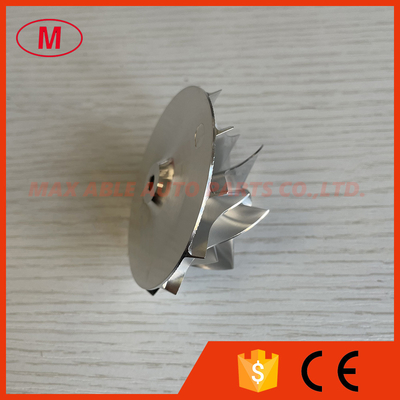

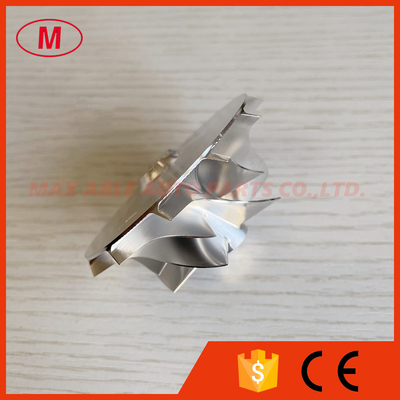

2.GT15-25 6+6 blades 45.80/63.50mm turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:11.95mm
inducer:45.80mm
Exduder:63.50mm
Tapered tip exducer:68.05mm
Tip height:4.94mm
Superback:3.99mm
Overall height:33.00mm
bore size :5.08mm
bore type:through
Trailing Angle:65 degree
Cutback:3.0
Blades height:25.74mm
Splitter height:17.60mm
SP height angle:-6.50 degree
Tapered tip Angle:30 degree
6+6 blades
forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
