| Brand Name: | NO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 42.00/56.08mm | Type: | Turbochargers |
|---|
.Model:K04 forward

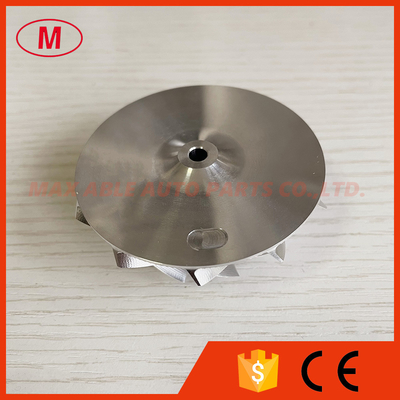

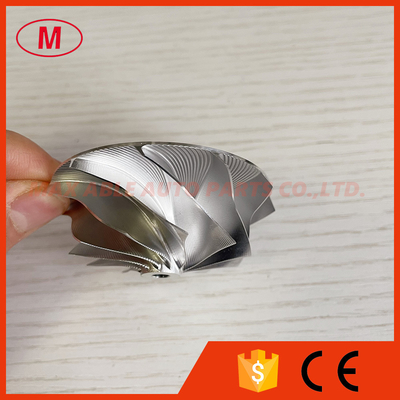

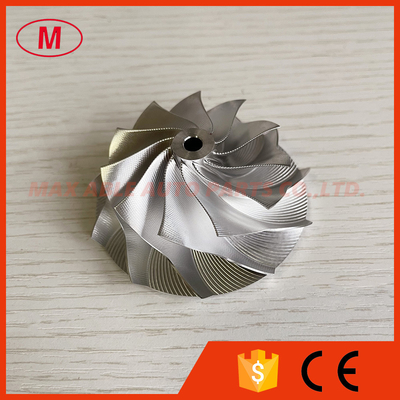

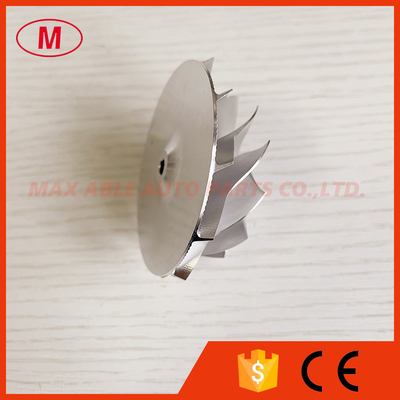

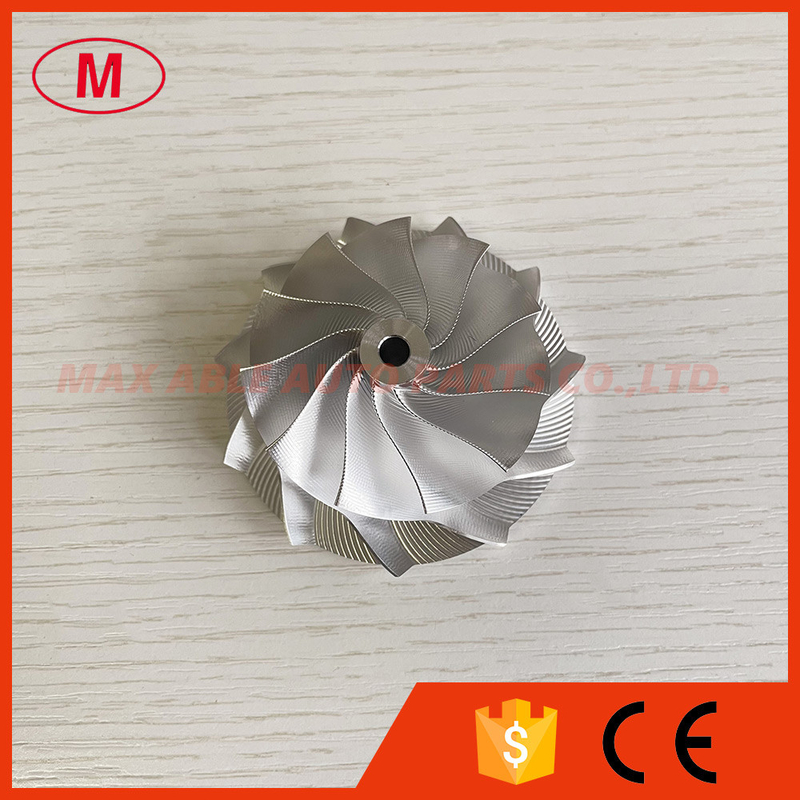

2.K04 11+0 blades 48.50/61.00mm Point Milling, Snake Curve,Performance Design, Twisted Blade Design billet/milling/aluminum 2618 compressor wheel
3.SIZE:
Nose diameter:10.50mm
inducer:48.50mm
Exducer:61.00mm
Tapered tip exducer:64.99mm
Tip height:4.45mm
Superback:1.80mm
Overall height:25.75mm
bore size:4.61mm
bore type:through
Trailing Angle:60
Cutback:8.0
SP height Angle:0.00
Splitter height:0.00mm
Blades height:19.00mm
11+0 blades
Forward rotation
Tapered tip Angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.please email to me or talk to me on online ,if you want to know more details.
All the compressor wheel have been balanced.
We can produce as your requirement.
