Home ProductsBillet compressor wheel

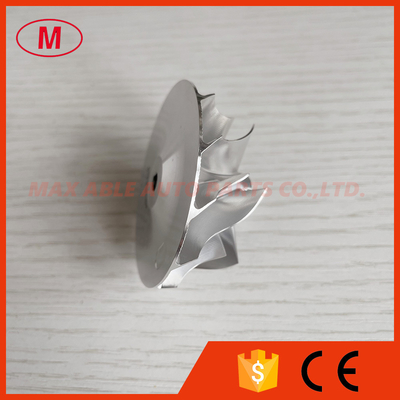

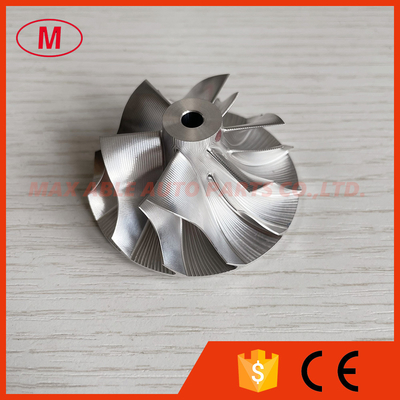

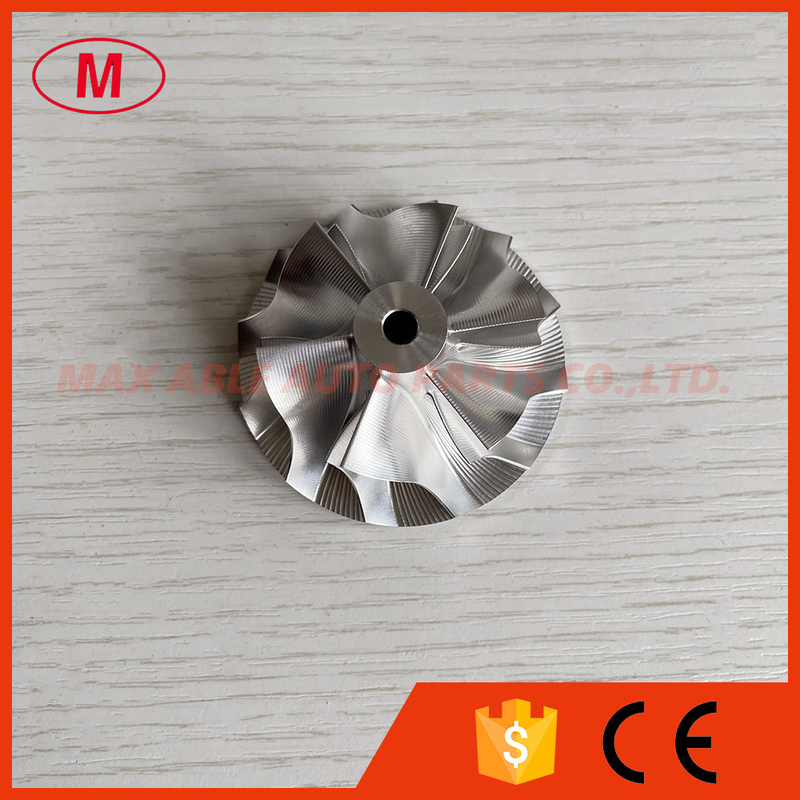

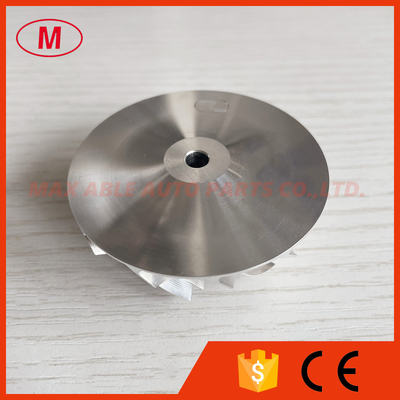

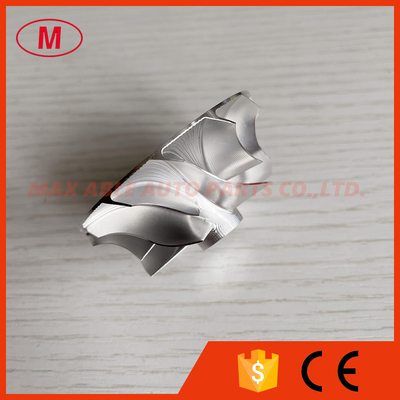

TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211

TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211

    • TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211
    • TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211
    • TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211
    • TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211
    • TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211
    • TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211
    • TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:TD04 forward
    2.TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling Turbocharger Billet/milling/aluminum 2618 compressor wheel for 49389-02211 Fuso/Truck &Bus /Forklifts4M50T
    3.Size:
    Nose diameter:13.80mm
    Inducer:43.35mm
    exducer:56.00mm
    Tip height:5.51mm
    Superback:1.90mm
    bore size :5.01mm
    bore type:through
    Overall height:26.20mm
    Cutback:0.0
    Trailing Angle:45 degree
    SP height angle:-10.00
    Blade height:20.71mm
    Splitter height:15.91mm
    6+6 blades forward
    it is for OE compressor housing
    Tapered tip Angle:0 degree
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211

    TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211TD04 6+6 blades 43.35/56.00mm 49189-49000 point milling milling/aluminum 2618/billet compressor wheel for 49389-02211
