Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:GT15-25 forward

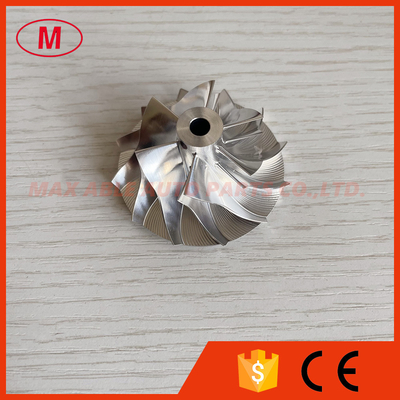

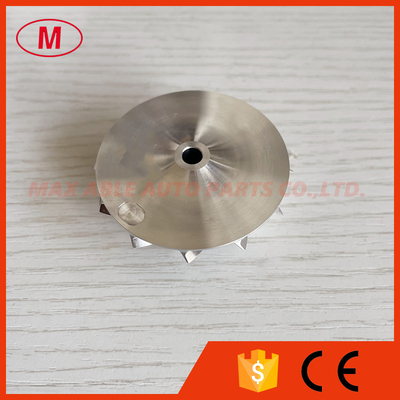

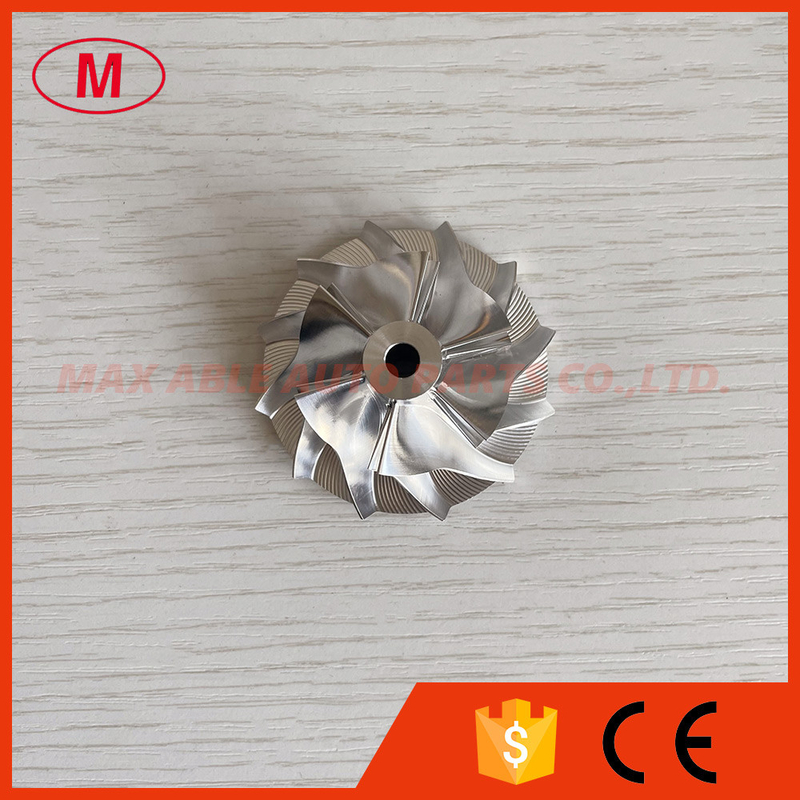

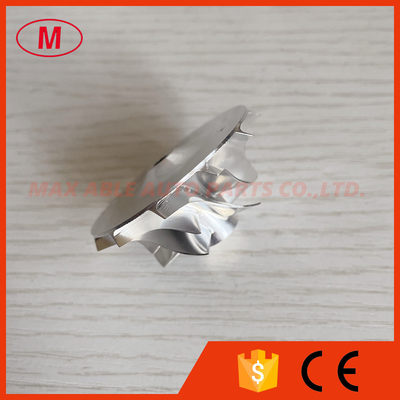

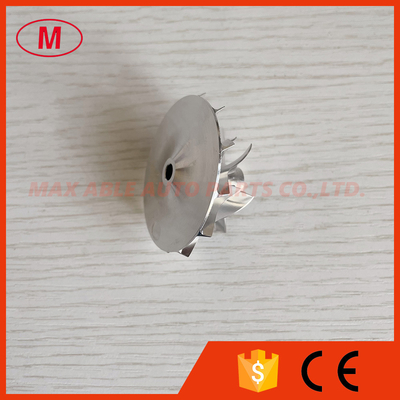

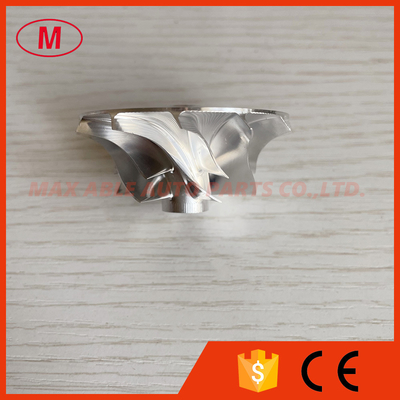

2. GT15-25 34.42/49.00mm 436132-0003 6+6 blades billet/aluminum 2618 turbocharger compressor wheel for 452202/452274/454216/454219/700273/700447/703245/703672/703673/703894/705097/705306/708618/708639/709035/714716/715843/715924/717345/717348/717625/721164/726194/728123/7517683.Size:
Nose diameter:11.77mm
inducer:34.42mm
Exduder:49.00mm
Tapered tip exducer:52.40mm
Tip height:3.94mm
Superback:2.40mm
Overall height:24.89mm
Bore size:5.08mm
bore type:through
Trailing angle:65 degree
Cutback:0.0
Blades height:18.82mm
splitter height:13.75mm
Sp height angle:-7.00
6+6 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.Good quality and competitive price
5.We have many other size ,please send email to me !
ALL the compressor wheels have been balanced.
Skype: maxabledieselparts
Wechat/Whatsapp:+86-18018657719
