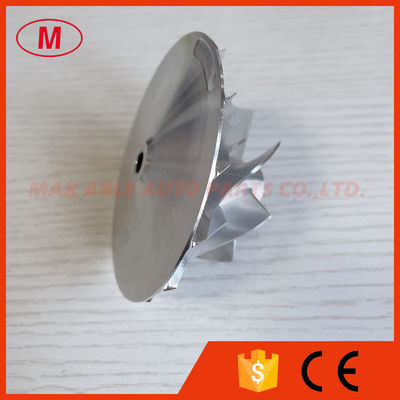

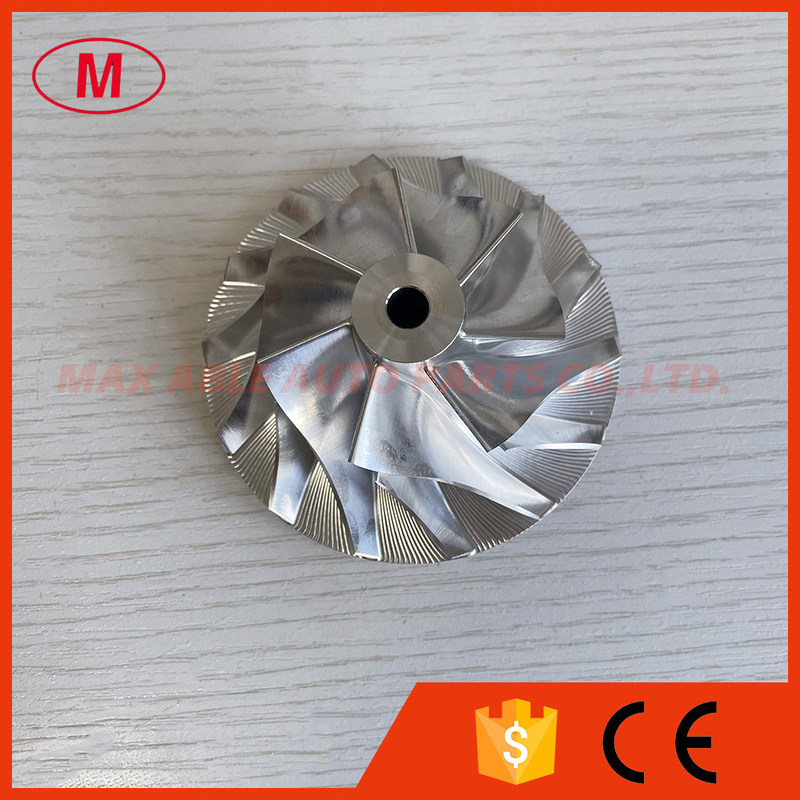

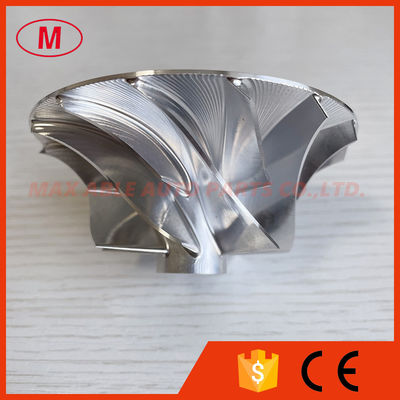

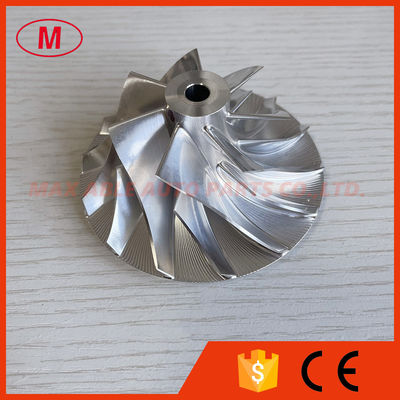

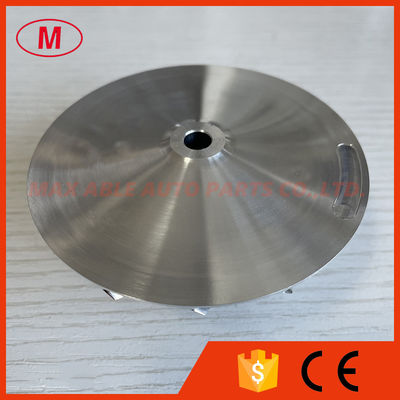

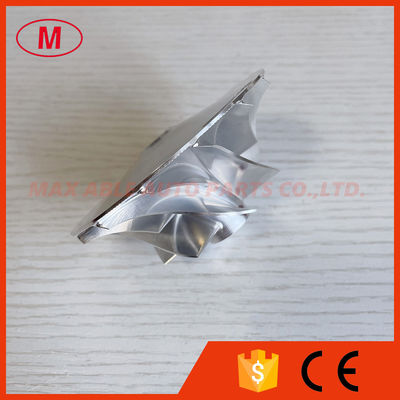

1.Model:HE300VG forward
2.HE300VG 54.00/86.00mm 3599019 (cast), 3788692 (billet) 7+7 blades turbo Billet/milling/aluminum 2618 compressor wheel for 4352191, 4352470 (cast), 5328158 (billet), 3775413, 3775415, 3775417, 3781731, 3781732, 3781733,3789474, 3789475, 3789476, 3796038, 3796039, 3796040, 3798326, 3798326RX, 3798327, 3798327RX,3798328,3798328RX,3798377,379837700,379837700HX, 3798377H, 3798377HX, 3798378, 379837800,379837800H, 3798378H, 3798378HX, 4309305, 4309307, 4309309, 4352193, 4352194, 4352195, 4352471,4352472, 4632166, 5328153, 5328154, 5328155, 170-032-2567, 170-032-3636, 170-032-3762,1700321685,1700322567, 1700323636, 1700323762, 3775414, 3775416, 3777082, 3777083, 3781736, 3781737, 3781743, 3781744, 3781873, 3789479, 3789480, 3789483, 3789487, 3789488, 3796043, 3796044,3796047, 3796051, 3796052, 3798331, 3798332, 3798335, 3798382, 3798383, 3798386, 4309306,4309308, 4309321, 4309322, 4309408, 4352198, 4352199, 4352202, 4352206, 4352207, 4352475,4352476, 4352479, 4352483, 4352484, 5327555, 5327556, 5328159, 5328162
3.Size:
Nose diameter:18.80mm
Inducer:54.00mm
exducer:86.00mm
Tip height:4.80mm
Superback:5.10mm
bore size :7.00mm
bore type:through
Overall height:41.73mm
Cutback:3.5mm
Trailing Angle:40 degree
SP Height angle:0.60
Blades height:31.85mm
Splitter height:17.15mm
7+7 blades forward
Fit for OE compressor housing
Tapered tip Angle:0 degree
Application:
4352191, 4352470 (cast), 5328158 (billet), 3775413, 3775415, 3775417, 3781731, 3781732, 3781733,3789474, 3789475, 3789476, 3796038, 3796039, 3796040, 3798326, 3798326RX, 3798327, 3798327RX,3798328,3798328RX,3798377,379837700,379837700HX, 3798377H, 3798377HX, 3798378, 379837800,379837800H, 3798378H, 3798378HX, 4309305, 4309307, 4309309, 4352193, 4352194, 4352195, 4352471,4352472, 4632166, 5328153, 5328154, 5328155, 170-032-2567, 170-032-3636, 170-032-3762,1700321685,1700322567, 1700323636, 1700323762, 3775414, 3775416, 3777082, 3777083, 3781736, 3781737, 3781743, 3781744, 3781873, 3789479, 3789480, 3789483, 3789487, 3789488, 3796043, 3796044,3796047, 3796051, 3796052, 3798331, 3798332, 3798335, 3798382, 3798383, 3798386, 4309306,4309308, 4309321, 4309322, 4309408, 4352198, 4352199, 4352202, 4352206, 4352207, 4352475,4352476, 4352479, 4352483, 4352484, 5327555, 5327556, 5328159, 5328162
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
