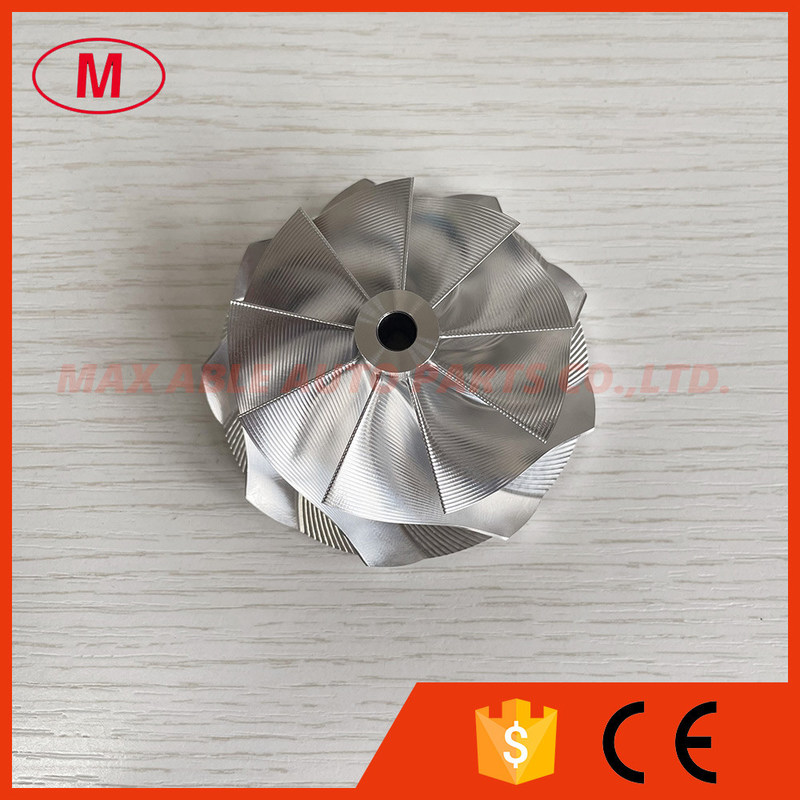

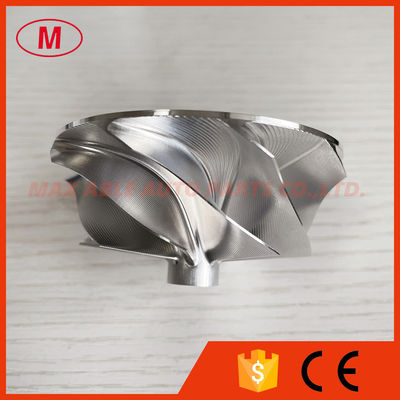

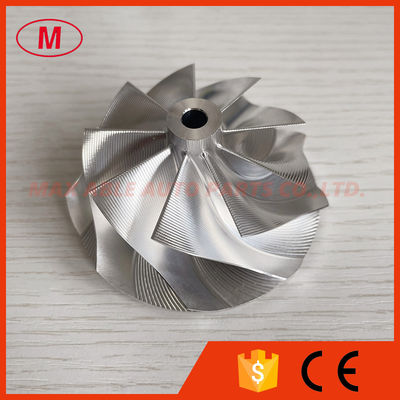

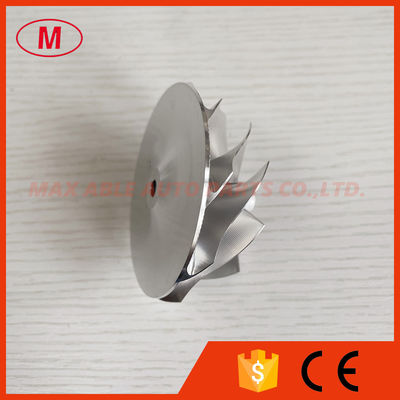

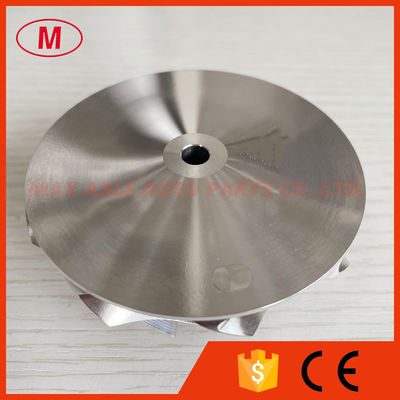

G30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel superback:2.36mm

Brand Name:	NO
Model Number:	G30-770

Contact Now

Detailed Product Description

1. MODEL:G30-770 forward

2.G30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:13.15mm

Inducer:57.52mm

exducer:71.40mm

Tapered tip exducer:73.98mm

Tip height:7.58mm

Superback:2.36mm

bore size :6.00mm

bore type:through

Overall height:35.84mm

Cutback:6.70mm

Trailing Angle:35 degree

SP height angle:0.00

Splitter height:0.00

Blade height:27.60mm

9+0 blades forward

Fit for OE compressor housing

Tapered tip Angle:11.4 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement ,the minimun order is 5pcs

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

G30-770 57.52/71.40mm 9+0 blades point milling milling/aluminum 2618/billet compressor wheel superback:2.36mm
