| Place of Origin: | CHINA |
| Model Number: | TF035 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | BOSCH PACKING |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT/western union/paypal |
| Supply Ability: | 1000 |
1. MODEL:TF035 forward

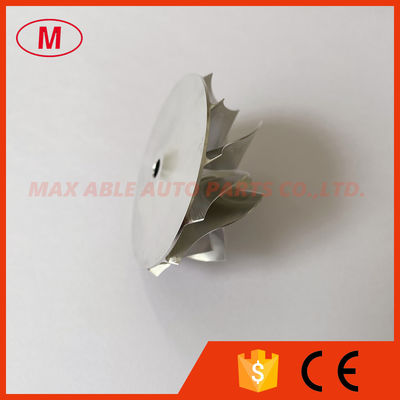

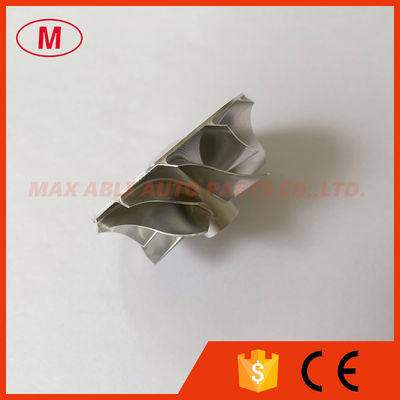

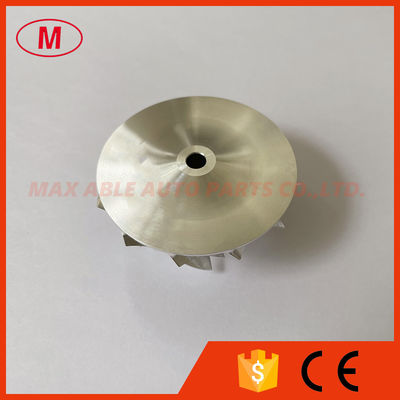

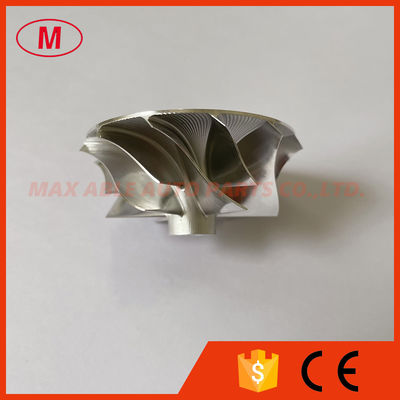

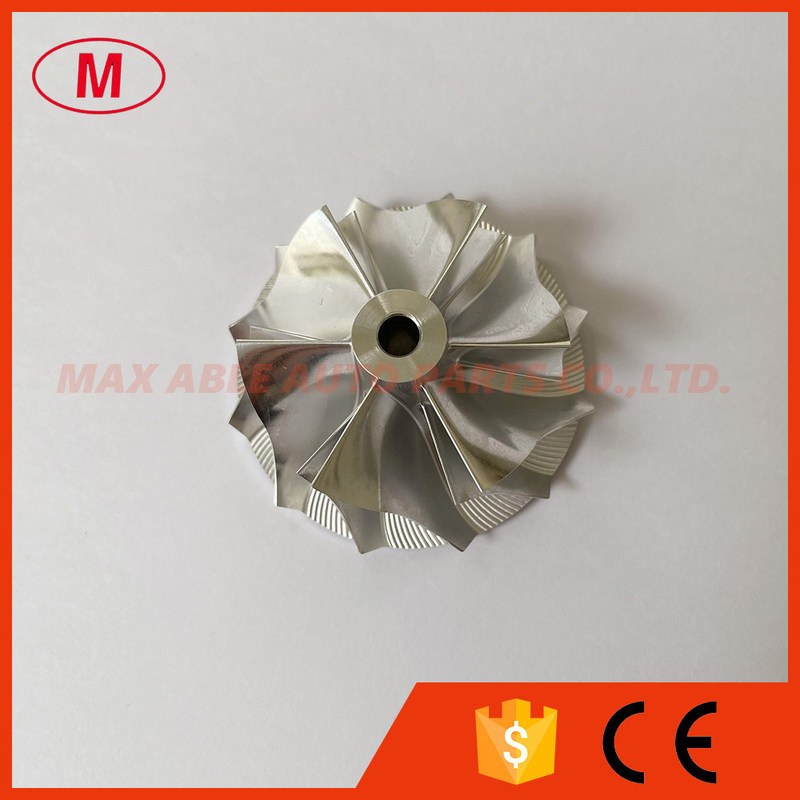

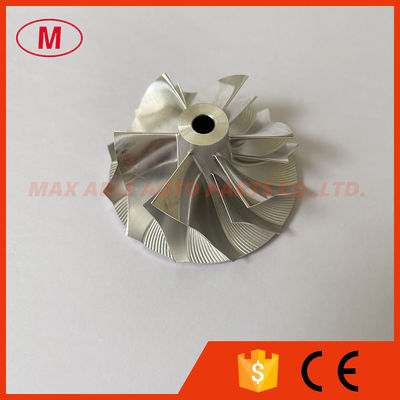

2.TF035 6+6 blades 42.00/51.00mm high performance Turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:11.53mm
Inducer:42.00mm
Exducer:51.00mm
Tapered tip exducer:54.11mm
Tip height:3.69mm
Superback:1.90mm
Overall height:25.30mm
bore size :5.00mm
bore type:through
Trailing angle:45 degree
Cutback:0.0
SP height angle:-4.70
blade height:18.90mm
Splitter height:13.50mm
6+6 Blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced
we can also produce as your requirement.
