| Brand Name: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

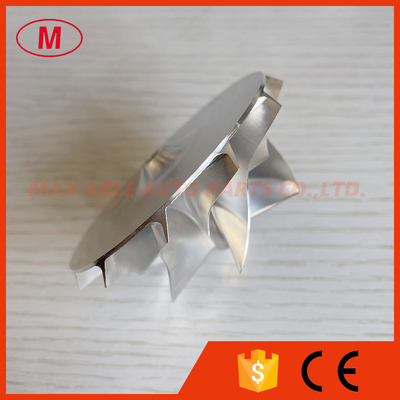

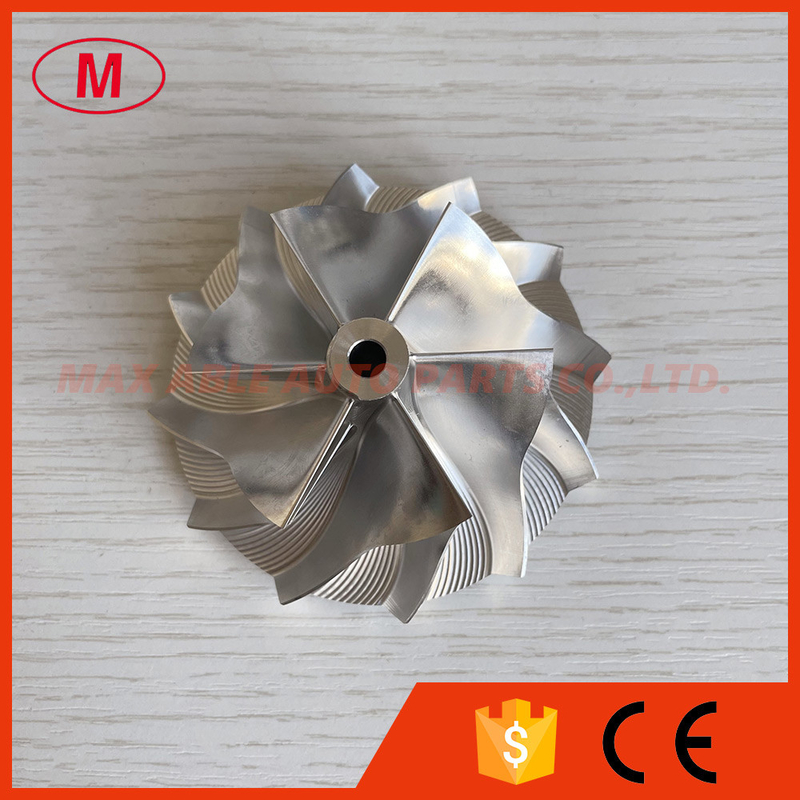

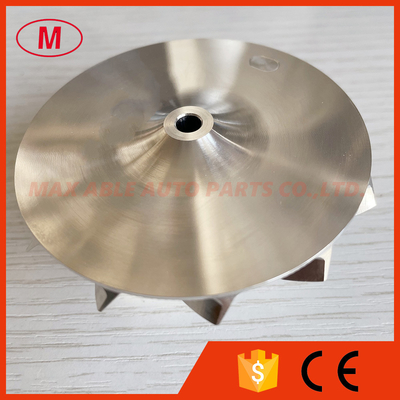

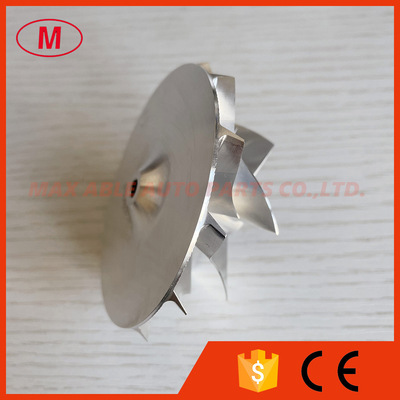

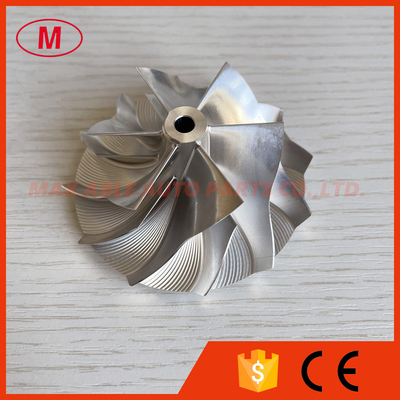

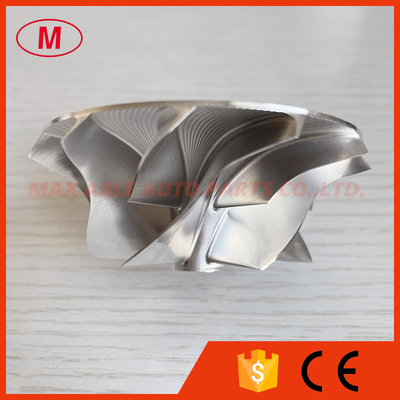

1.GT15-25 reverse 51.00/71.00mm 6+6 blades high performance milling/aluminum 2618/billet compressor wheel
2.Size:
Nose Diameter:11.40mm
inducer:51.00mm
Exducer:71.00mm
Tapered tip exducer:76.20mm
Tip height:5.50mm
Superback:3.68mm
Overall height:32.50mm
Bore size:5.08mm
bore type:through
Trailing Angle:60 degree
Cutback:0.0mm
Blades height:26.79mm
Splitter height:15.00mm
Sp height angle:0.00
6+6 blades
reverse rotation
Tapered tip Angle:30 degree
