| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF55 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1.Model:RHF55 Forward rotation

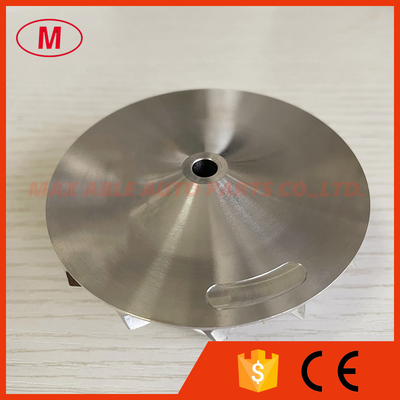

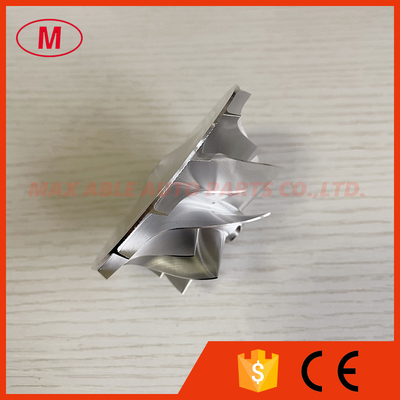

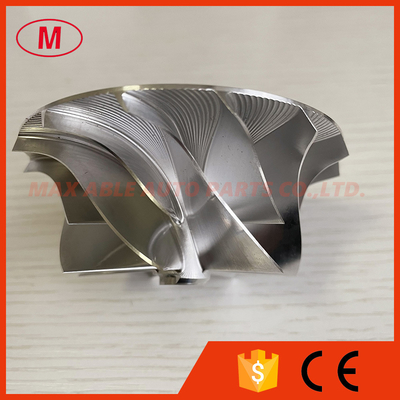

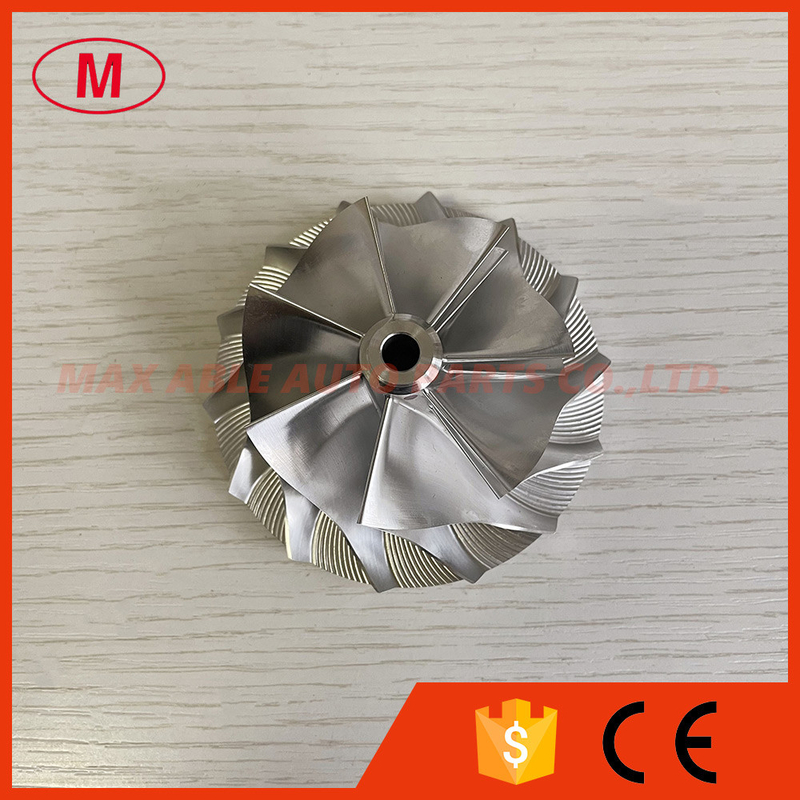

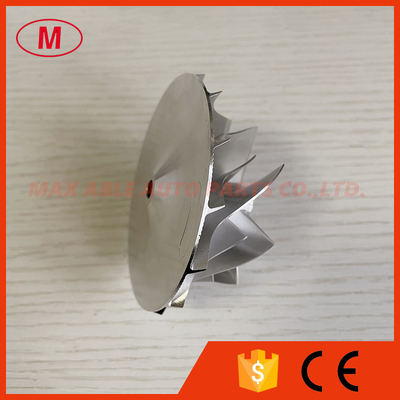

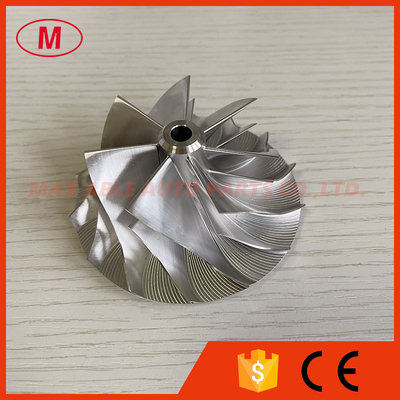

2. RHF55 55.50/76.13mm 7+7 blades billet/milling/aluminum 2618 turbo compressor wheel
3.Size:
Nose diameter:13.48mm
Inducer:55.50mm
Exducer:76.13mm
Tapered tip exducer:78.14mm
Tip height:5.02mm
Superback:3.68mm
Overall height:35.55mm
Bore size:6.10mm
bore type:through
Trailing angle:60 DEGREE
Cutback:-3.0
SP Height angle:-5.80
Blades height:29.74mm
Splitter height:20.10mm
7+7 blades
forward rotation
Tapered tip angle:14 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price.
5.if you want to know more details ,please send email to me !
