RHF5HB 9+0 blades 51.00/61.98mm point milling high performance Turbocharger milling/aluminum 2618/billet compressor whee

Model Number:	RHF5HB

Contact Now

Detailed Product Description

Size:	51.00/61.98mm	Type:	Turbochargers

1.Model: RHF5HB forward

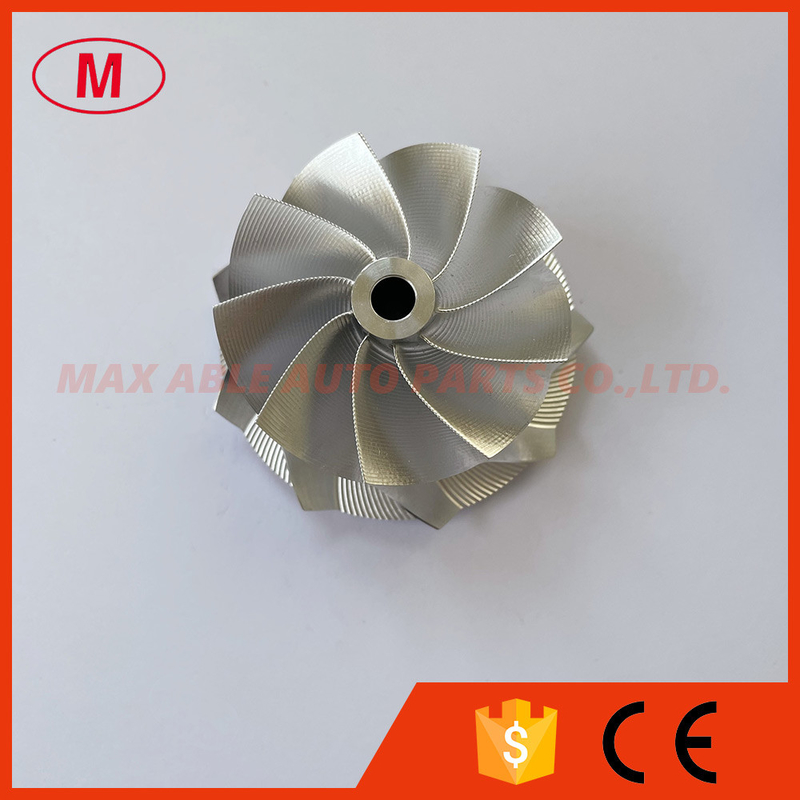

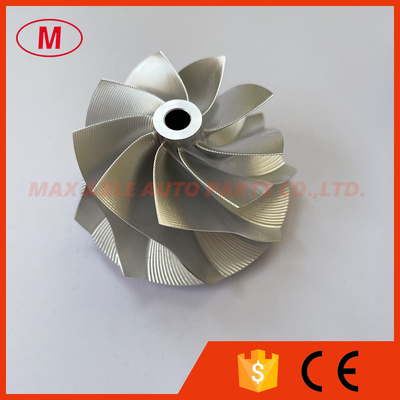

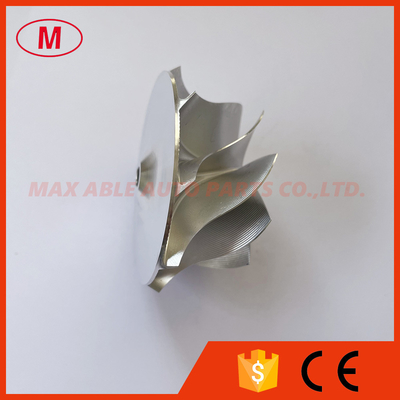

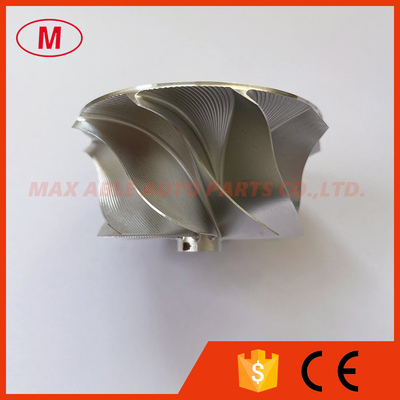

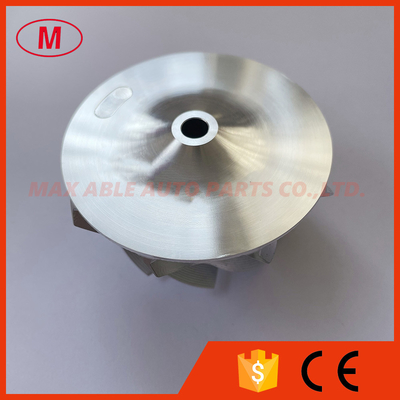

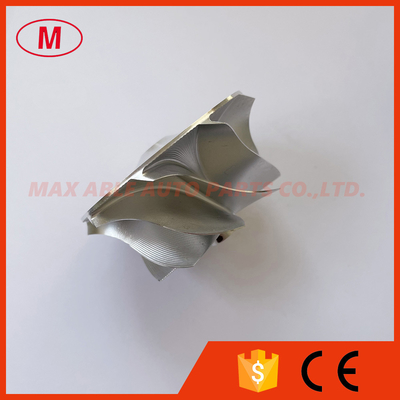

2.RHF5HB 9+0 blades 51.00/61.98mm point milling high performance Turbocharger milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:11.42mm

Inducer:51.00mm

exducer:61.98mm

Tapered tip exudcer:66.43mm

Tip height:4.85mm

Superback:3.71mm

bore size :6.10mm

bore type:through

Overall height:36.01mm

Cutback:0.0mm

Trailing Angle:45 degree

Blade height:28.90mm

Sp height angle:0.00

Splitter height:0.00mm

9+0 blades forward

It is custom size ,please check carefully before buying.

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

RHF5HB 9+0 blades 51.00/61.98mm point milling high performance Turbocharger milling/aluminum 2618/billet compressor whee
