| Model Number: | GTX2860R |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 47.10/60.13mm | Type: | Turbochargers |
|---|

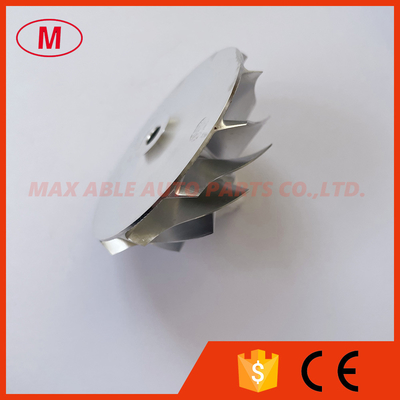

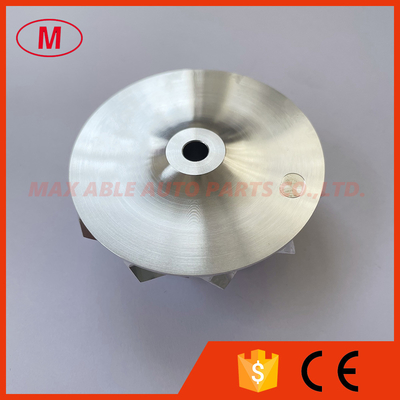

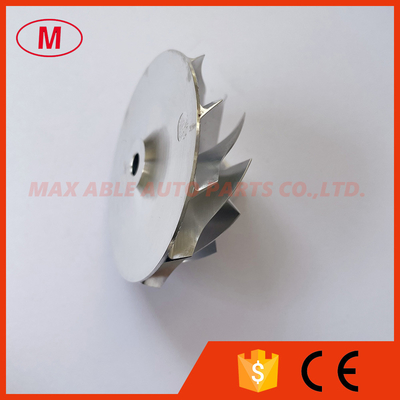

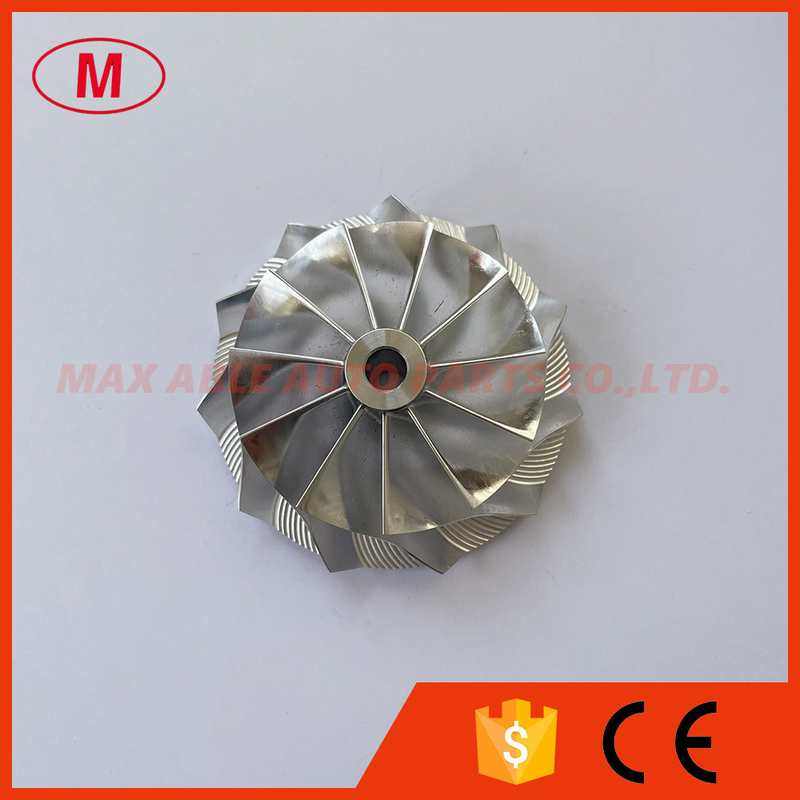

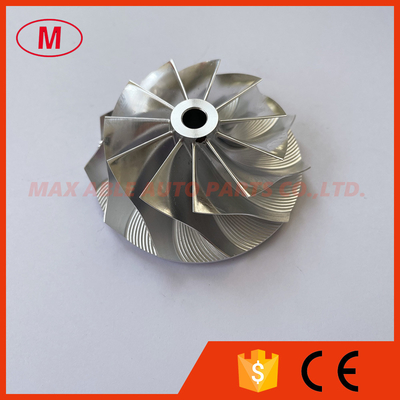

1.Model:GTX2860R forward
3.Size:
Nose diamter:11.63mm
inducer:47.10mm
Exduder:60.13mm
Tapered tip exducer:63.11mm
Tip height:5.60mm
Superback:2.30mm
Overall height:24.52mm
bore size :6.00mm
bore type:through
Trailing angle:45 degree
Cutback:6.0
SP Height Angle:0.00
Blades height:20.13mm
Splitter Height:0.00mm
11+0 blades
Forward rotation
Tapered tip angle:18 degree
Fit for OE compressor housing
Application:
739548
446179-0066
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have
