| Brand Name: | NO |
| Model Number: | S200 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 60.00/83.56mm | Type: | Turbochargers |
|---|
1.Model:S200 forward

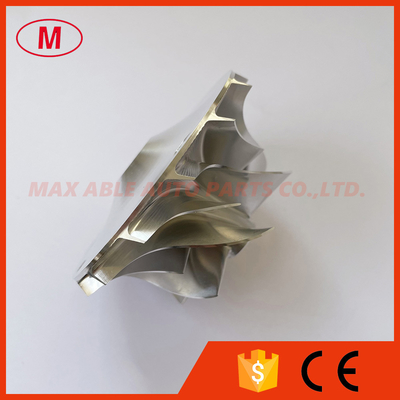

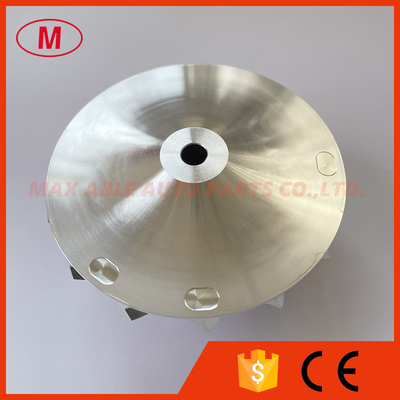

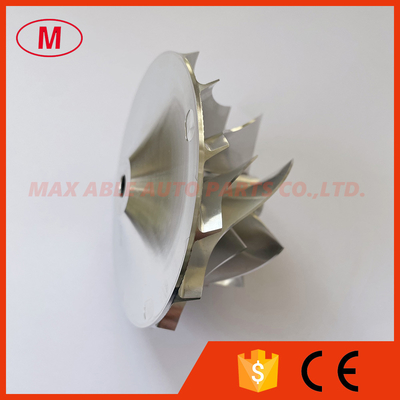

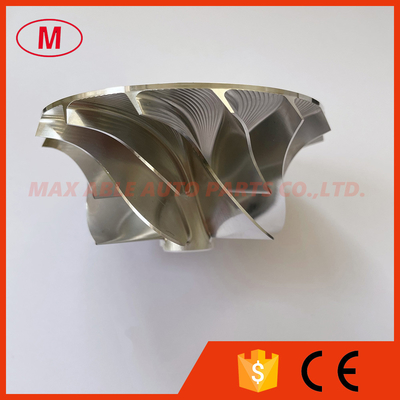

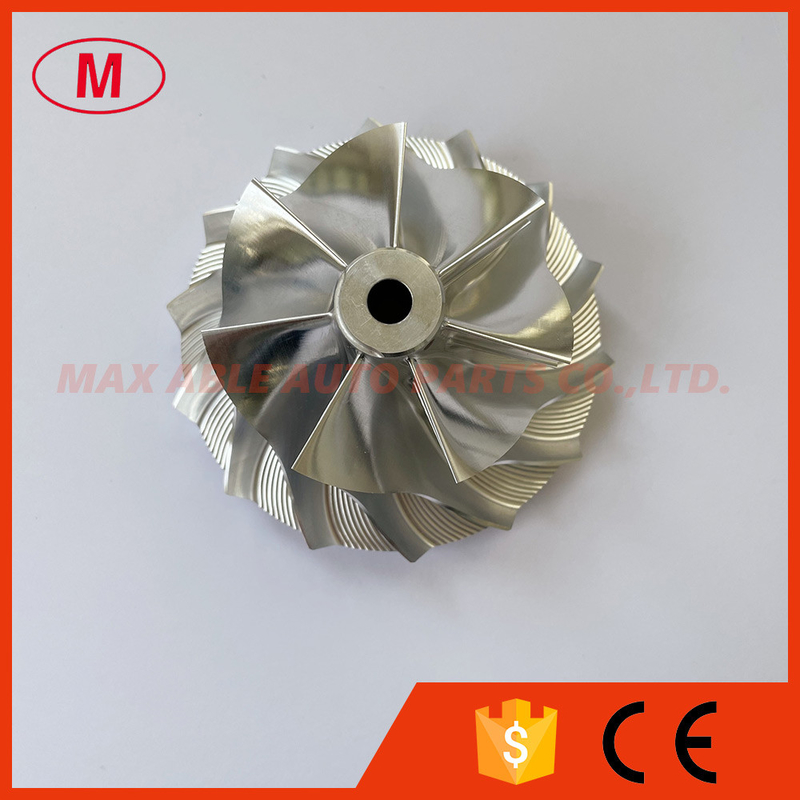

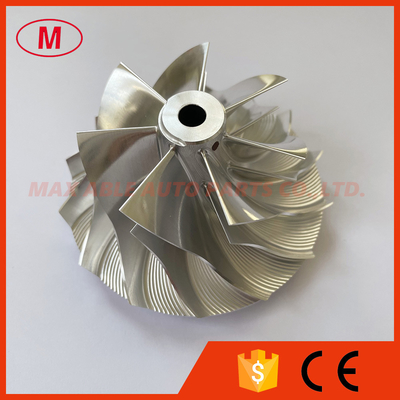

2.S200 60.00/83.56mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:17.36mm
Inducer:60.00mm
Exducer:83.56mm
Tapered tip exducer:87.21mm
Tip height:6.81mm
Superback:7.00mm
Overall height:46.50mm
Bore size:7.00mm
bore type:through
Trailing angle:60 degree
Cutback:0.0mm
Splitter height:23.50mm
SP height angle:-5.00
Blade height:35.68mm
7+7 blades
Tapered tip angle:18 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
All the compressor wheels have been balanced.
