GT5533 94.00/133.37mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel

Contact Now

Detailed Product Description

1. MODEL:GT5533 forward

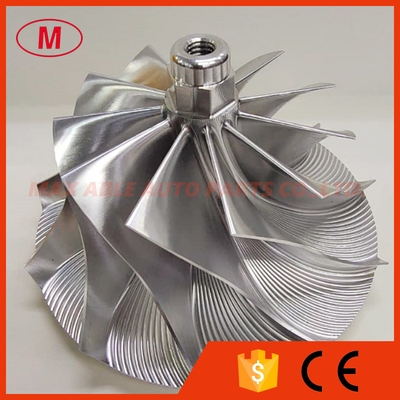

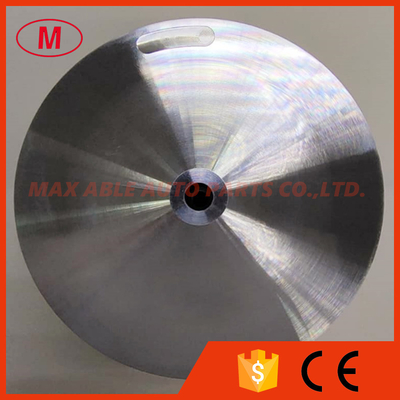

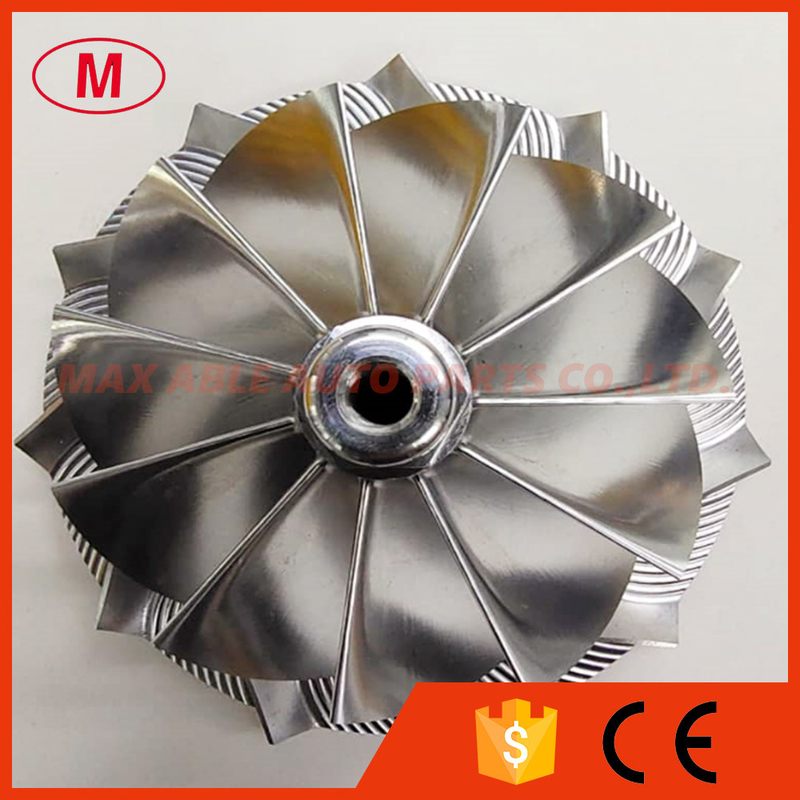

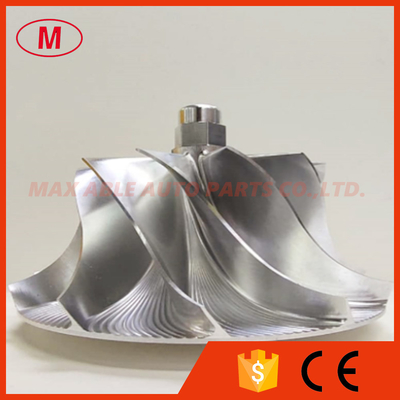

2.GT5533 94.00/133.37mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:22.50mm

Inducer:94.00mm

exducer:133.37mm

Tapered tip exducer:138.47mm

Tip height:9.35mm

Superback:7.66mm

bore size :9.50mm

Overall height:81.20mm

Cutback:5.0mm

Trailing Angle:50 degree

Bore type:Threaded-M9x1.5-LHT

SP height angle:0.00

Blades height:53.79mm

Splitter height:0.00mm

11+0 blades forward

It is custom size ,please check carefully before buying.

Tapered tip Angle:18 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We will produce as your requirment ,the minimun order is 5pcs

All the compressor wheels have been balanced.
