| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | GTX5020R GEN II |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:GTX5020R GEN II forward

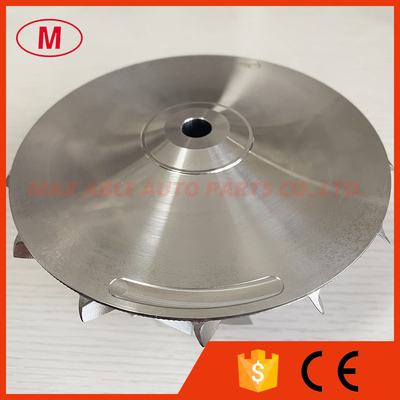

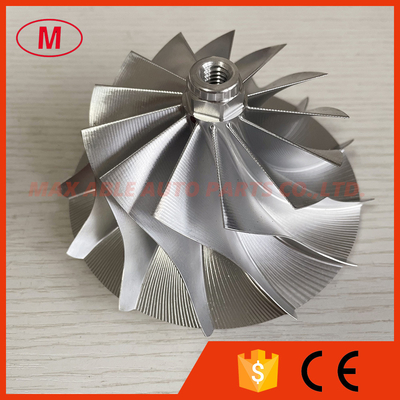

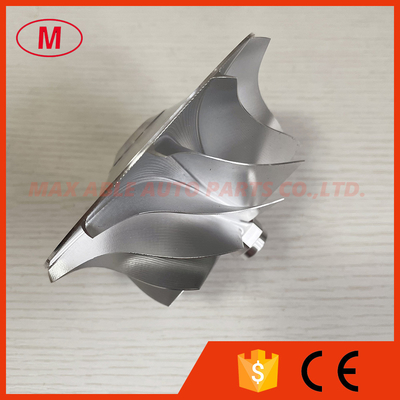

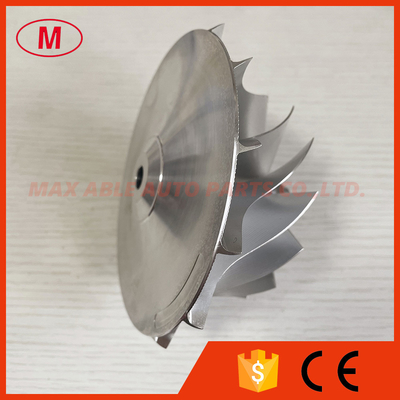

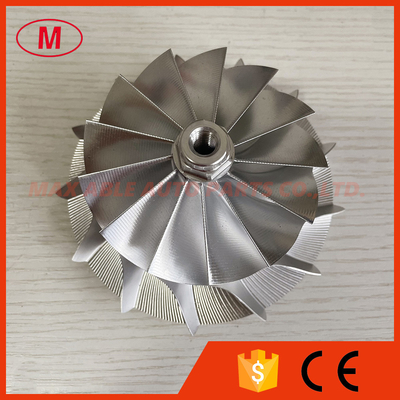

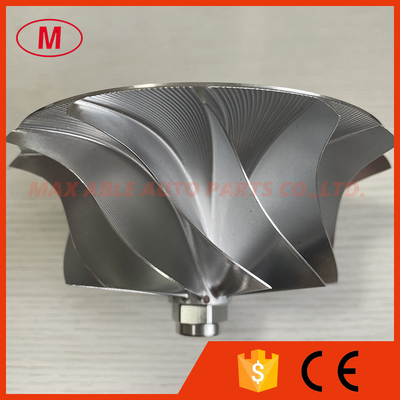

2.GTX5020R GEN II 150401 88.57/119.96mm 13+0 blades point milling turbo billet/milling/aluminum 2618 compressor wheel for 851285-5020S
3.Size:
Nose diameter:21.20mm
inducer:88.57mm
Exduder:119.96mm
Tapered tip exducer:128.40mm
Tip height:6.30mm
Superback:8.55mm
Overall height:69.40mm
bore size :9.50mm
bore type:Threaded-M9x1.5-LHT
Trailing Angle:70 degree
Cutback:7.4mm
Blades height:48.40mm
Splitter height:0.00mm
Sp height angle:0.00
13+0 blades
Forward rotation
Tapered tip angle:39 degree
It is custom size ,please check carefully before buying.
Application:
851285-5020S
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.the minimun order is 5pcs
