| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:TD05H FORWARD

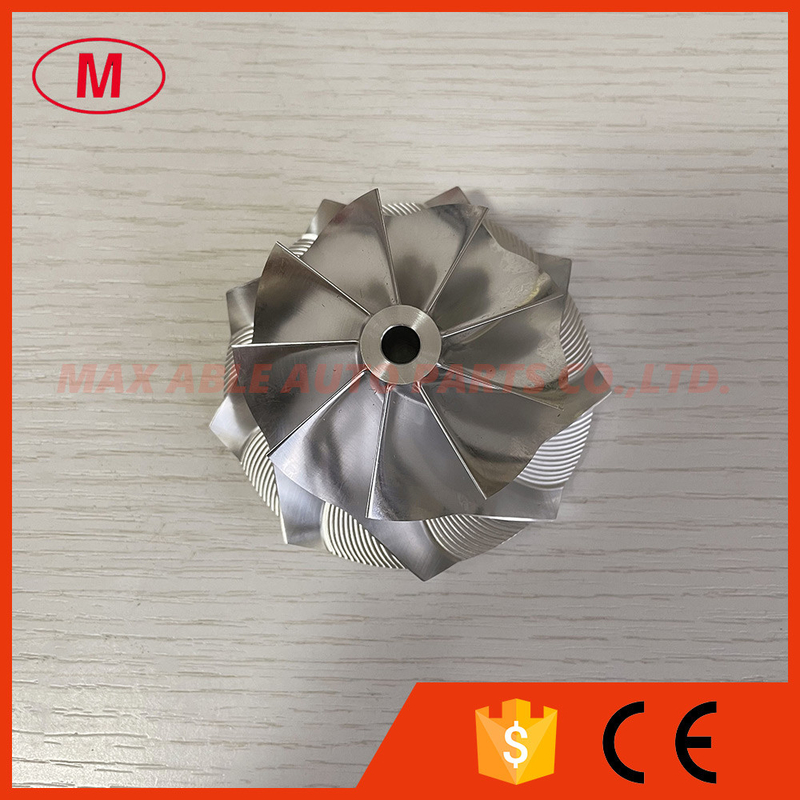

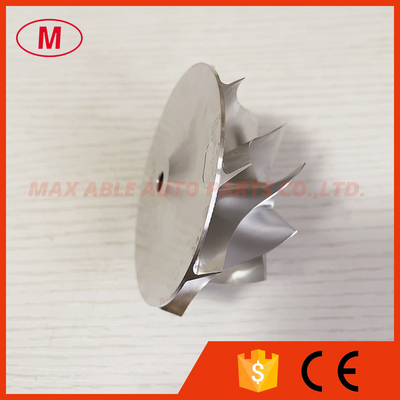

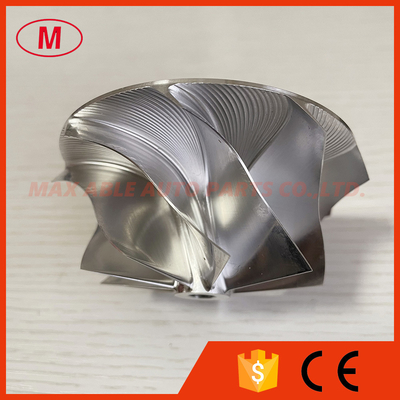

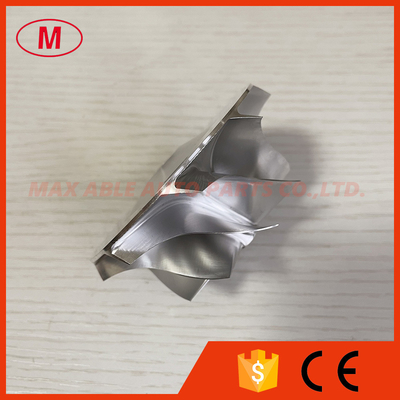

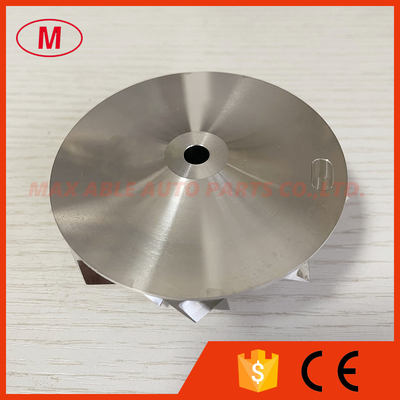

2. TD05H 58.00/76.13mm 9+0 blades turbo Billet/Milling/aluminum 2618 compressor wheel
3.Size:
Nose Diameter:13.48mm
inducer:58.00mm
Exducer:76.13mm
Tapered tip exducer:80.49mm
Tip height:7.72mm
Overall height:37.82mm
Superback:2.90mm
Bore size:6.50mm
bore type:through
Trailing angle:50 degree
Cutback:6.5mm
SP height angle:0.00
Blades height:33.82mm
Splitter height:0.00mm
9+0 blades
Forward rotation
Tapered tip angle:18 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
We have more size ,if you want ,please don't hesitate to contact me.
