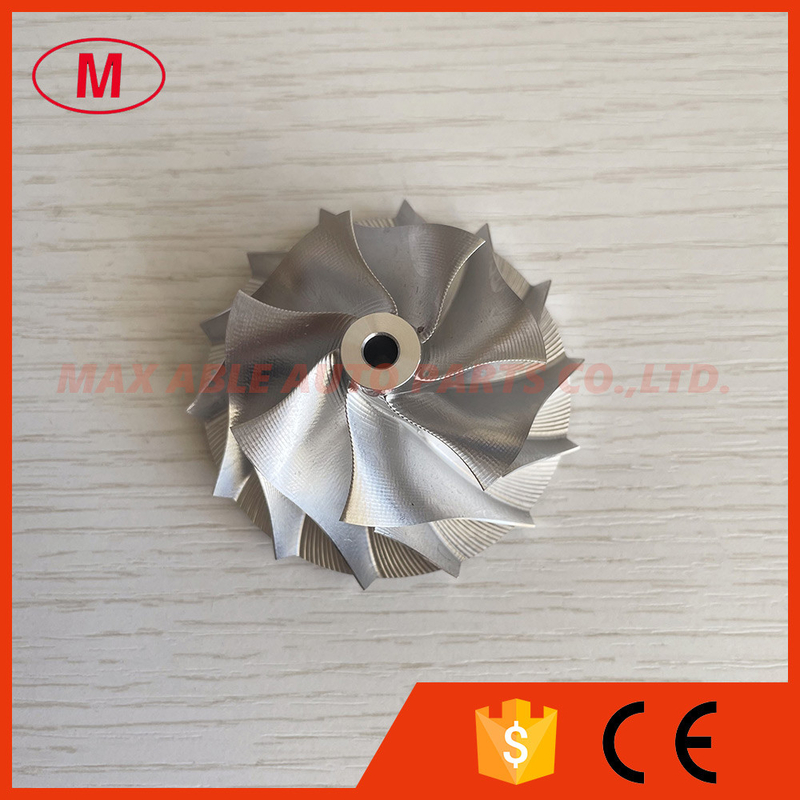

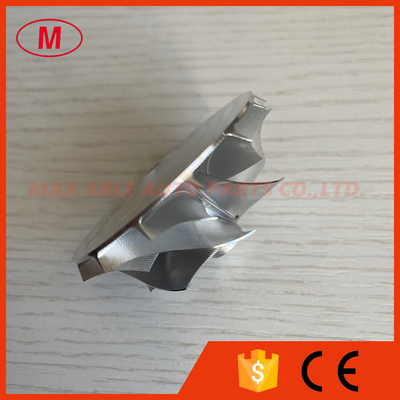

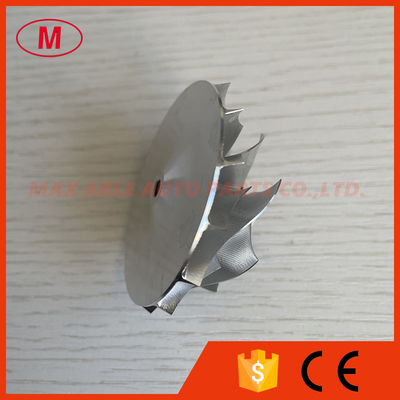

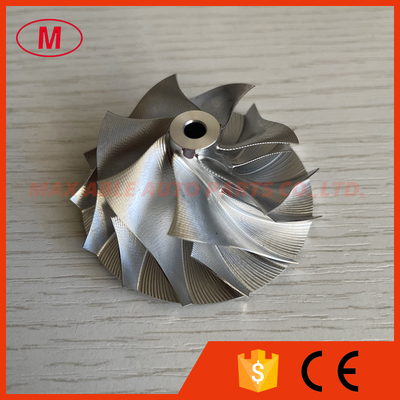

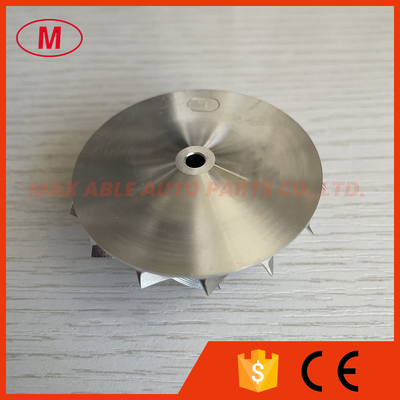

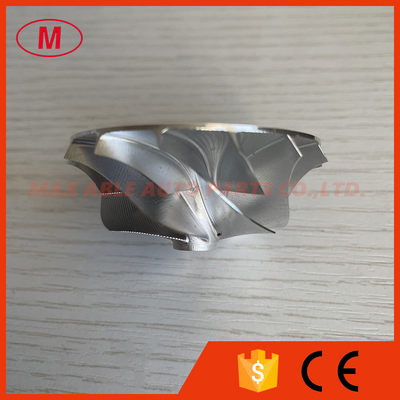

TD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheel

TD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheel

    • TD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheel
    • TD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheel
    • TD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheel
    • TD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheel
    • TD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheel
    • TD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheel
    • TD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheel

    Product Details:

    Place of Origin: CHINA
    Brand Name: NO
    Model Number: TD03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description

    1.Model:TD03 forward
    2.TD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance Design turbo Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:9.50mm
    Inducer:39.98mm
    exducer:52.00mm
    Tapered tip exducer:55.39mm
    Tip height:4.40mm
    Superback:1.90mm
    bore size :4.00mm
    bore type:through
    Overall height:24.40mm
    Cutback:3.5mm
    Trailing Angle:75 degree
    Blades height:18.00mm
    Splitter height:11.00mm
    SP height angle:-5.00
    7+7 blades forward
    It is custom size ,please check carefully before buying.
    Tapered tip Angle:26.5 degree

    4.High quality and competitive price.
    5.if you want more details, please send email to me.
    We can produce as your requirment ,the minimum order is 5pcs
    All the compressor wheels have been balanced.
    Skype: maxabledieselparts
    Wechat/whatsapp:+ 86-18018657719
    TD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheel
    TD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheelTD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheelTD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheelTD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheelTD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheelTD03 39.98/52.00mm 7+7 blades Point Milling_Snake Curve,Twisted Blade design, Performance turbo Billet compressor wheel
