| Place of Origin: | CHINA |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GTX3582 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GTX3582 forward

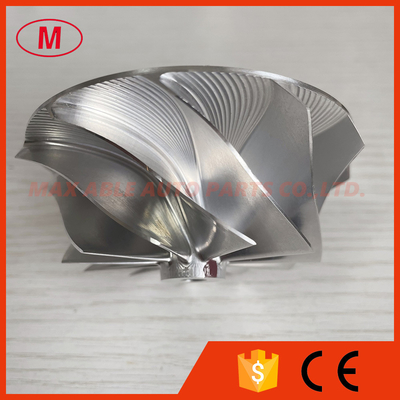

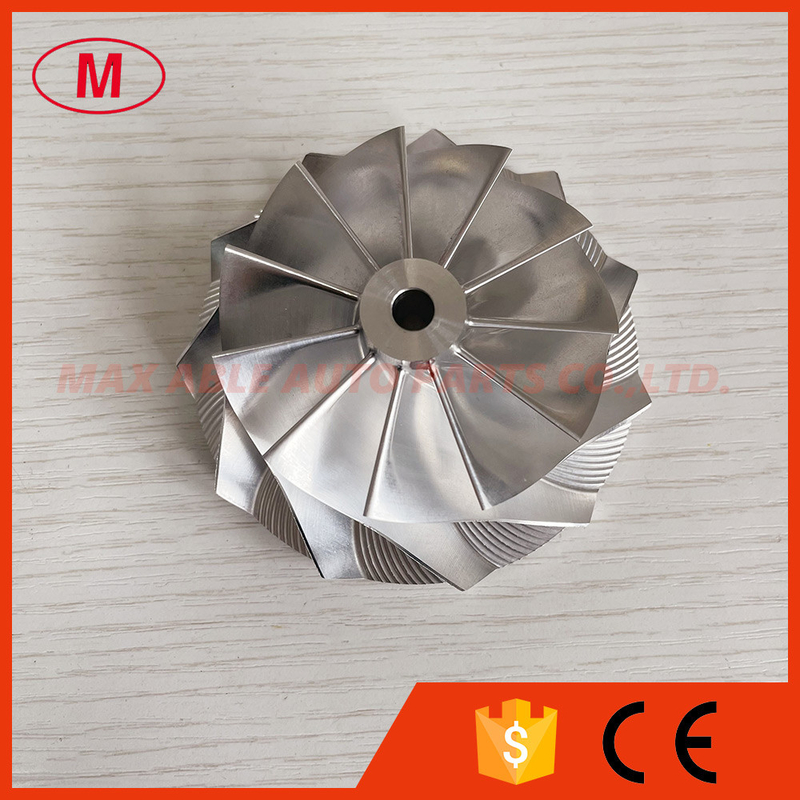

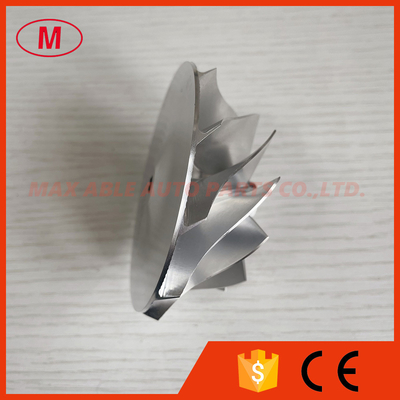

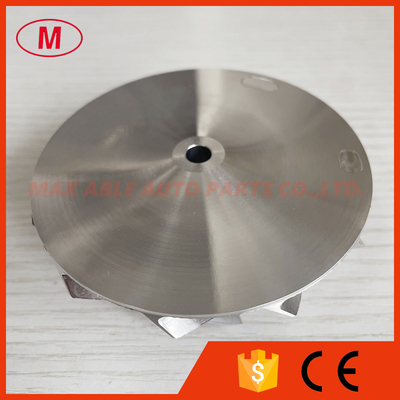

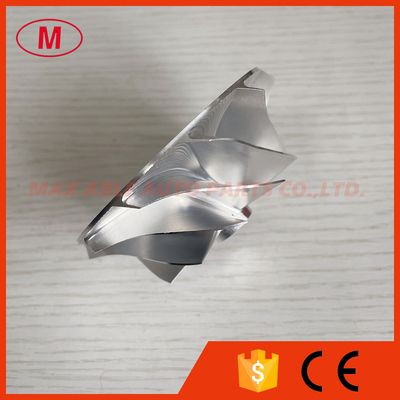

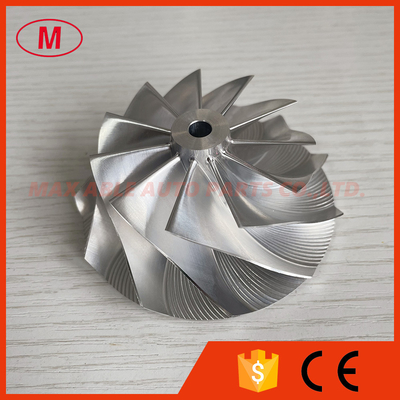

2. GTX3582 forward 9833-2 62.45/82.36mm 11+0 blades turbocharger milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:16.07mm
inducer:62.45mm
Exducer:82.36mm
Tapered tip exducer:86.03mm
Tip height:6.65mm
Superback:2.35mm
Overall height:35.84mm
Bore size:6.36mm
Bore type:through
Trailing angle:45 degree
Cutback:0.0mm
SP Height angle:0.00
Blades height:29.75mm
Splitter height:0.00mm
11+0 blades
forward rotation
Tapered tip angle:18 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
