| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1.Model:GT15-25 FORWARD

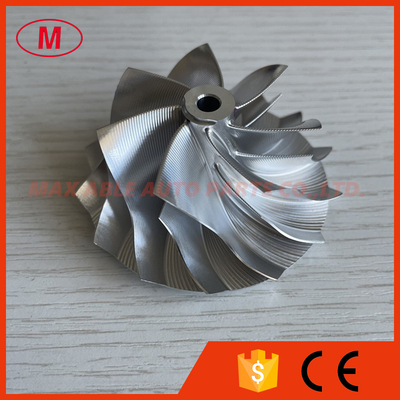

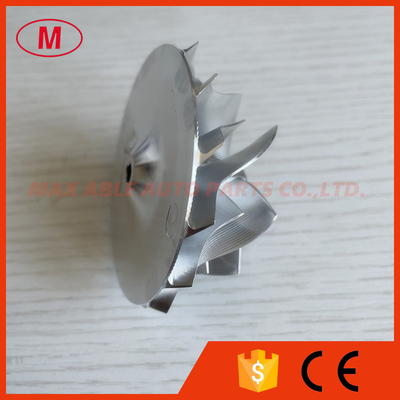

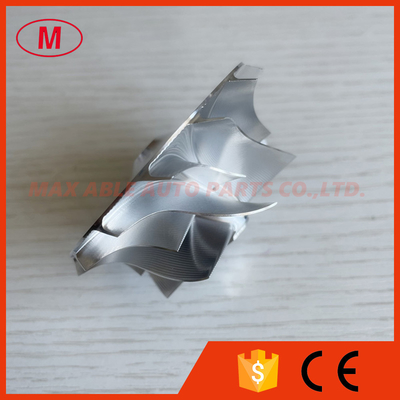

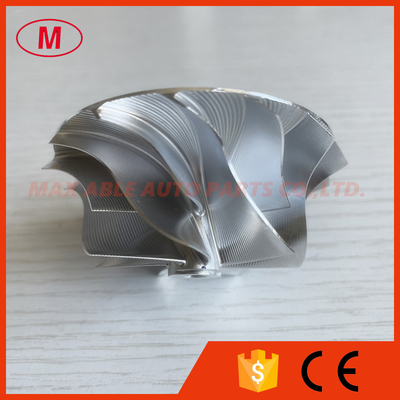

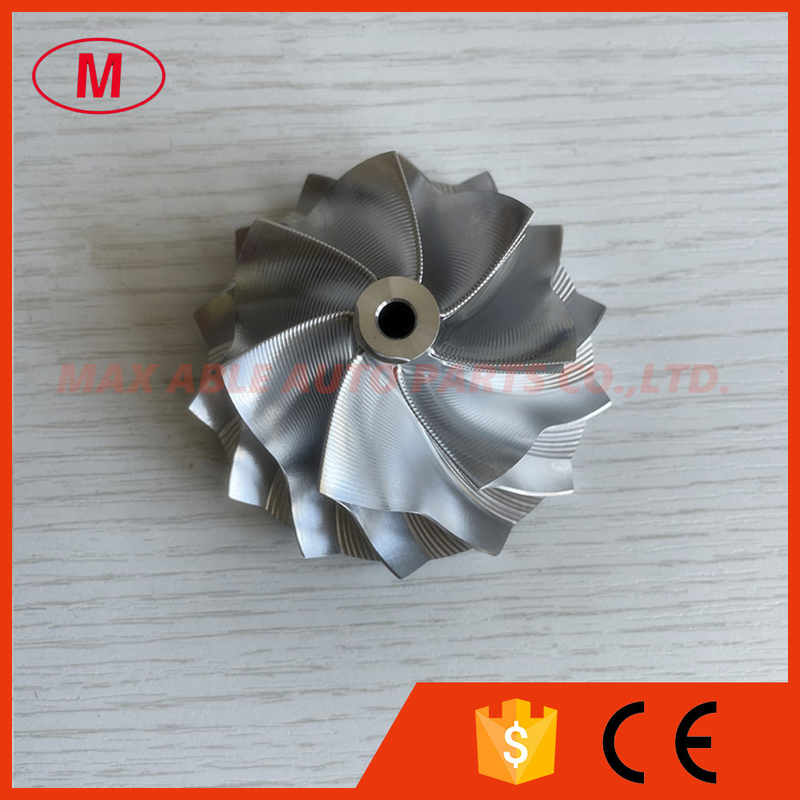

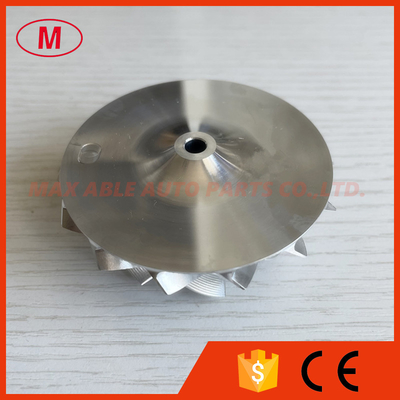

2. GT15-25 point milling 50.20/65.00mm 7+7 Blades 702549-0008HF V1 high performance air curve turbo billet/aluminum 2618/Milling compressor wheel
3.Size:
Nose diameter:11.98mm
Inducer:50.20mm
Exducer:65.00mm
Tapered tip exducer:69.83mm
Tip height:5.19mm
Trailing angle:45 degree
Superback:3.68mm
Overall height:32.28mm
Bore:5.08mm
bore type:through
Cutback:1.0mm
SP Height angle:-4.50
Blades height:26.30mm
Splitter height:17.10mm
7+7 blades
Tapered tip angle:30 degree
Forward rotation
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
6.Application:
702549-0008HF V1
All the compressor wheels have been balanced.
