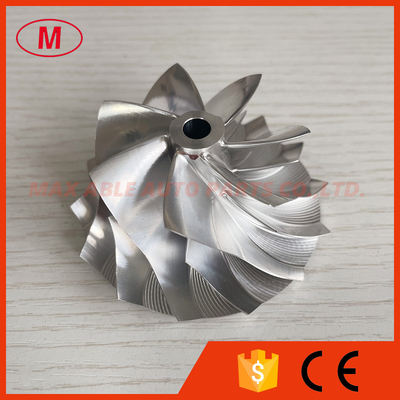

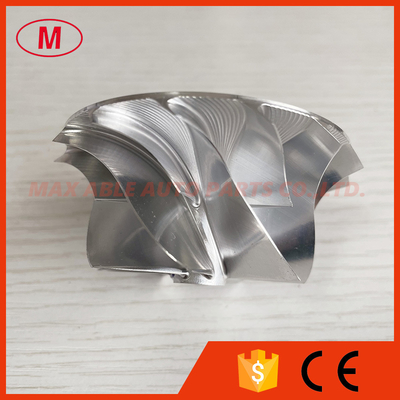

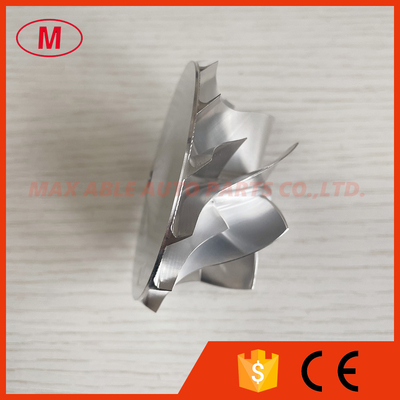

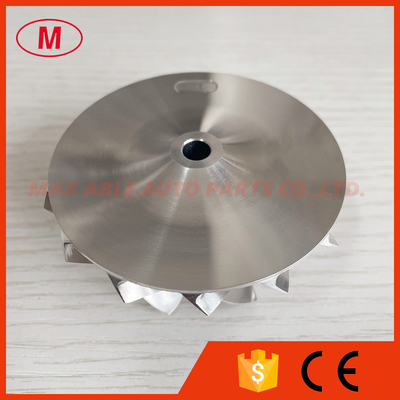

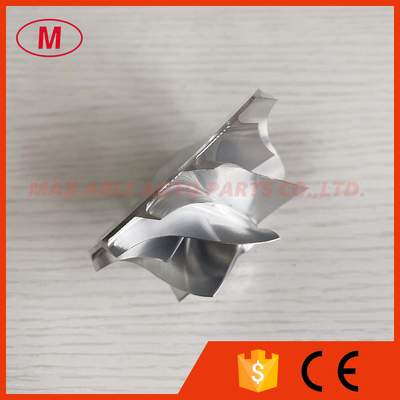

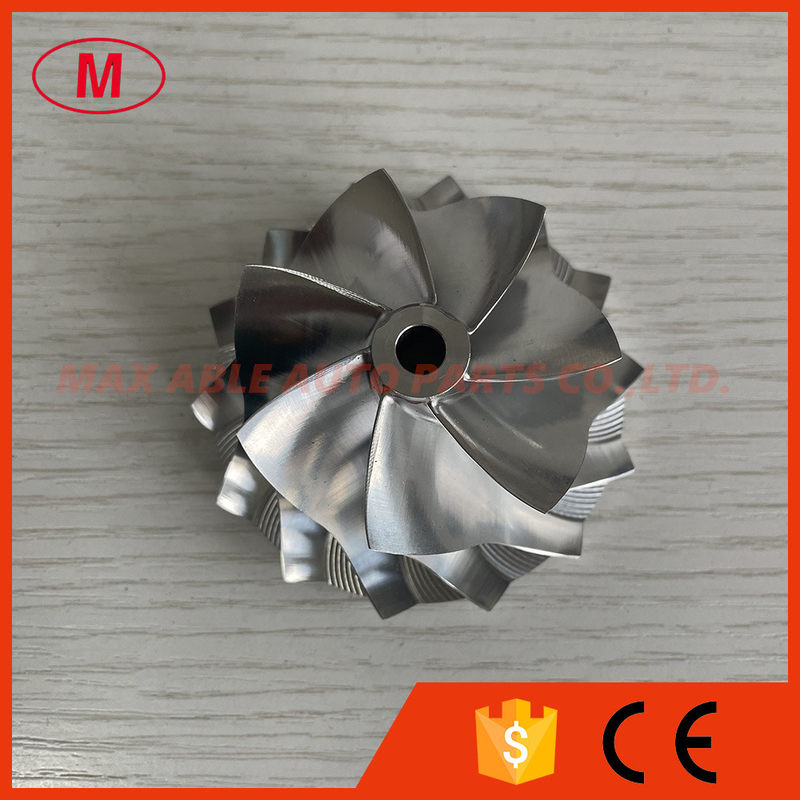

TD05H 20G 49179-43400 52.56/68.01mm 7+7 blades high performance LEP style turbo aluminum 2618/billet compressor wheel

Minimum Order Quantity:	1PC
Price:	DISCUSS
Packaging Details:	neutral packing
Delivery Time:	3-7 DAYS
Payment Terms:	T/T, Western Union, MoneyGram,PAYPAL
Supply Ability:	1000PCS

Contact Now

Detailed Product Description

1.Model:TD05H 20G forward

2.TD05H 20G 49179-43400 52.56/68.01mm 7+7 blades high performance LEP style turbo billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:12.80mm

Inducer:52.56mm

Exducer:68.01mm

Tapered tip exducer:73.05mm

Tip height:5.37mm

Superback:2.90mm

Overall height:35.00mm

Bore size:6.50mm

bore type:through

Trailing angle:45 degree

Cutback:0.00mm

SP Height angle:-5.00

Blade height:30.10mm

Splitter height:16.00mm

7+7 blades

forward rotation

Tapered tip angle:30 degree

It is for OE compressor housing

4.High quality ,competitive price and good service.

5.We can also produce as your requirement.

All the compressor wheels have been balanced.

6.If you want more details, please send email to me or talk to me online.

We will try our best to meet your needs.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

TD05H 20G 49179-43400 52.56/68.01mm 7+7 blades high performance LEP style turbo aluminum 2618/billet compressor wheel
