| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | S400 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:S400 forward

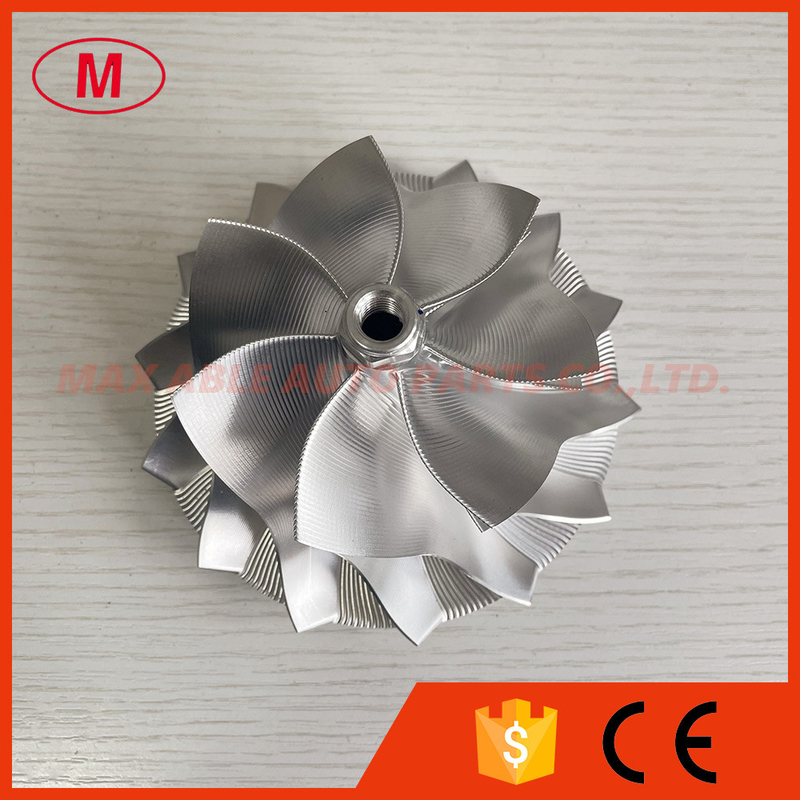

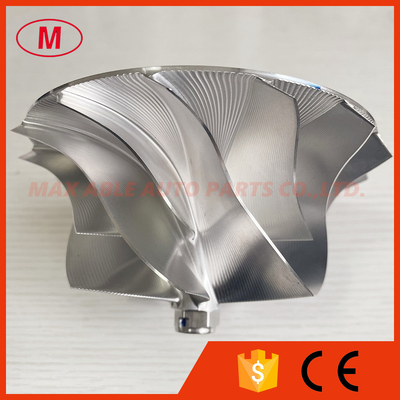

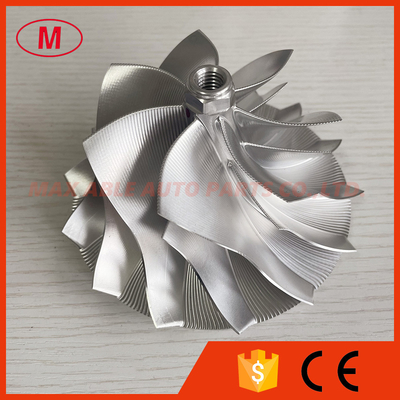

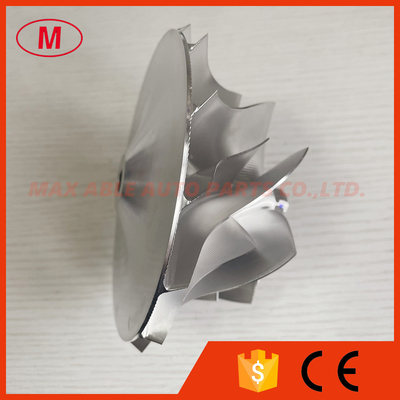

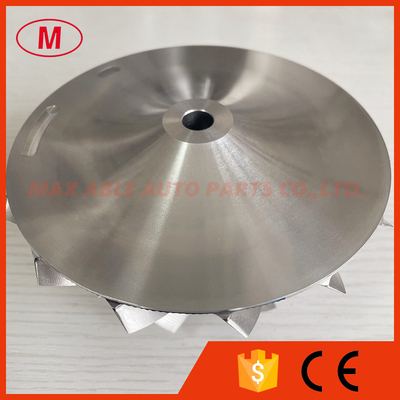

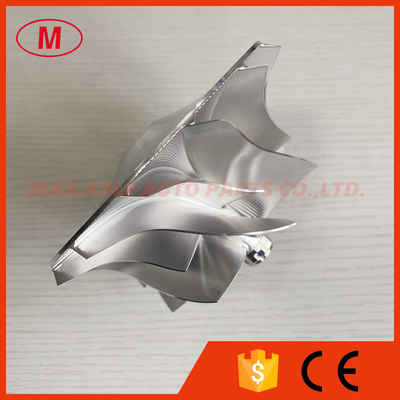

2. S400 88.80/122.00mm 7+7 blades Point Milling_Inverse Curve, Performance Design turbo milling/Aluminum 2618/billet compressor wheel
3.Size:
Nose Diameter:17.50mm
inducer:88.80mm
Exducer:122.00mm
Tapered tip exducer:131.00mm
Tip height:7.50mm
Superback:8.46mm
Overall height:74.00mm
Bore size:10.00mm
Bore type:Threaded-M10x1.5LHT
Trailing angle:45 degree
Cutback:6.0mm
Splitter height:36.00mm
SP height angle:-1.80
Blades height:55.40mm
7+7 BLADES
forward rotation
Tapered tip angle:36.9 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.We have many size.
All the compressor wheel have been balanced.
