1.Model:B03G Forward

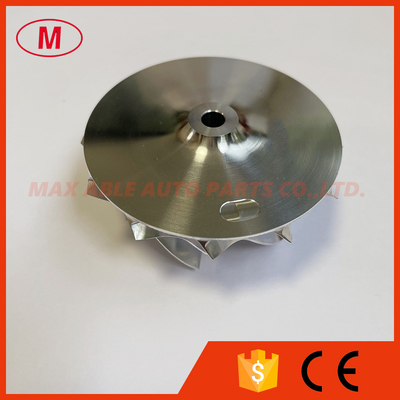

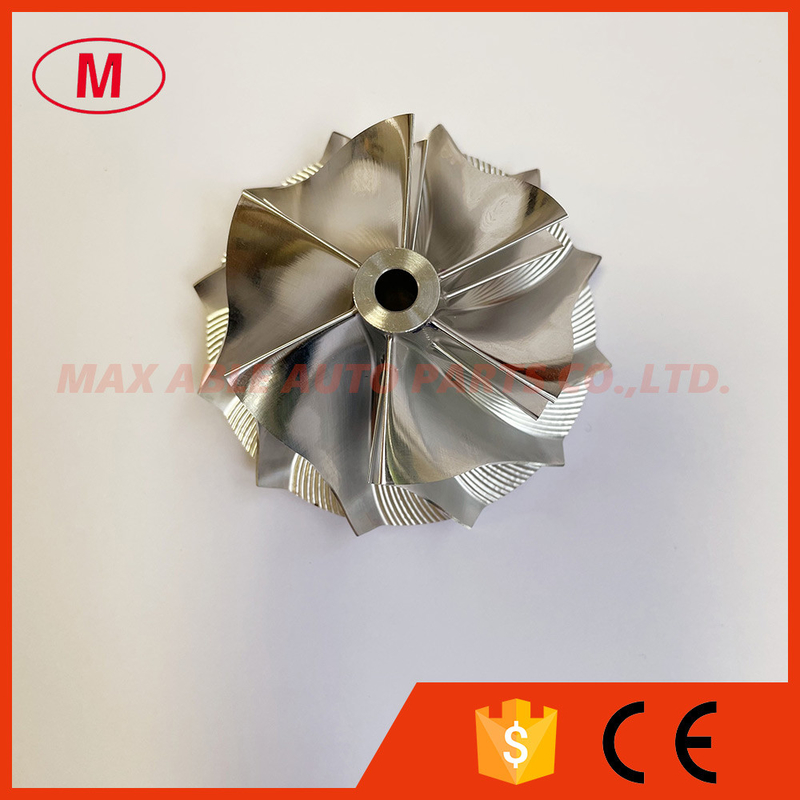

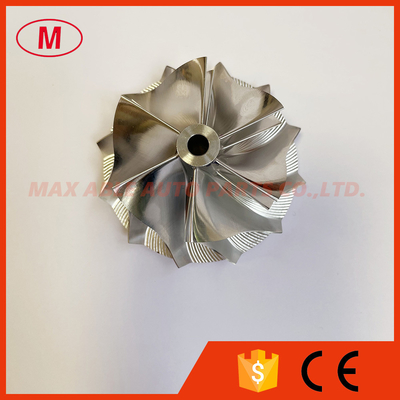

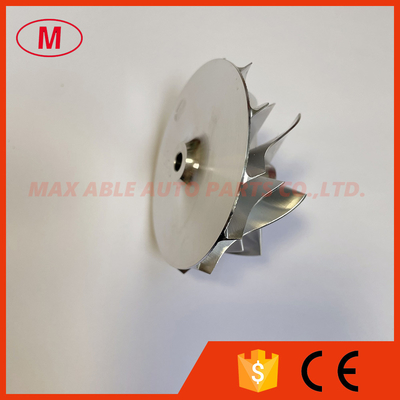

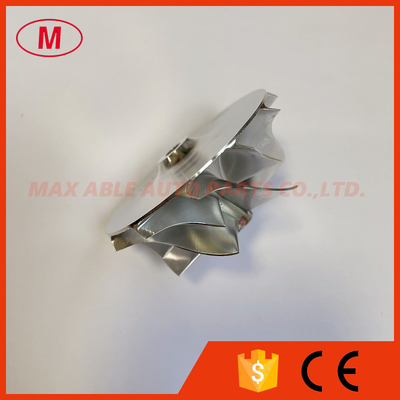

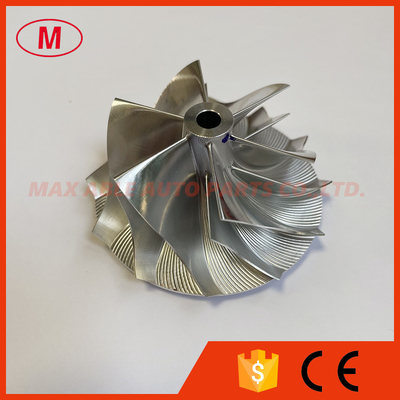

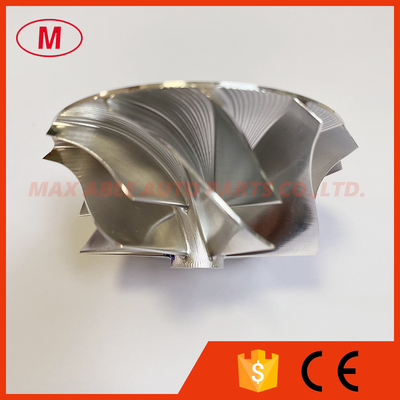

2.B03G 50.00/62.00mm 6+6 blades 1856-123-2000 Upgrade high performance turbocharger milling/aluminum 2618/billet compressor wheel for 1850-970-0001 upgrade Mercedes M177MFA AMG 4.0 V8 Twin Turbo Upgrade
3.Size:
Nose diameter:11.27mm
Inducer:50.00mm
Exducer:62.00mm
Tapered tip exducer:66.29mm
Tip height:4.72mm
Superback:4.05mm
Overall height:31.40mm
Bore size:5.61mm
Trailing angle:45 degree
Bore type:Through
Cutback:2.0mm
SP Height angle:-4.00
Blade height:25.02mm
Splitter height:16.70mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size,please check carefully before buying.
4.High quality ,competitive price and good service.
5.We can also produce as your requirement.
All the compressor wheels have been balanced
6.If you want more details, please send email to me or talk to me online.
We will try our best to meet your needs.
