| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF5HB |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

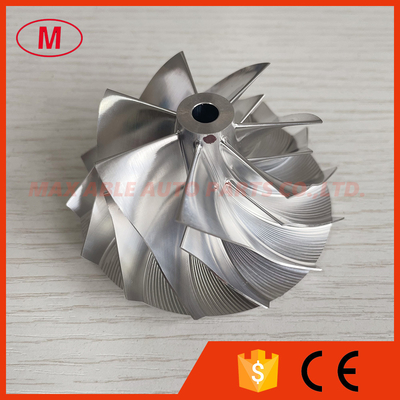

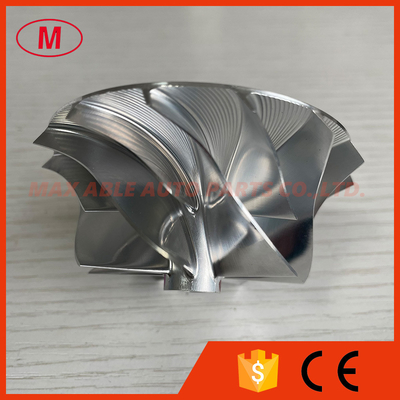

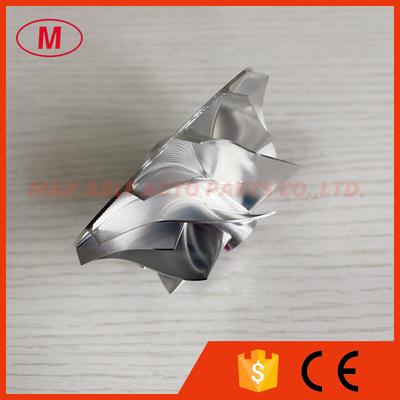

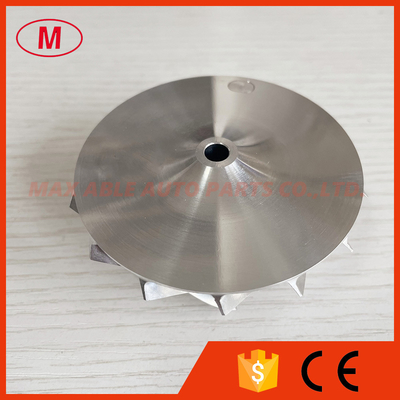

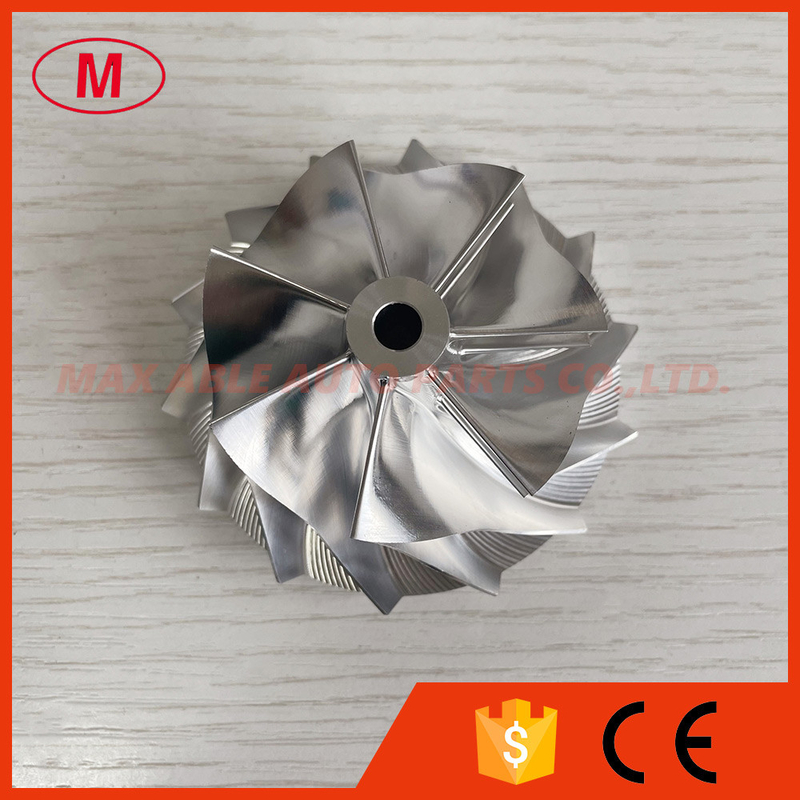

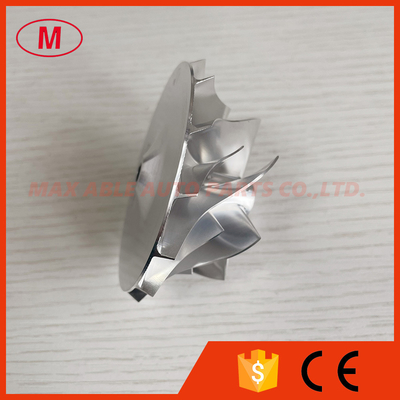

1.RHF5HB 54.06/71.40mm 7+7blades high performance aluminum 2618/milling/billet compressor wheel
2.SIZE:
Nose diameter:13.06mm
inducer:54.06mm
Exducer:71.40mm
Tapered tip exducer :76.51mm
tip height:5.94mm
trailing angle:65 degree
Superback:3.71mm
Overall height:37.00mm
bore size :6.10mm
Bore type:through
cutback:0.0mm
splitter height:18.90mm
sp height angle:-9.70
Blade height:29.88mm
7+7 blades
It is custom size ,please check carefully before buying.
tapered tip angle:30 degree
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the billet compressor wheel have been balanced.
