1. MODEL:GT15-25 forward

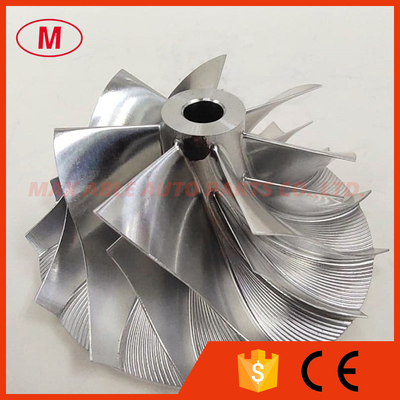

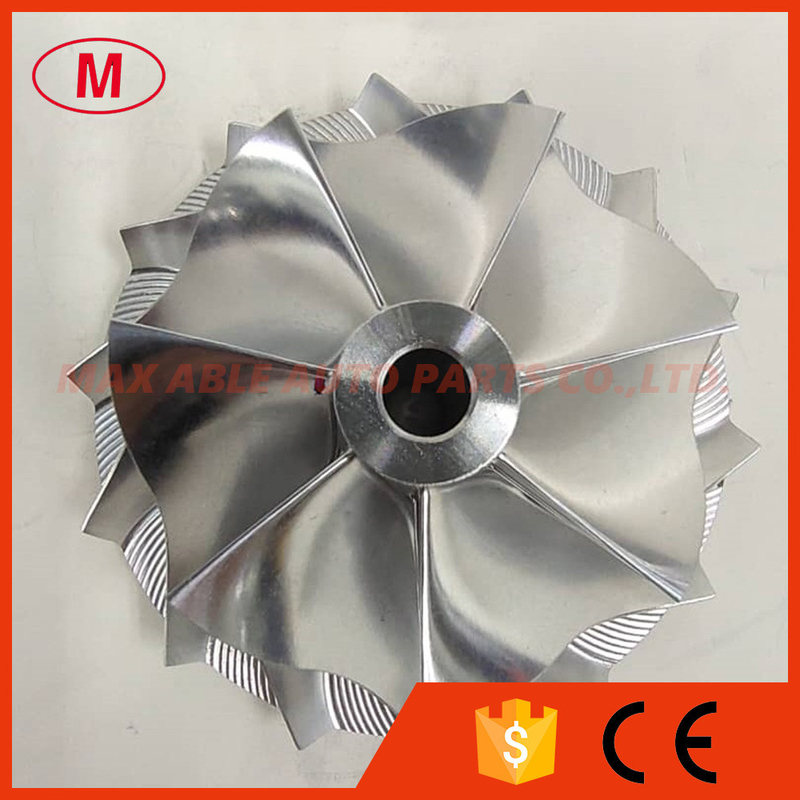

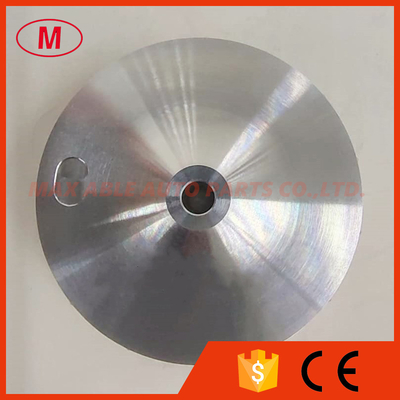

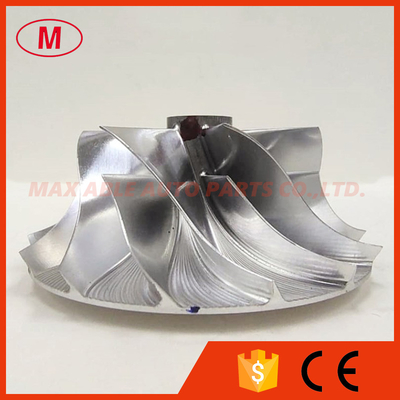

2.GT15-25 38.50/52.19mm 702492-0001, 702492-0004 7+7 blades high performance turbo billet/milling/aluminum 2618 compressor wheel for 454135-0003, 454135-0004, 454135-0005, 454135-0008, 454135-0009, 454135-0010, 454205-0003, 710060-0001,710415-0001, 710415-0003, 714334-0001, 723167-0001, 723167-0002, 723167-0003, 723167-0004, 724639-0005, 724639-0006, 727461-0006, 733952-0001, 742693-0001, 742693-0002, 742693-0003
3.Size:
Nose diameter:10.60mm
inducer:38.50mm
Exduder:52.19mm
Tapered tip exducer:55.19mm
Tip height:3.60mm
Superback:2.39mm
Overall height:24.67mm
bore size :5.08mm
bore type:through
Trailing Angle:60 degree
Cutback:0.0mm
SP Height angle:-3.00
Blades height:20.35mm
Splitter height:14.10mm
7+7 blades
Forward rotation
Tapered tip angle:30 degree
Fit for OE compressor housing
Application:
454135-0003
454135-0004
454135-0005
454135-0008
454135-0009
454135-0010
454205-0003
710060-0001
710415-0001
710415-000
714334-0001
723167-0001
723167-0002
723167-0003
723167-0004
724639-0005
724639-0006
727461-0006
733952-0001
742693-0001
742693-0002
742693-0003
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
All the billet compressor wheels have been balanced.
