| Brand Name: | NO |
| Model Number: | HC5A |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 103.80/130.98mm | Type: | Turbochargers |
|---|
1.Model:HC5A forward

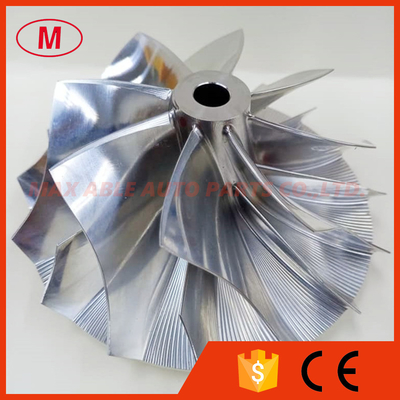

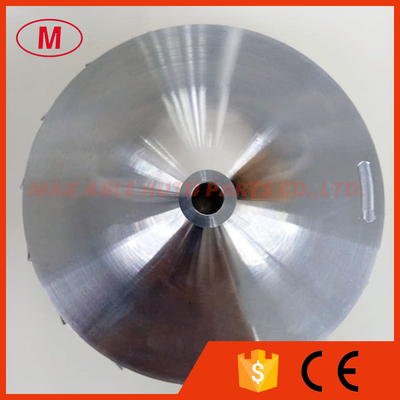

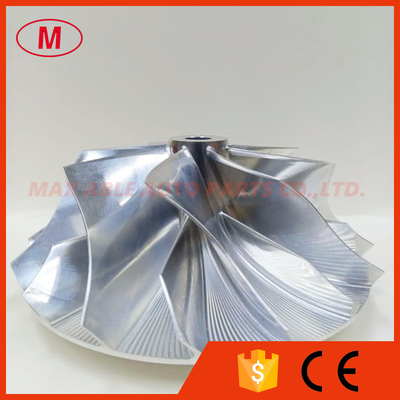

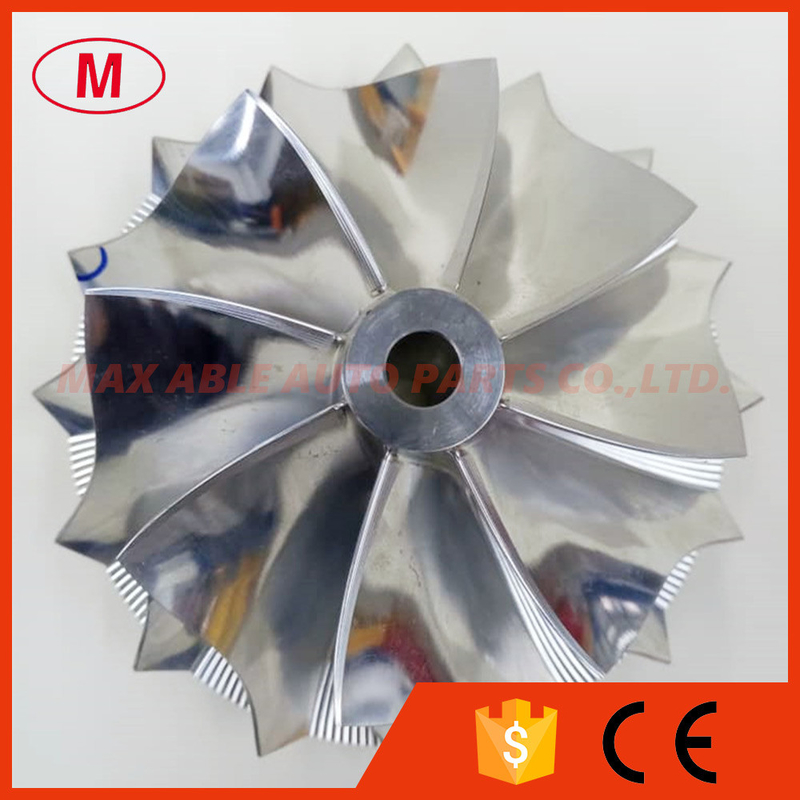

2. HC5A forward 103.80/130.98mm 8+8 Blades LEP Style, Perfomance Design turbo billet/aluminum 2618/Milling compressor wheel
3.Size:
Nose diameter:24.00mm
Inducer:103.80mm
Exducer:130.98mm
Tappeared tip exducer:140.16mm
Tip height:9.45mm
Trailing angle:50 degree
Superback:10.25mm
Bore:11.12mm
bore type:through
Cutback:6.0mm
Overall height:61.14mm
SP Height angle:6.50
Blades height:47.80mm
Splitter height:20.35mm
8+8blades
Tapered tip angle:30 degree
forward rotation
It is for OE compressor housing
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
All the compressor wheels have been balanced.
