| Brand Name: | NO |
| Model Number: | TD05H 16G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 48.30/68.01mm | Type: | Turbochargers |
|---|
1. MODEL:TD05H 16G Reverse

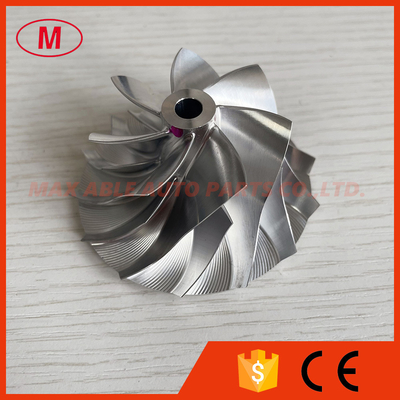

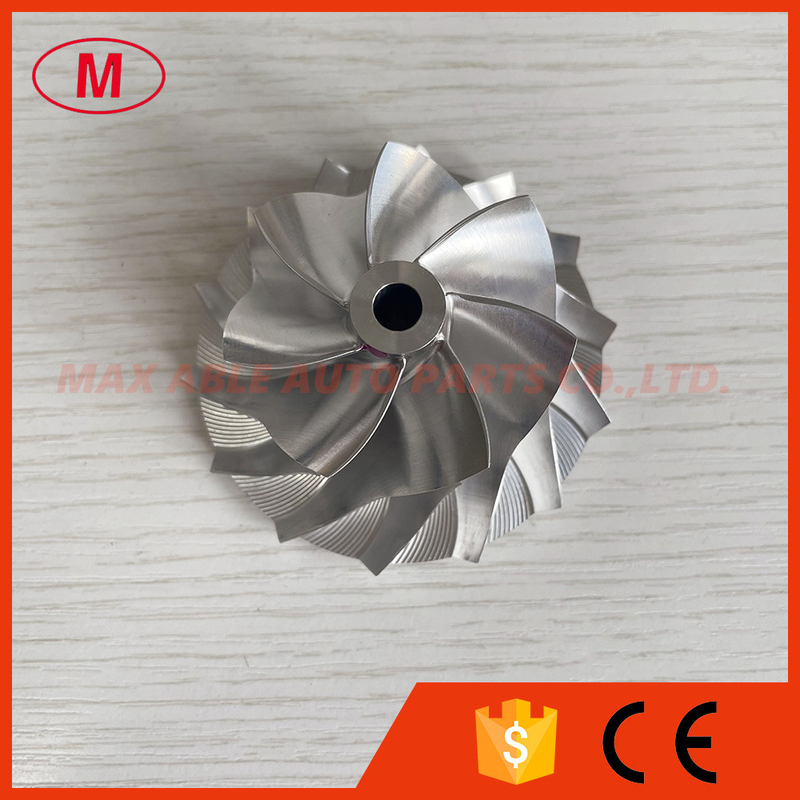

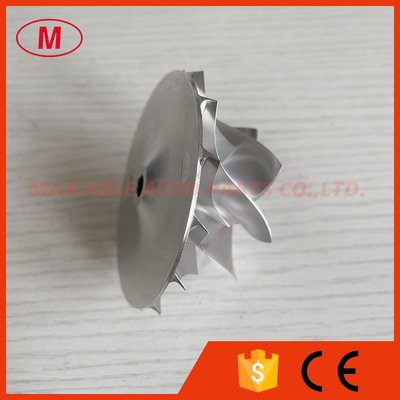

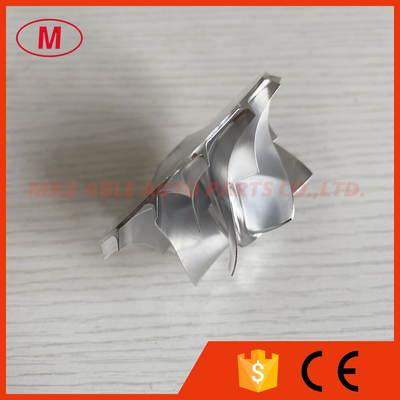

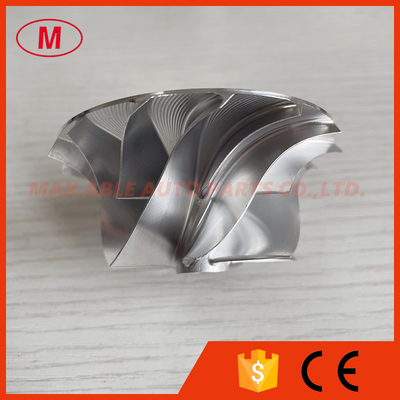

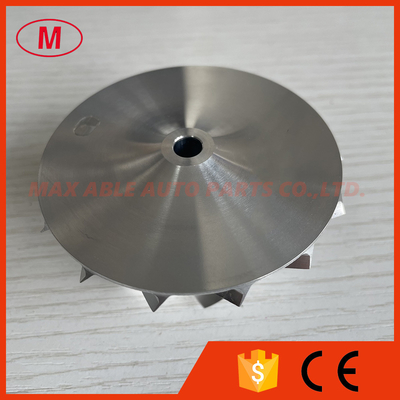

2.TD05H 16G reverse 48.30/68.01mm 7+7blades high performance LEP style Turbo Billet/milling/Aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.80 mm
inducer:48.30mm
exducer:68.01mm
Tapered tip exducer:72.18mm
Tip height:4.61mm
Superback:2.90mm
Blade height:30.10mm
Overall height:35.00mm
bore size :6.50mm
bore type :through
Trailing angle:55 degree
Tapered tip Angle: 30 degree
Cutback:0.0mm
Splitter height:16.00mm
Sp height angle:-5.00
7+7 blades
reverse rotation
It is custom size,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
