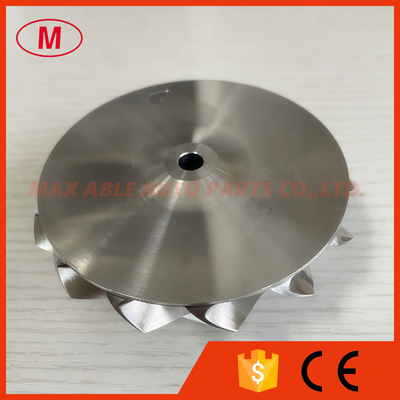

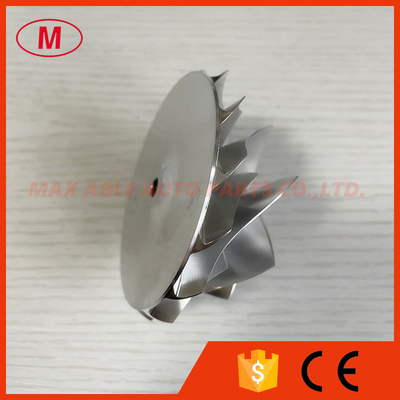

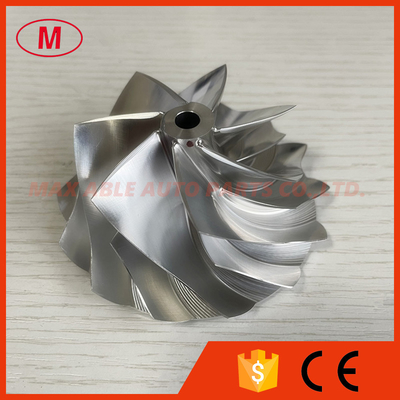

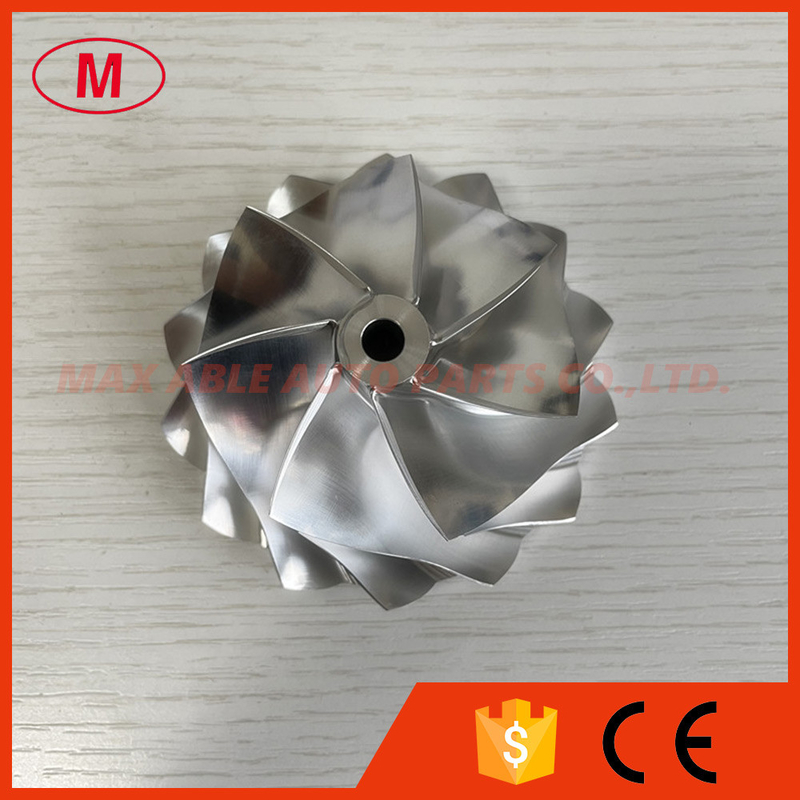

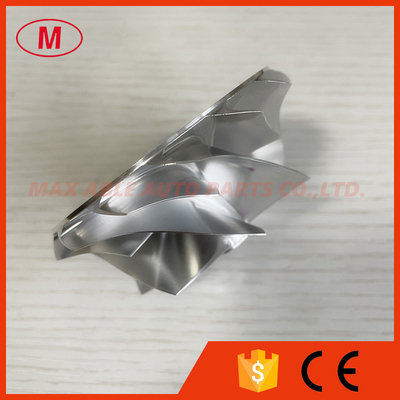

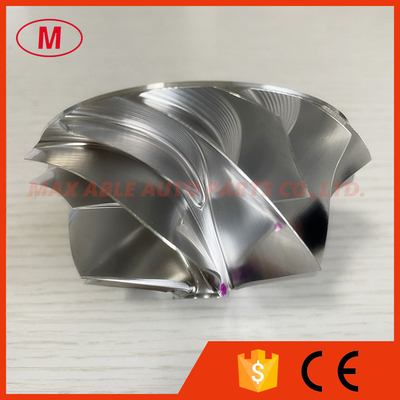

G35-900 61.75/76.60mm 7+7blades LEP Style Performance billet compressor wheel for 880695-5001S/880700-5001S/880700-5002S

Brand Name:	NO
Model Number:	G30-900

Contact Now

Detailed Product Description

Size:	61.75/76.60mm	Type:	Turbochargers

1. MODEL:G35-900 forward

2.G35-900 61.75/76.60mm 7+7blades LEP Style Performance billet compressor wheel for 880695-5001S/880700-5001S/880700-5002S/880700-5003S/880700-5004S

3.Size:

Nose diameter:13.70mm

Inducer:61.75mm

exducer:76.60mm

Tapered tip exducer:83.60mm

Tip height:7.26mm

Superback:1.67mm

bore size :6.35mm

bore type:through

Overall height:37.60mm

Cutback:6.50mm

Trailing Angle:35 degree

SP height angle:-5.00

Splitter height:17.00mm

Blade height:33.90mm

7+7blades forward

Fit for OE compressor housing

Tapered tip Angle:30 degree

Application:

880695-5001S/880700-5001S/880700-5002S/880700-5003S/880700-5004S

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

G35-900 61.75/76.60mm 7+7blades LEP Style Performance billet compressor wheel for 880695-5001S/880700-5001S/880700-5002S
