| Brand Name: | NO |
| Model Number: | td05h |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 57.69/78.00mm | Type: | Turbochargers |
|---|
1. MODEL:TD05H forward

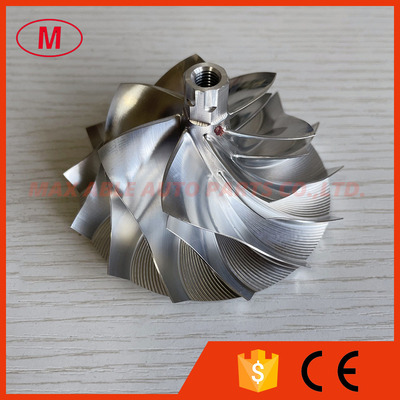

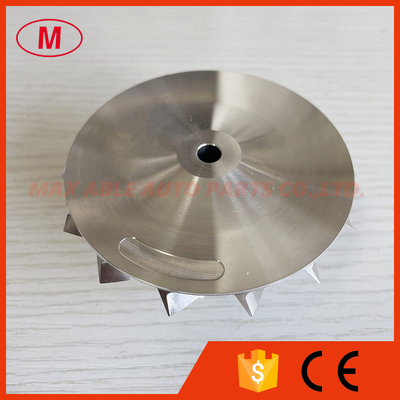

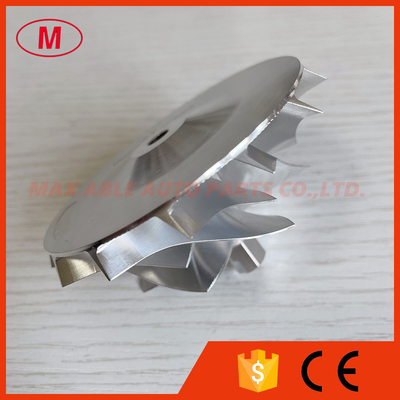

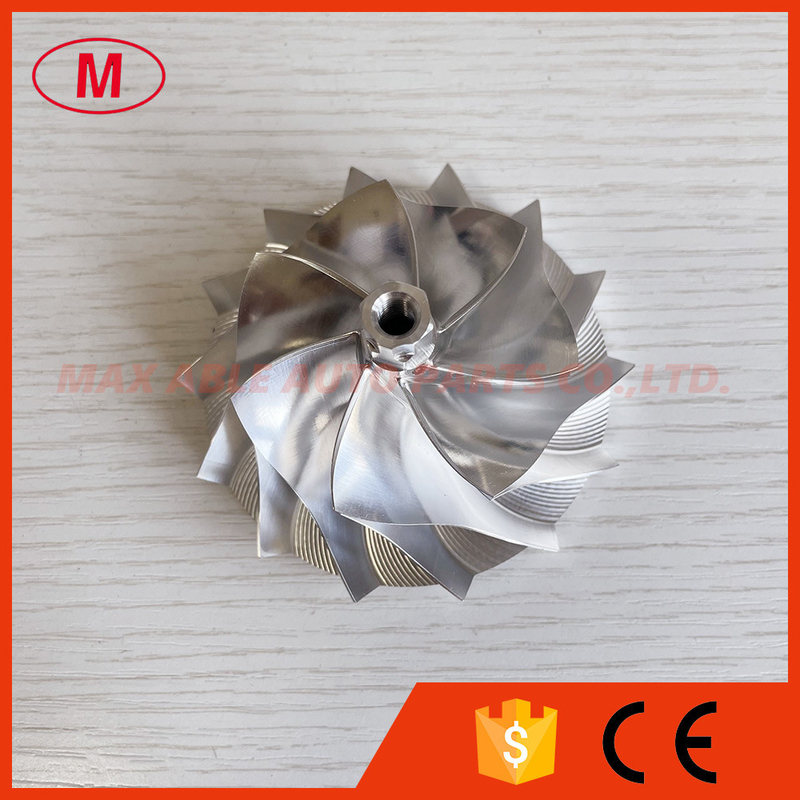

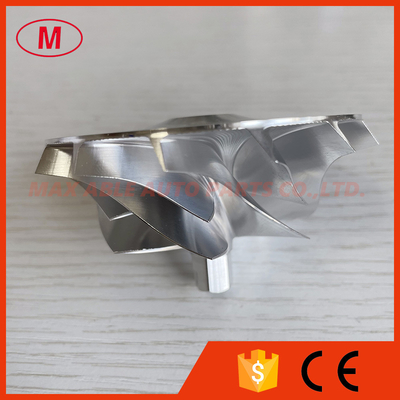

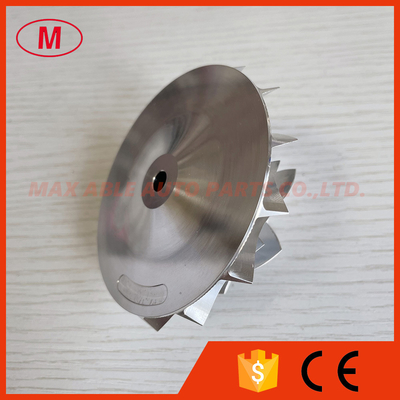

2. TD05H forward 57.69/78.00mm 7+7 blades LEP style high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.00mm
inducer:57.69mm
exducer:78.00mm
tapered tip exducer:85.06mm
tip height:7.11mm
super back:2.90mm
Overall height:46.00mm
bore size :6.50mm
bore type:Threaded-1/4-28G-LHT
Trailing angle:60 degree
Cutback:7.0mm
blades height:29.67mm
Splitter height:19.30mm
Sp height angle:-7.90
7+7 blades
forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced
We can produce as your requirement.
