| Brand Name: | NO |
| Model Number: | td05 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 64.40/82.00mm | Type: | Turbochargers |
|---|
1. MODEL:TD05 reverse

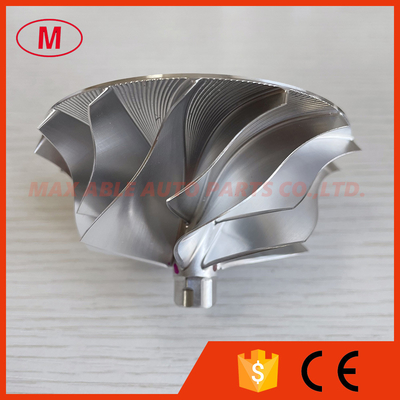

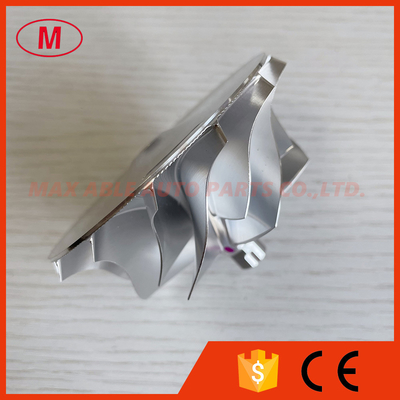

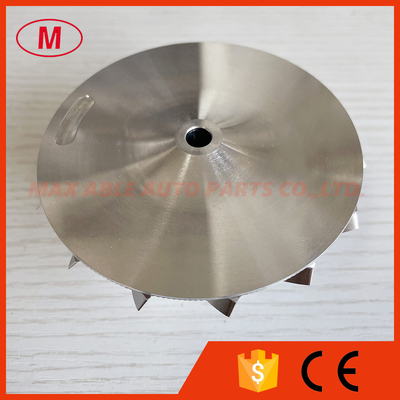

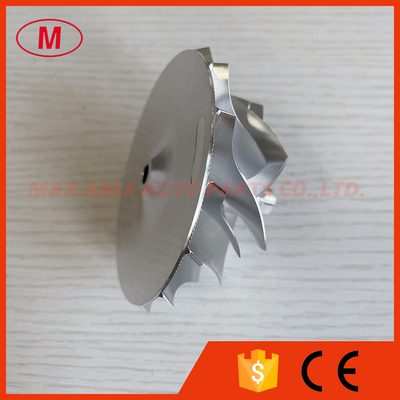

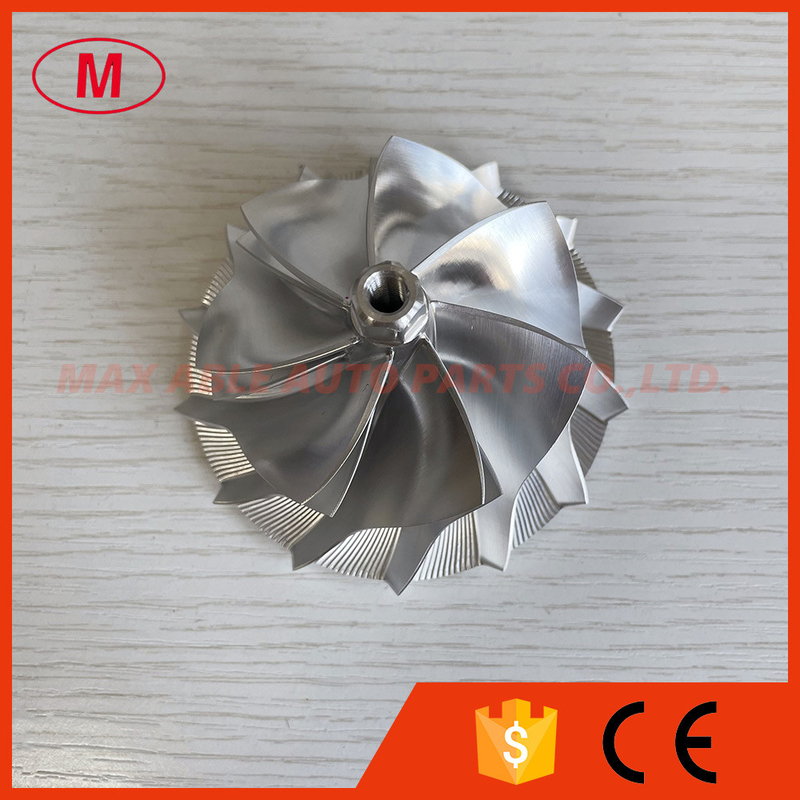

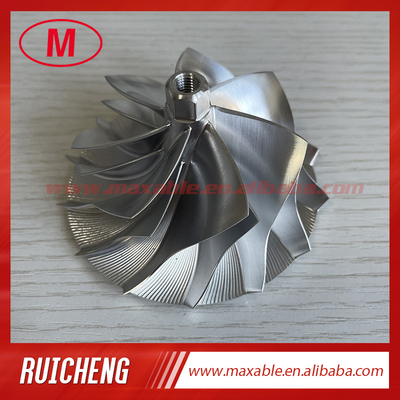

2. TD05 reverse 64.40/82.00mm 7+7 blades LEP style turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.00mm
inducer:64.40mm
exducer:82.00mm
tapered tip exducer:87.26mm
tip height:5.56mm
super back:2.90mm
Overall height:47.94mm
bore size :6.50mm
bore type:Threaded 1/4-28G-RHT
Trailing angle:60 degree
Cutback:12.0mm
Splitter height:22.90mm
SP height angle:2.60
blades height:35.15mm
7+7 blades
Reverse rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced
We can produce as your requirement.
