| Brand Name: | NO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 64.40/82.00mm | Type: | Turbochargers |
|---|
1. MODEL:RHF5 reverse

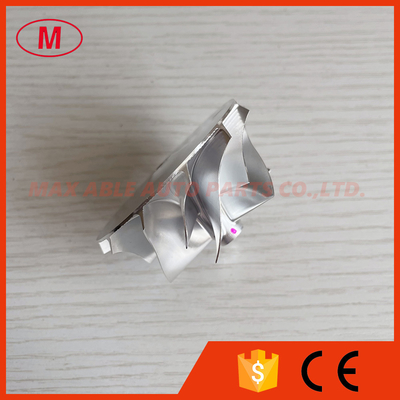

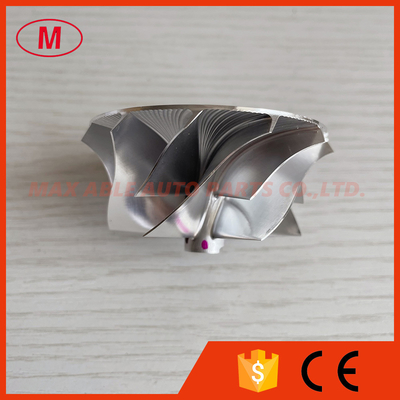

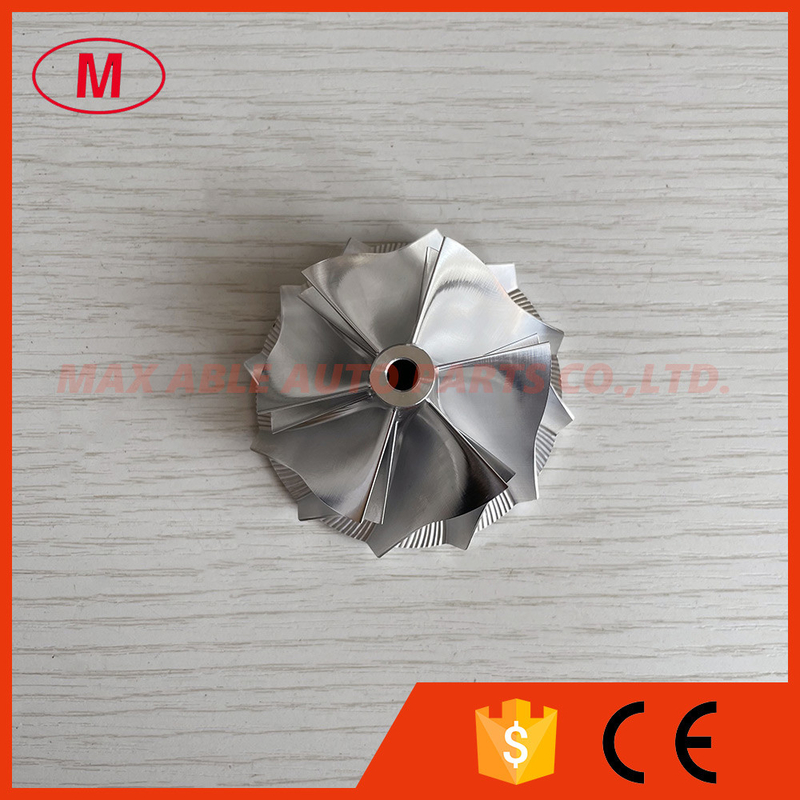

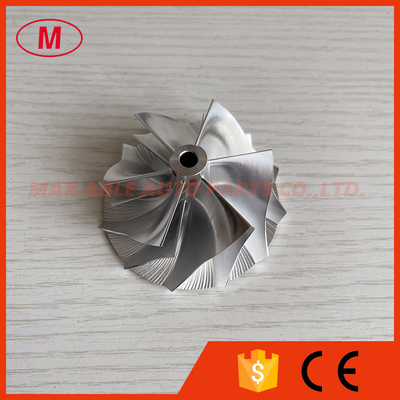

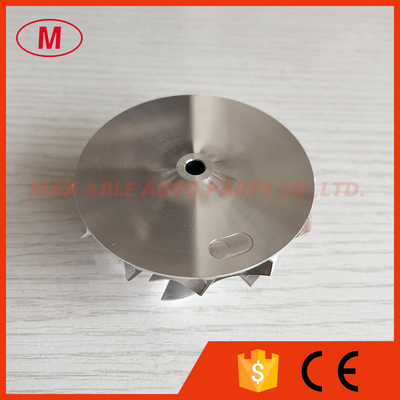

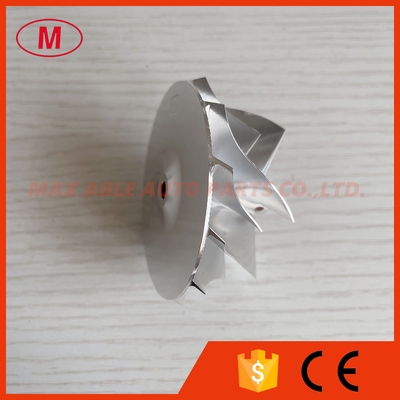

2.RHF5 reverse 50.50/61.00mm 6+6 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:10.77mm
inducer:50.50mm
Inducer:61.00mm
Tapered tip exducer:65.00mm
Tip height:5.02mm
Superback:1.53mm
Overall height:33.00mm
bore size :5.10mm
bore type:through
Trailing Angle:60 degree
Cutback:3.0mm
SP height angle:-4.30
Blade height:27.66mm
Splitter height:18.20mm
Tapered tip Angle: 26.5 degree
It is custom size ,please check carefully before buying
6+6 blades
reverse rotation
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
