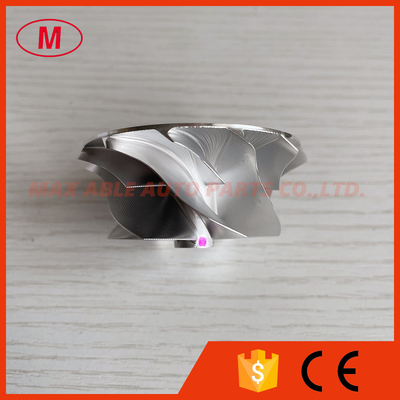

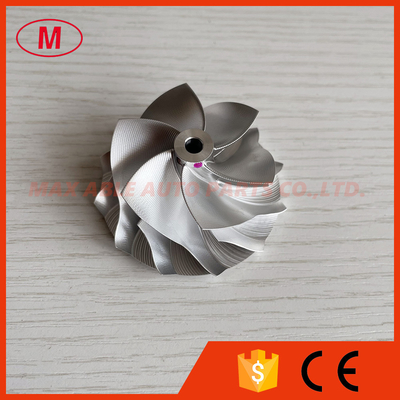

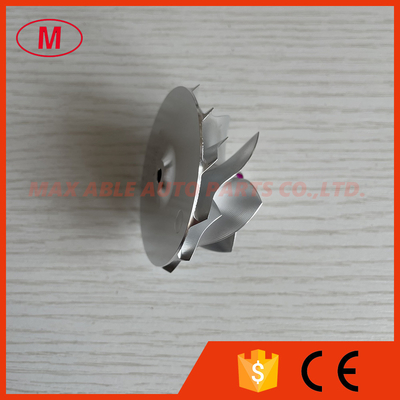

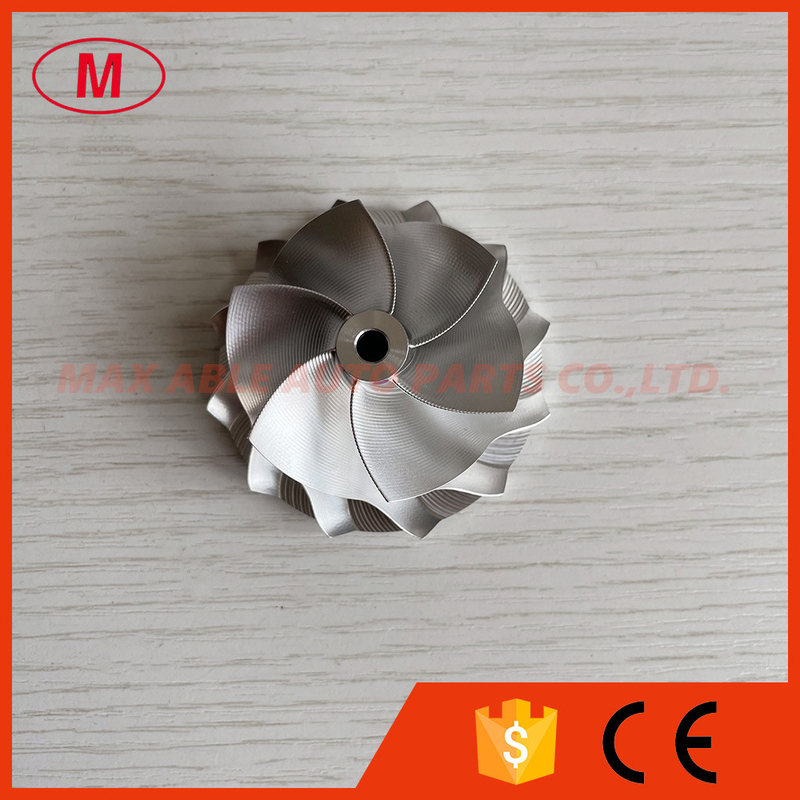

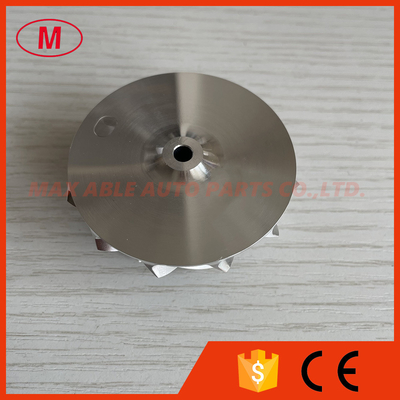

K04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheel

K04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheel

    • K04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheel
    • K04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheel
    • K04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheel
    • K04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheel
    • K04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheel
    • K04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheel
    • K04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheel

    Product Details:

    Brand Name: NO
    Model Number: k04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Size: 45.00/56.08mm Type: Turbochargers

    1. MODEL:K04 FORWARD

    2.K04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger aluminum 2618/milling/billet compressor wheel
    3.Size:

    Nose diameter:10.50mm

    Inducer:45.00mm

    exducer:56.08mm

    Tapered tip exducer:59.78mm

    Tip height :4.20mm

    superback:1.80mm

    Overall height:27.73mm

    Bore size:4.61mm

    bore type:through

    Trailing Angle:45 degree

    Cutback:2.3mm

    SP height Angle:-5.80

    Blades height:24.00mm

    Splitter Height:11.75mm

    6+6 blades

    forward rotation

    Tapered tip Angle: 30 degree

    It is custom size ,please check carefully before buying.

    4.High quality and competitive price.

    5.Any questions please send email to me.

    All the compressor wheels have been balanced.

    We can produce as your requirement.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719



    K04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheel
    K04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheelK04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheelK04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheelK04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheelK04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheelK04 forward 45.00/56.08mm 6+6 blades Poing milling air curve high performance turbo turbocharger billet compressor wheel
