1.Model:TD03 Forward

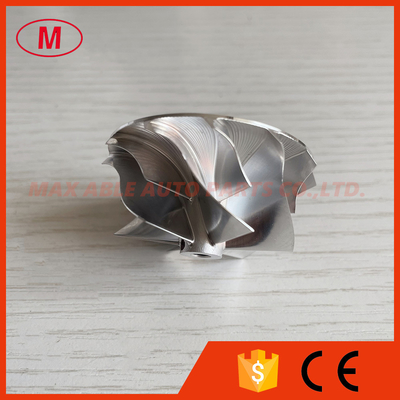

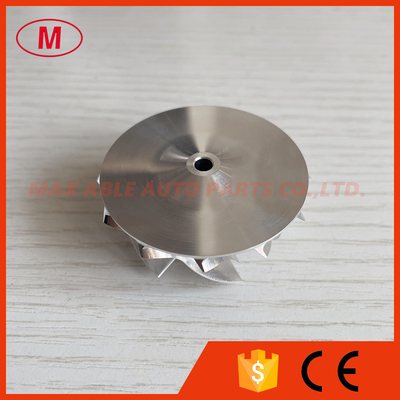

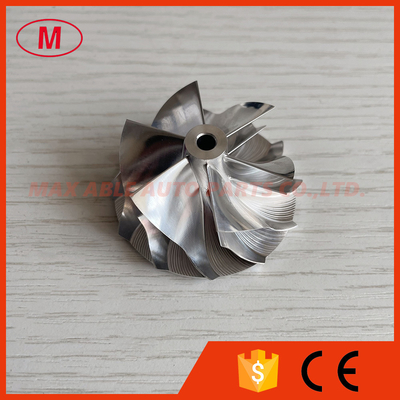

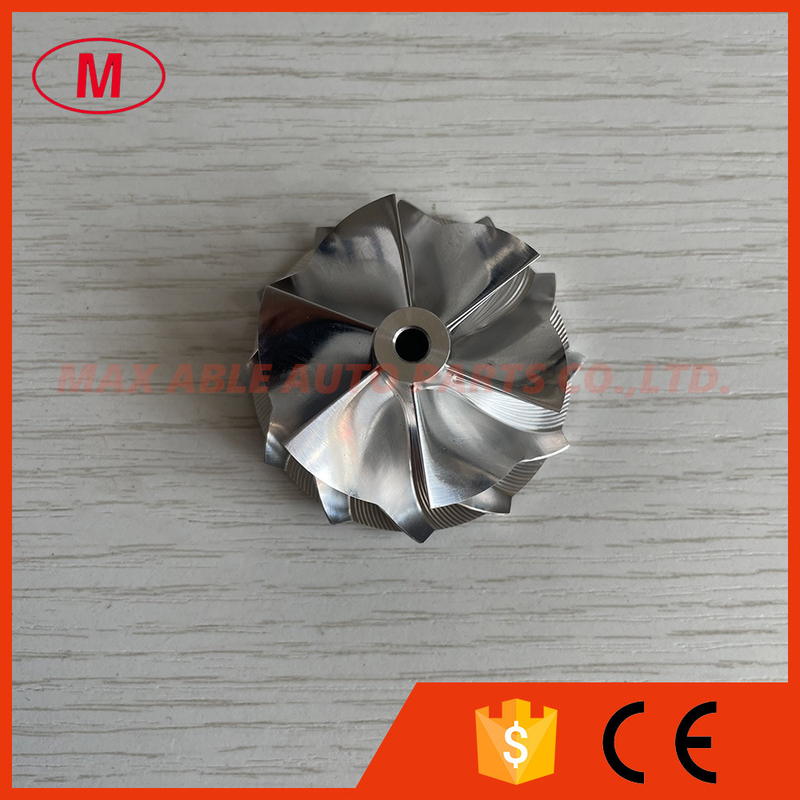

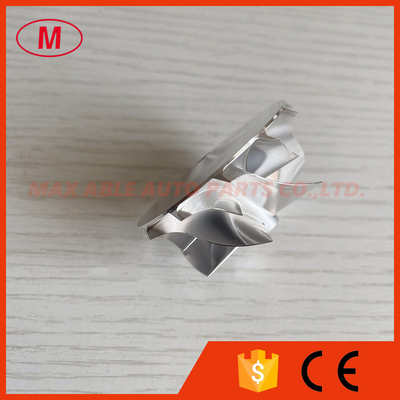

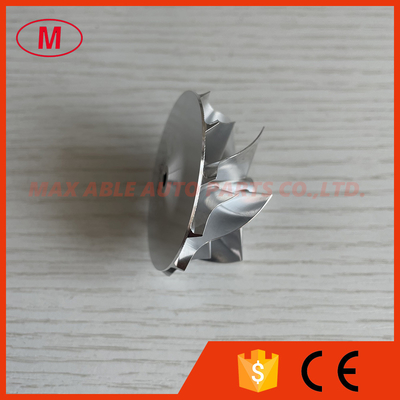

2.TD03 39.10/46.00mm 6+6 blades high performance turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:9.10mm
Inducer:39.10mm
Exducer:46.00mm
Tapered tip exducer:48.92mm
Tip height:3.33mm
Superback:1.68mm
Overall height:23.60mm
Bore size:4.01mm
bore type:through
Trailing angle:60 degree
Cutback:3.5mm
SP Height angle:0.00
Blade height:20.00mm
Splitter height:11.00mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality ,competitive price and good service.
5.We can also produce as your requirement.
All the compressor wheels have been balanced.
6.If you want more details, please send email to me or talk to me online.
We will try our best to meet your needs.
