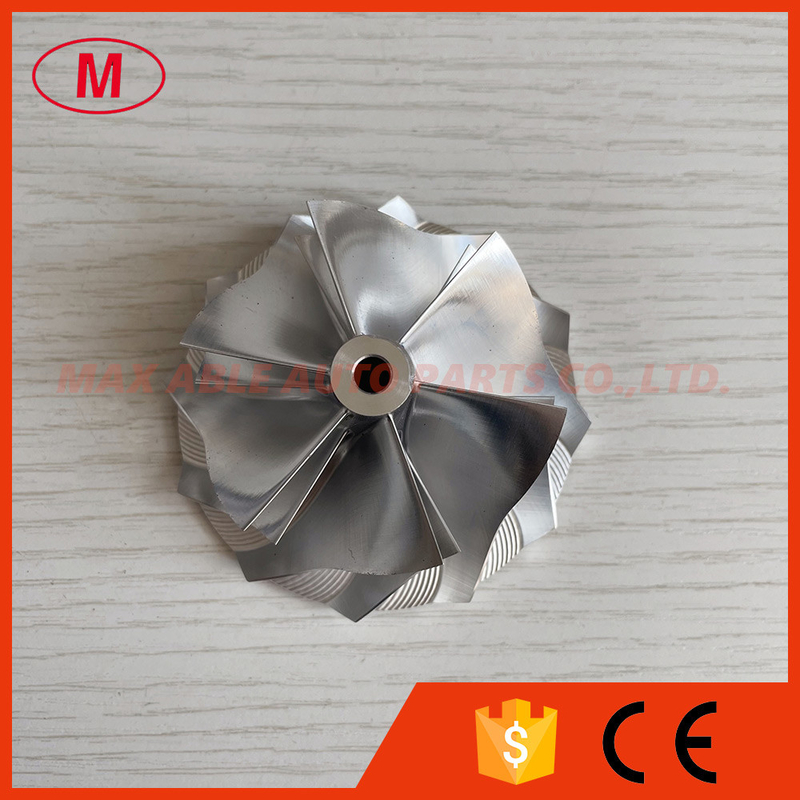

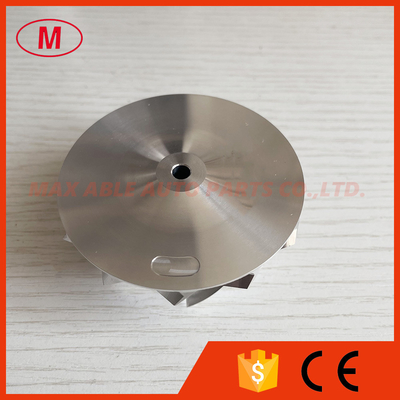

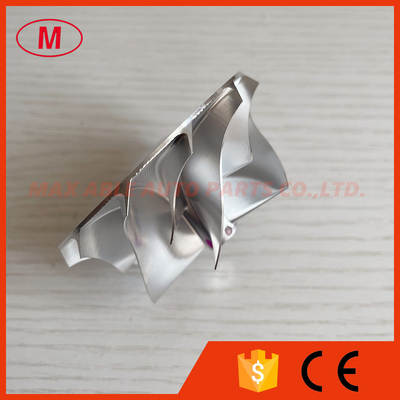

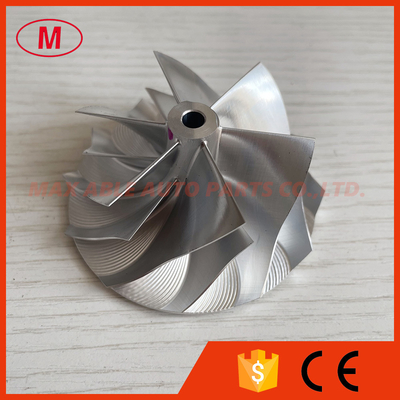

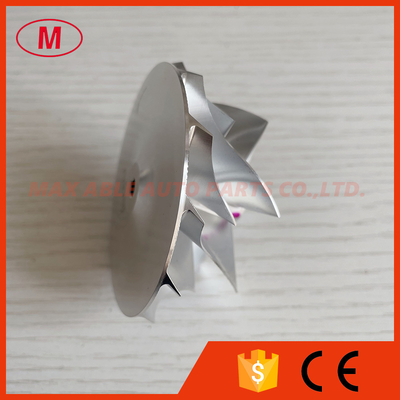

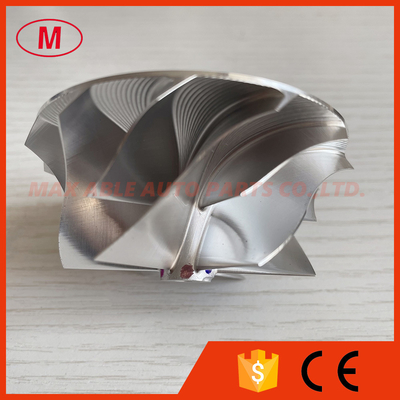

TD04H reverse 54.35/68.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel

TD04H reverse 54.35/68.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel

    • TD04H reverse 54.35/68.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04H reverse 54.35/68.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04H reverse 54.35/68.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04H reverse 54.35/68.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04H reverse 54.35/68.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04H reverse 54.35/68.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04H reverse 54.35/68.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD04H

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:TD04H reverse
    2.TD04H reverse 54.35/68.00mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose Diameter:11.50mm
    Inducer:54.35mm
    exducer:68.00mm
    Tapered tip exducer:71.02mm
    Tip height:5.64mm
    Superback:1.90mm
    bore size :5.00mm
    bore type:through
    Overall height:32.40mm
    Trailing angle:45 degree
    Cutback:0.0mm
    Blades height:28.50mm
    Sp Height angle:-5.00
    Splitter height:17.40mm
    6+6 blades
    reverse rotation
    It is custom size ,please check carefully before buying.
    Tapered tip angle:18 degree
    4.High quality and competitive price.
    5.if you want more details, please send email to me.
    All the billet compressor wheels have been balanced.
