| Brand Name: | NO |
| Model Number: | GTA15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 39.61/56.02mm | Type: | Turbochargers |
|---|
1.Model:GTA15-25 forward

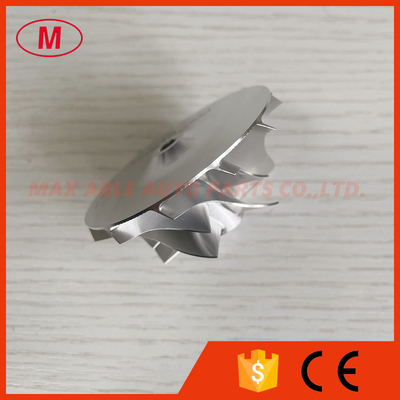

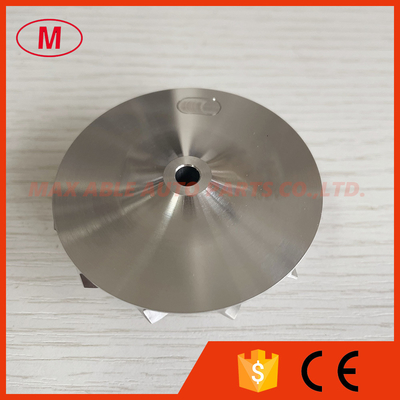

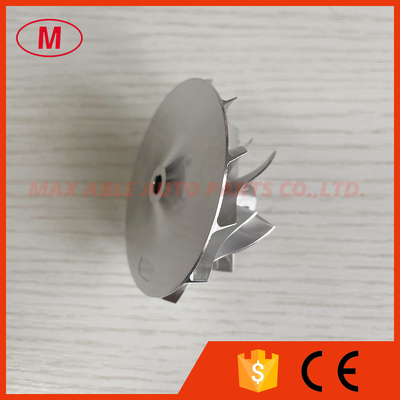

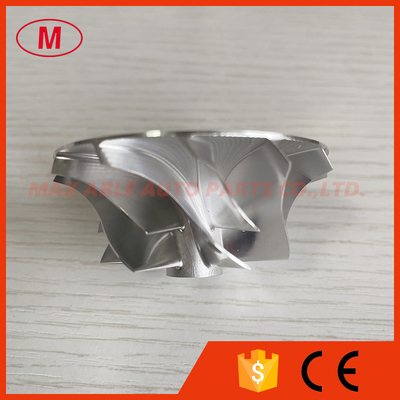

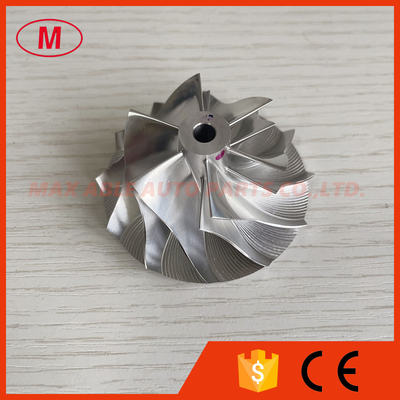

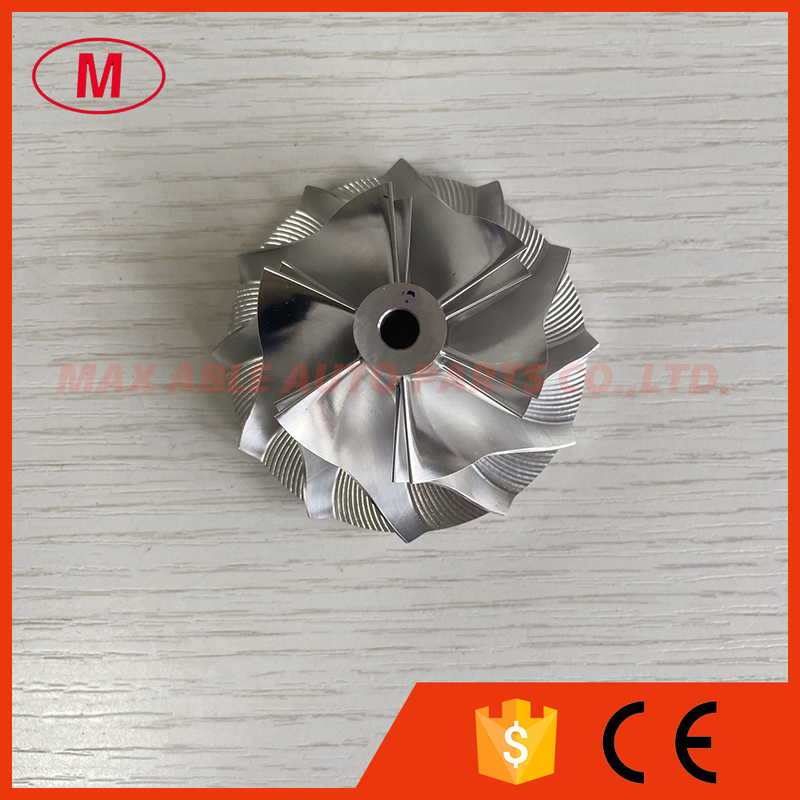

2. GTA15-25 39.61/56.02mm 701374-0003 1102-022-402 6+6 blades aluminum 2618/billet compressor wheel for 709837-0001/2/709838-0001/3/4/5/721020-0001
3.Size:
Nose diameter:11.93mm
inducer:39.61mm
Exduder:56.02mm
Tapered tip exducer:58.34mm
Tip height:4.57mm
Superback:2.39mm
Overall height:27.00mm
Bore size:5.08mm
bore type:through
Trailing angle:55 degree
Cutback:2.00mm
SP height angle:-3.30
Blades height:22.40mm
Splitter height:15.55mm
6+6 blades
forward rotation
Fits OE Compressor Housing
4.Good quality and competitive price
5.We have many other size ,please send email to me !
All the compressor wheel have been balanced.
