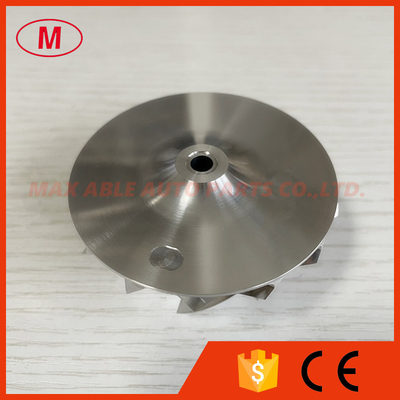

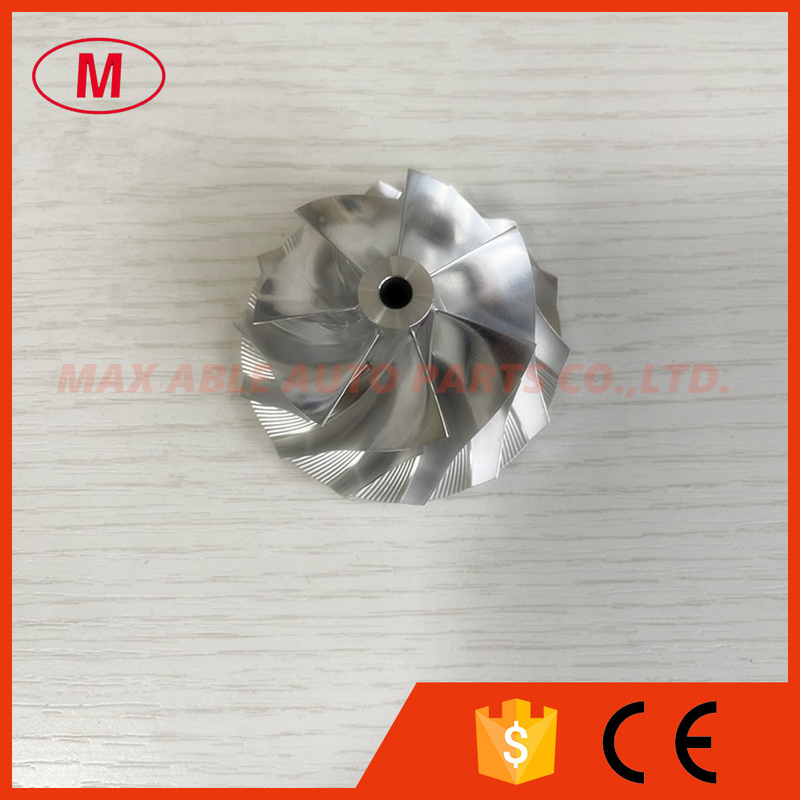

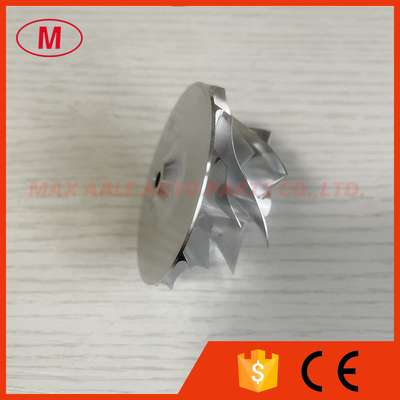

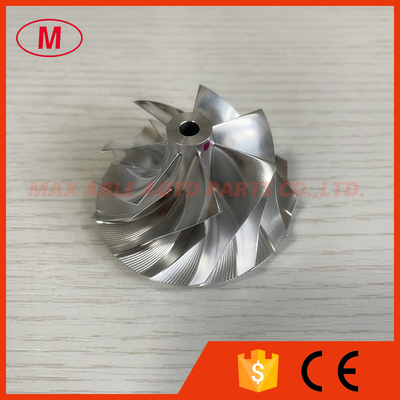

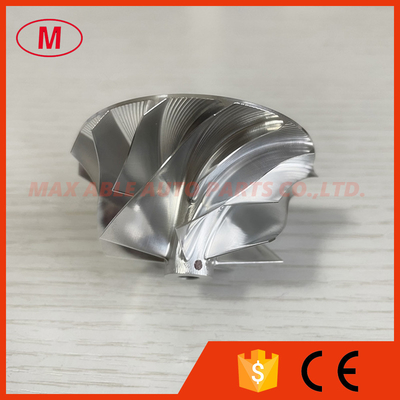

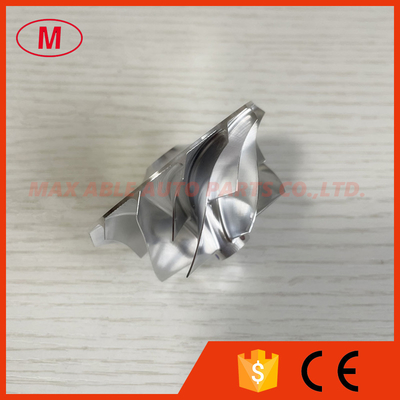

RHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheel

RHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheel

    • RHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheel
    • RHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Model Number: RHF5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Size: 46.50/60.82mm Type: Turbochargers


    1.Model: RHF5 reverse
    2.RHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheel
    3.Size:
    Nose diameter:12.00mm
    Inducer:46.50mm
    exducer:60.82mm
    Tapered tip exducer:62.89mm
    Tip height:4.95mm
    Superback:3.60mm
    bore size :5.10mm
    bore type:through
    Overall height:35.00mm
    Cutback:6.7mm
    SP Height angle:-4.20
    Trailing Angle:45 degree
    Blades height:27.60mm
    Splitter height:15.80mm
    7+7 blades reverse
    It is custom size ,please check carefully before buying.
    Tapered tip Angle:14 degree

    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    RHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheel


    RHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheelRHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheelRHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheelRHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheelRHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheelRHF5 reverse 46.50/60.82mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheel
