| Brand Name: | NO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 46.50/60.82mm | Type: | Turbochargers |
|---|
1. MODEL:RHF5 reverse

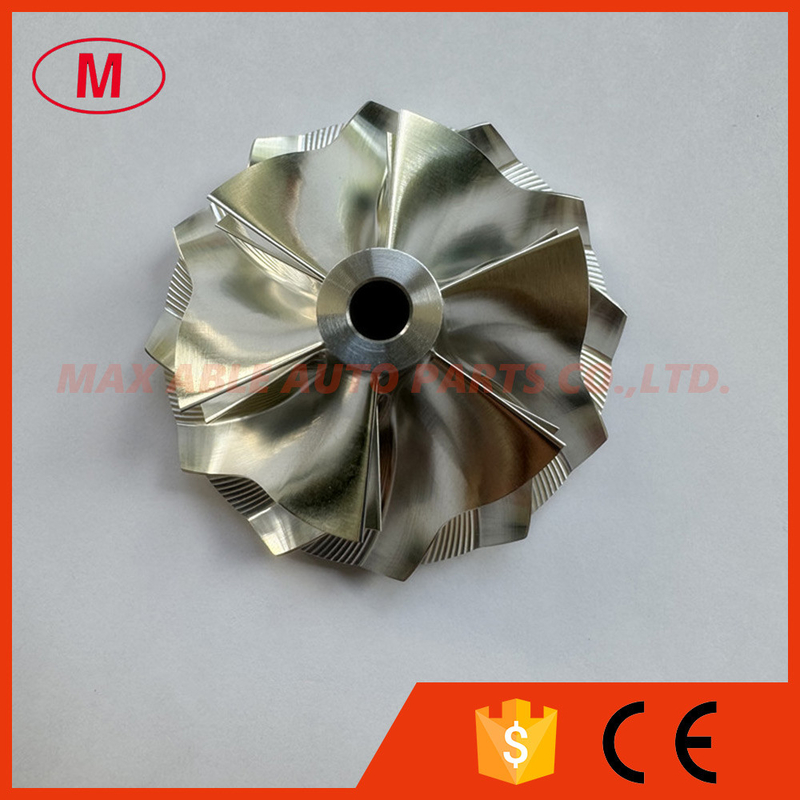

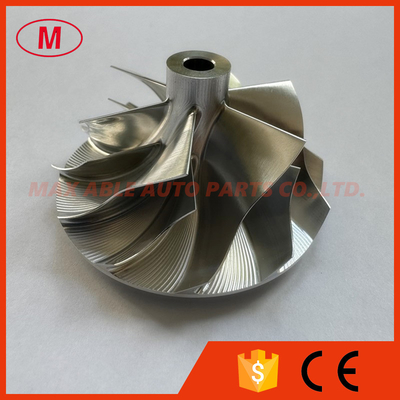

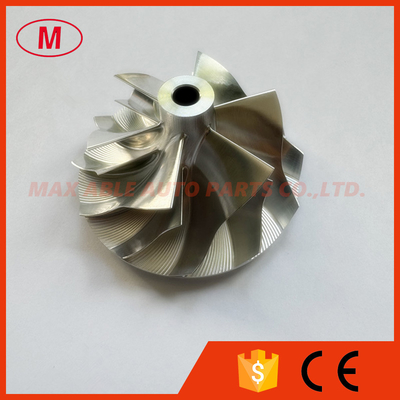

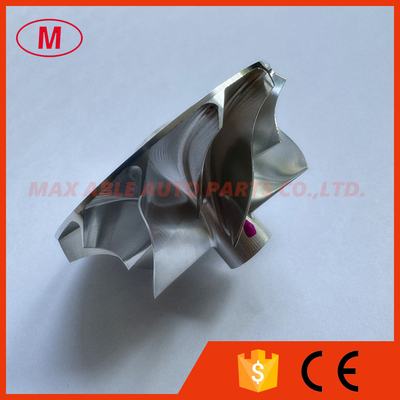

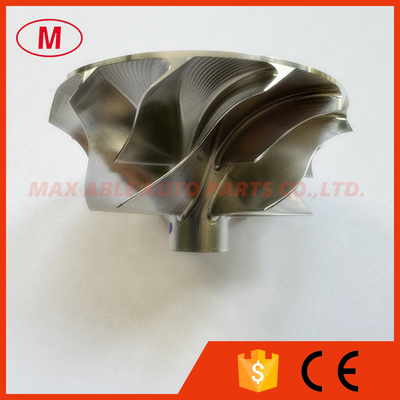

2.RHF5 reverse 26558 PTI 40.20/52.02mm 6+6 blades Turbo Billet/milling/aluminum 2618 compressor wheel for 00670051440, 2736100035, 00670051439, 3296100058
3.Size:
Nose diameter:10.56mm
inducer:40.20mm
Inducer:52.02mm
Tapered tip exducer:53.36mm
Tip height:4.94mm
Superback:3.86mm
Overall height:29.60mm
bore size :5.09mm
bore type:through
Trailing Angle:45 degree
Cutback:2.3mm
SP height angle:-4.50
Blade height:19.76mm
Splitter height:12.65mm
Tapered tip Angle: 9.4 degree
It is custom size ,please check carefully before buying
6+6 blades
reverse rotation
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
