| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | HX60 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 76.00/113.01mm | Type: | Turbochargers |
|---|
1. MODEL:HX60 reverse

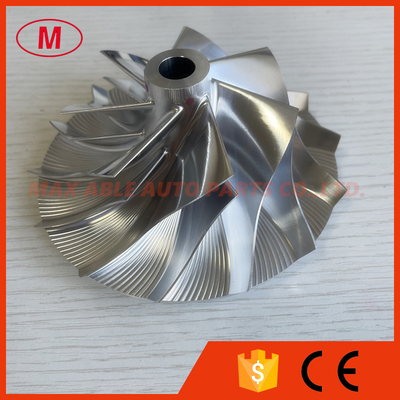

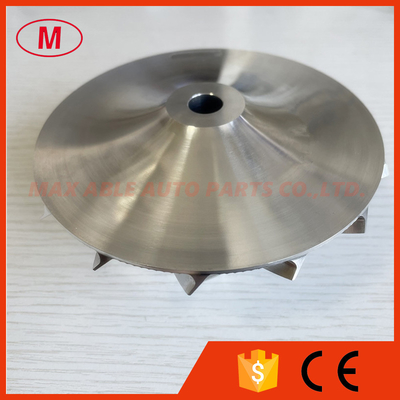

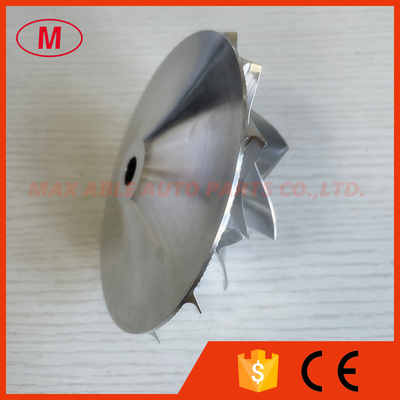

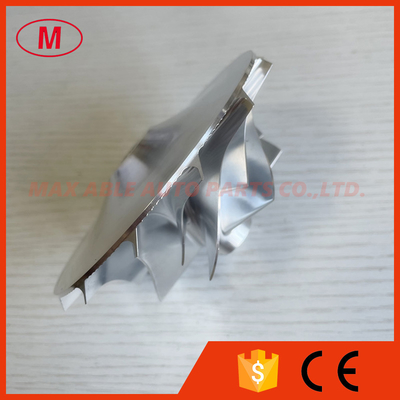

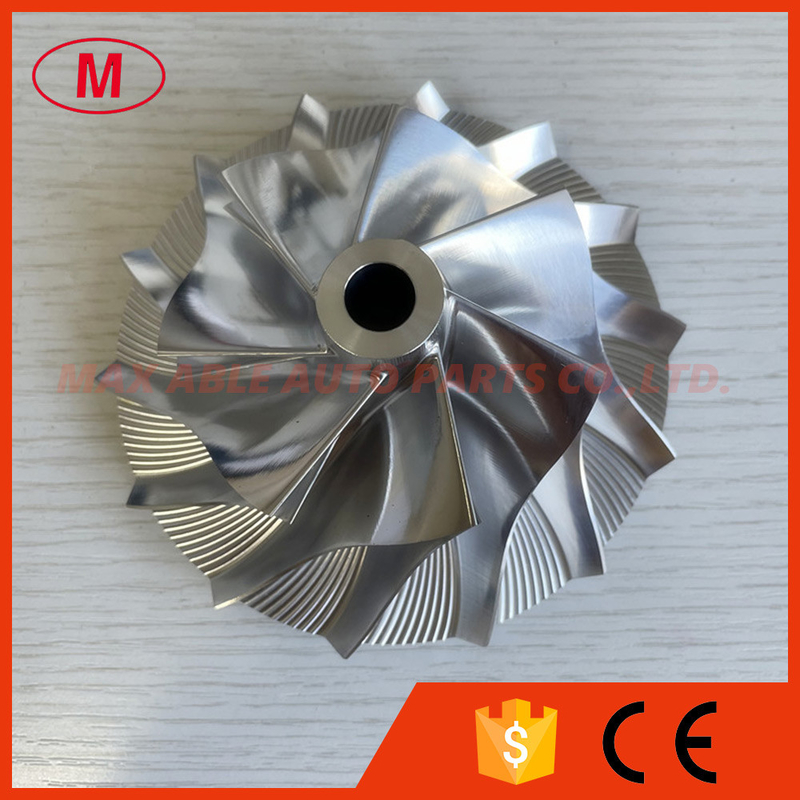

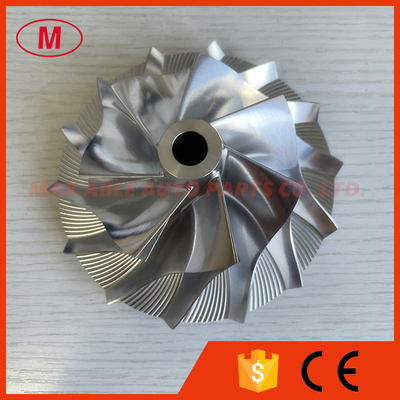

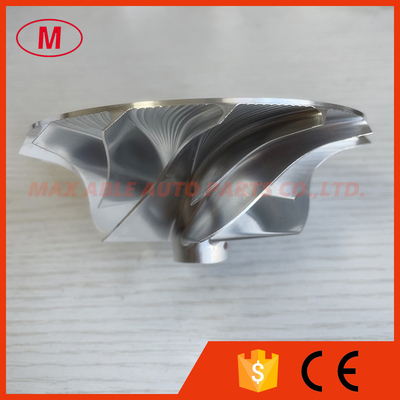

2. HX60 reverse 76.00/113.01mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
3.Size:
Nose Diameter:20.00mm
inducer:76.00mm
Exducer:113.01mm
Tapered tip exducer:118.53mm
Tip height:6.28mm
Superback:9.68mm
Overall height:54.00mm
Bore size:11.12mm
bore type:through
Trailing angle:50 degree
Cutback:6.0mm
Splitter height:24.35mm
SP height angle:-7.00
Blades height:37.28mm
7+7 BLADES
reverse rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.We have many size.
All the compressor wheels have been balanced.
