| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1.Model: K04 forward

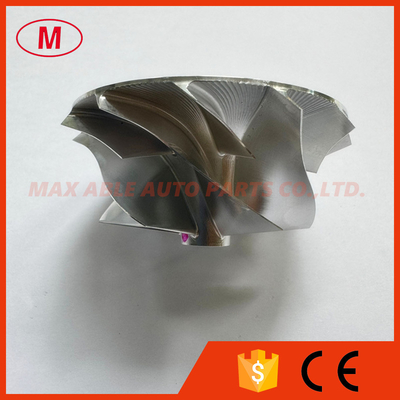

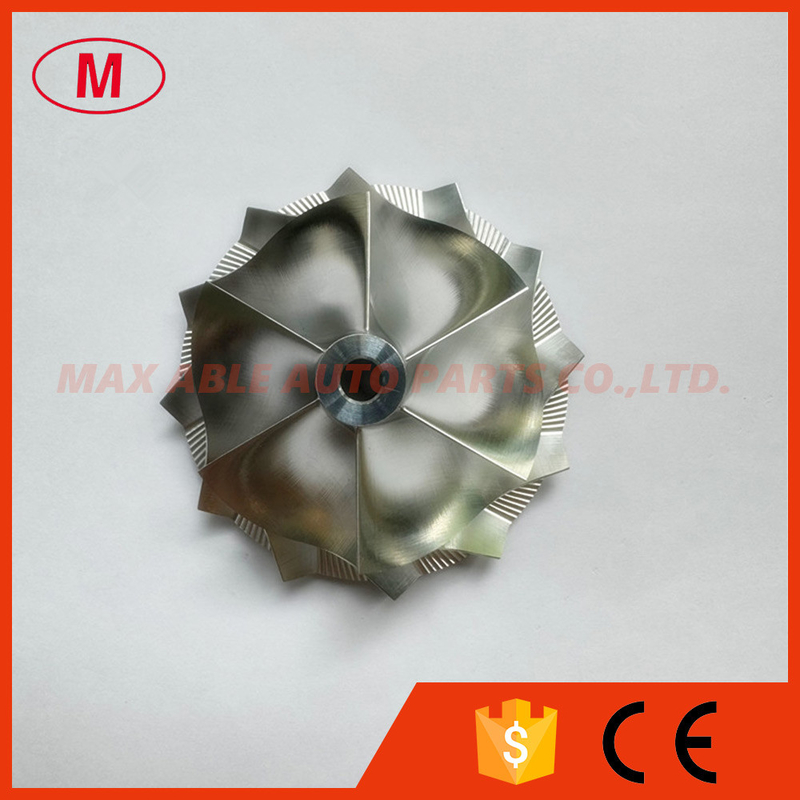

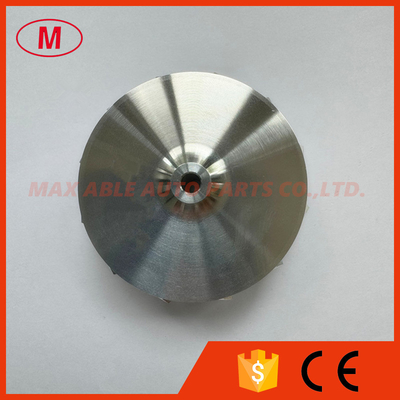

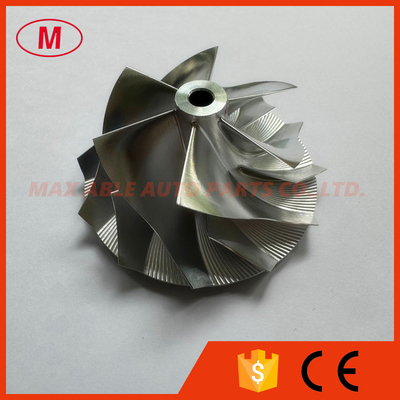

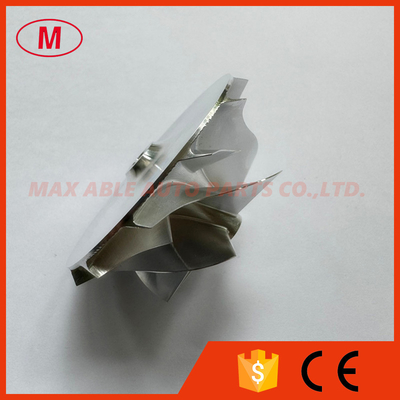

2.K04 5306-123-2218/0PB145702R 42.90/54.97mm 6+6 blades high performance aluminum 2618/milling /billet compressor wheel
3.SIZE:
Nose diameter:10.00mm
inducer:42.90mm
Exducer:54.97mm
Tapered tip exducer:58.65mm
Tip height:4.18mm
Superback:2.60mm
Overall height:27.81mm
bore size :4.61mm
bore type:through
Trailing angle:45 degree
Cutback:6.5mm
SP Height angle:-12.00
Blades height:23.20mm
Splitter height:10.60mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.Good quality and competitiveprice
5.Please send email to me or talk to me on online ,if you want to know more details.
All the billet compressor wheels have been balanced.
