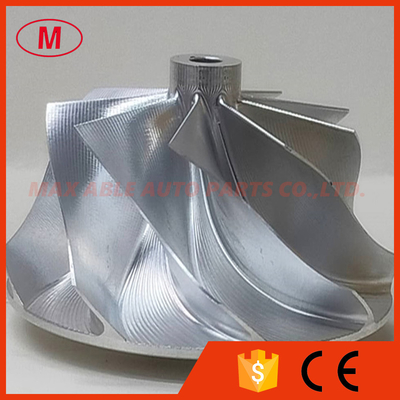

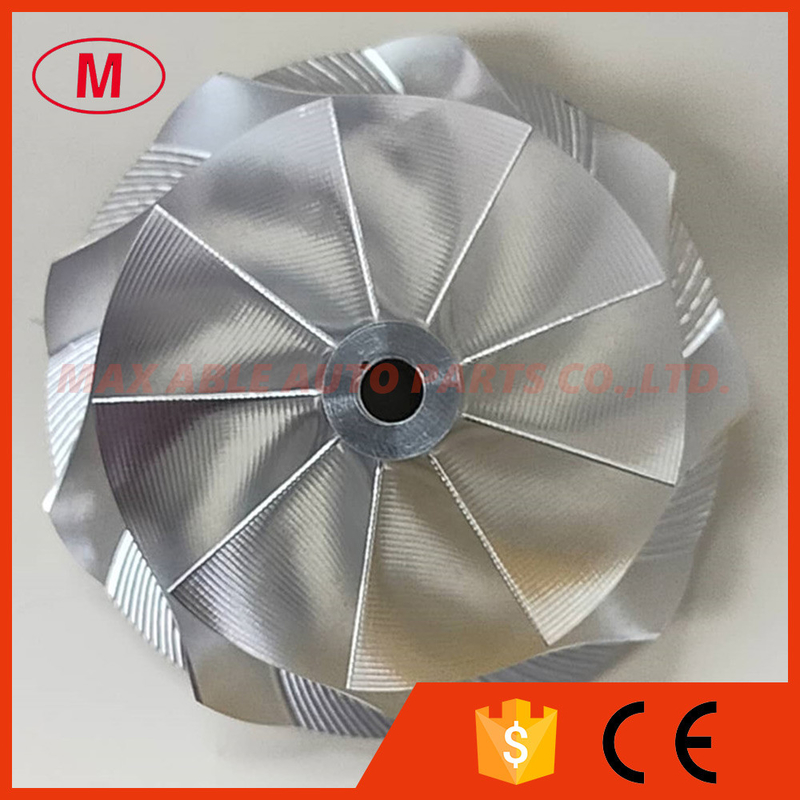

RHF5 49.15/61.00mm 9+0 blades Point milling turbo milling/aluminum 2618/billet compressor wheel

Product Details:

Brand Name:	NO
Model Number:	RHF5

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	neutral packing
Delivery Time:	3-7 days
Payment Terms:	TT ,western union ,paypal
Supply Ability:	1000

Contact Now

Detailed Product Description

Size:	49.15/61.00mm	Type:	Turbochargers

1.Model:RHF5 Forward

2.RHF5 49.15/61.00mm 9+0 blades Point milling turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:11.32mm

Inducer:49.15mm

Exducer:61.00mm

Tapered tip exducer:63.09mm

Tip height:6.35mm

Superback:4.03mm

Overall height:32.00mm

Bore size:5.10mm

bore type:through

Trailing angle:35 degree

Cutback:6.3mm

SP Height angle:0.00

Blade height:23.69mm

Splitter height:0.00mm

9+0 blades

Forward rotation

Tapered tip angle:11.6 degree

It is custom size ,please check carefully before buying.

4.High quality ,competitive price and good service.

5.We can also produce as your requirement.The minimun order 5pcs

All the compressor wheels have been balanced.

6.If you want more details, please send email to me or talk to me online.

We will try our best to meet your needs.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

RHF5 49.15/61.00mm 9+0 blades Point milling turbo milling/aluminum 2618/billet compressor wheel
