| Brand Name: | NO |
| Model Number: | GT1752S |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 40.27/52.00mm | Type: | Turbochargers |
|---|
1. MODEL:GT1752S forward

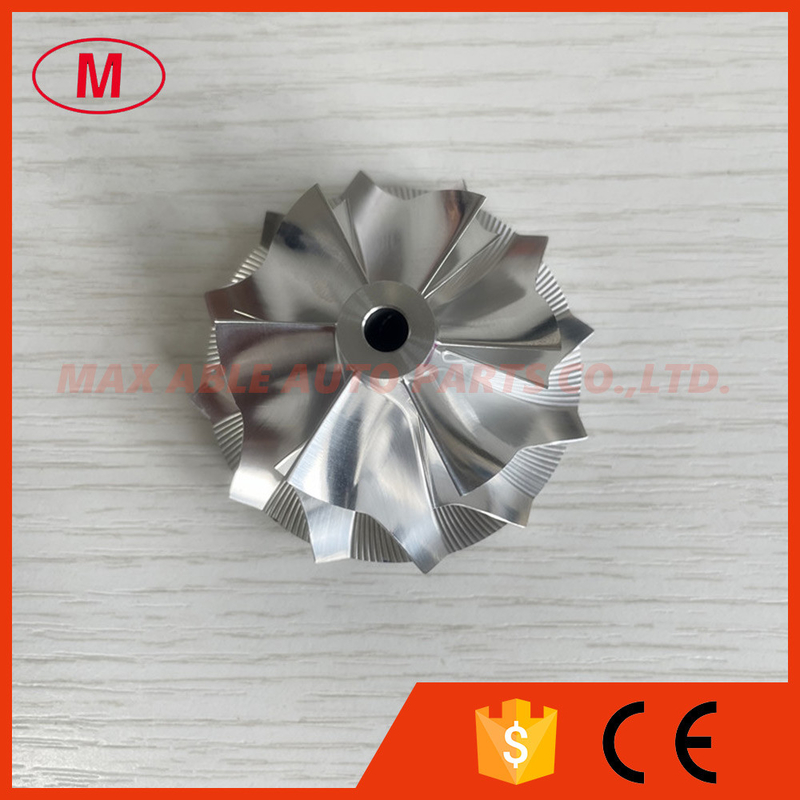

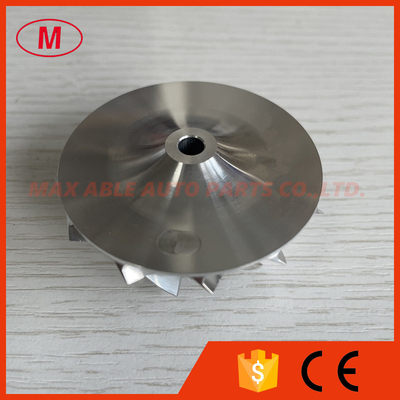

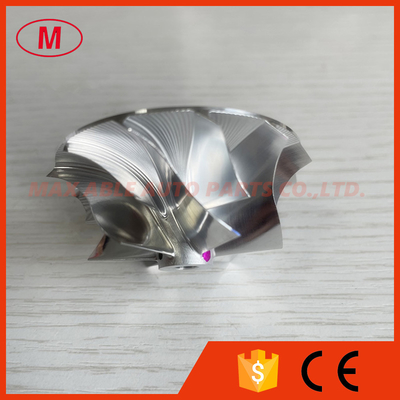

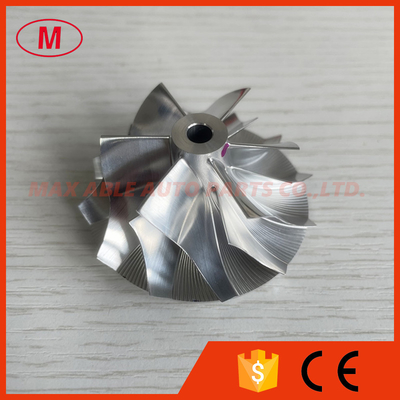

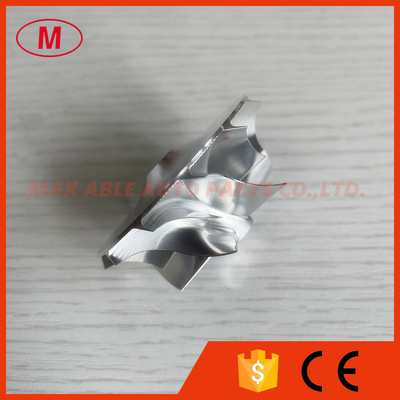

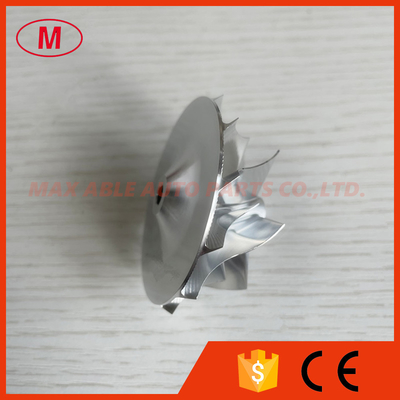

2.GT1752S 40.27/52.00mm 6+6blades high performance Turbocharger milling/aluminum 2618/billet compressor wheel for Twin: Big Turbo, 810356-0001, 810356-0002, 810356-0006, 810356-0007, 810356-0008, 810357-0001, 810357-0002, 810357-0006, 810357-0007, 810357-0008, 810358-0001, 810358-0002, 810358-0003, 810358-0004, 810358-0005, 810358-0006, 810358-0007, 810358-0008 Mazda SH01 SKYACTIV-D, 2.2D engine. Mazda 6, CX-5
3.Size:
Nose diameter:11.45mm
Inducer:40.27mm
Exducer:52.00mm
Tapered tip exducer:55.45mm
Tip height:3.99mm
Superback:3.90mm
Bore:5.08mm
bore type:through
Overall height:27.00mm
Trailing Angle:45 degree
Cutback:3.3mm
Blades height:21.10mm
Splitter height:13.20mm
SP Height angle:-0.50
Tapered tip Angle:30 degree
6+6 blades
Forward rotation
Tapered tip Angle:30 degree
It is for OE Compressor housing
4.High quality and competitive price.
5.Any questions please send email to me
Application:
Twin: Big Turbo, 810356-0001, 810356-0002, 810356-0006, 810356-0007, 810356-0008, 810357-0001, 810357-0002, 810357-0006, 810357-0007, 810357-0008, 810358-0001, 810358-0002, 810358-0003, 810358-0004, 810358-0005, 810358-0006, 810358-0007, 810358-0008
