| Brand Name: | NO |
| Model Number: | TD05H 18G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 40.27/52.00mm | Type: | Turbochargers |
|---|

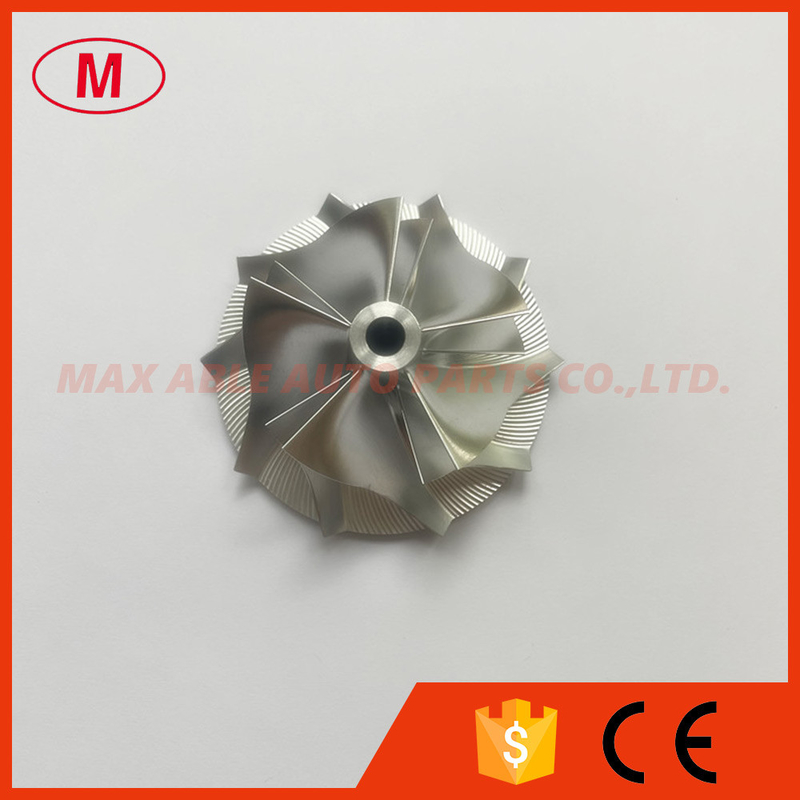

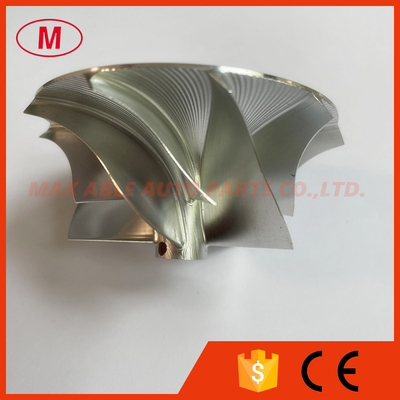

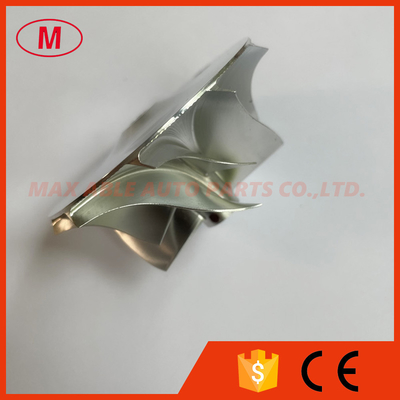

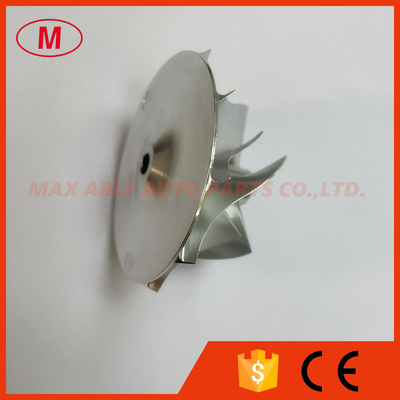

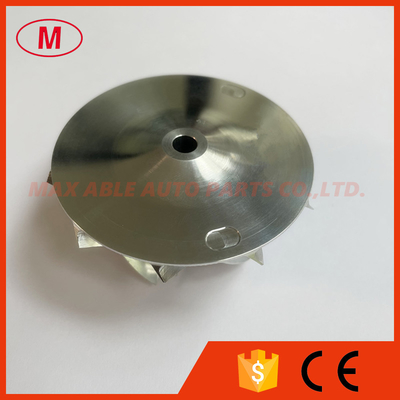

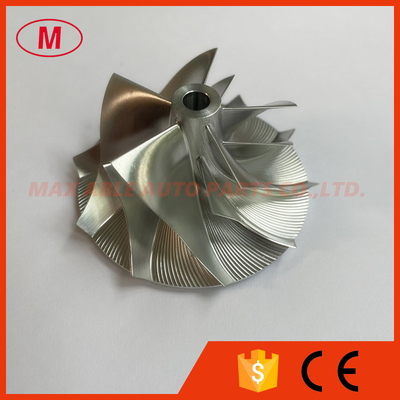

1.Model:TD05H 18G forward
3.Size:
Nose diameter:11.96mm
inducer:50.39mm
Exduder:68.01mm
Tappeared tip exducer:72.46mm
Tip height:4.85mm
Superback:2.90mm
Overall height:35.20mm
bore size :6.50mm
bore type:through
Trailing Angel:50 degree
Cutback:0.0mm
SP Height angle:-9.10
Blades height:29.10mm
Splitter height:21.55mm
5+5blades
Forward rotation
Tapered tip angle:30 degree
Fit for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
