| Brand Name: | NO |
| Model Number: | TD04HL |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 41.95/56.02mm | Type: | Turbochargers |
|---|
1. MODEL:TD04HL 15T Forward

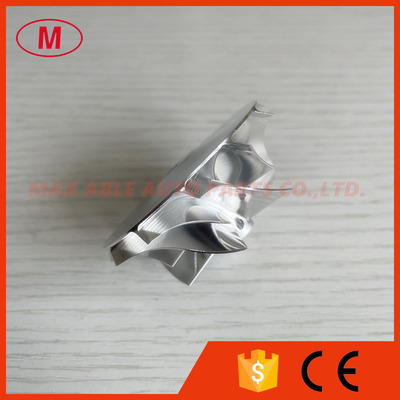

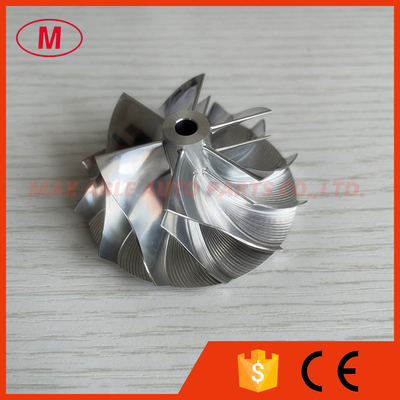

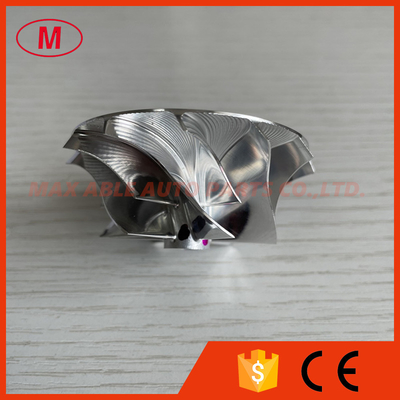

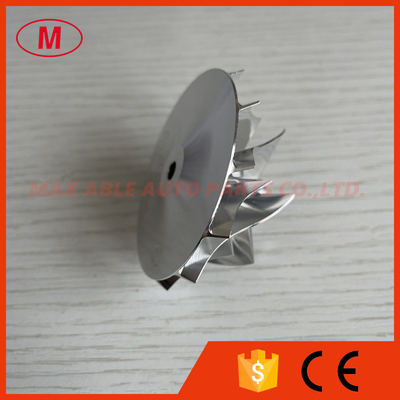

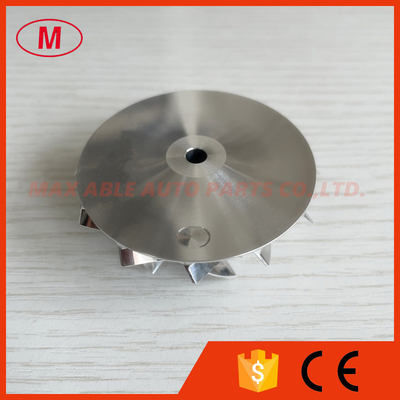

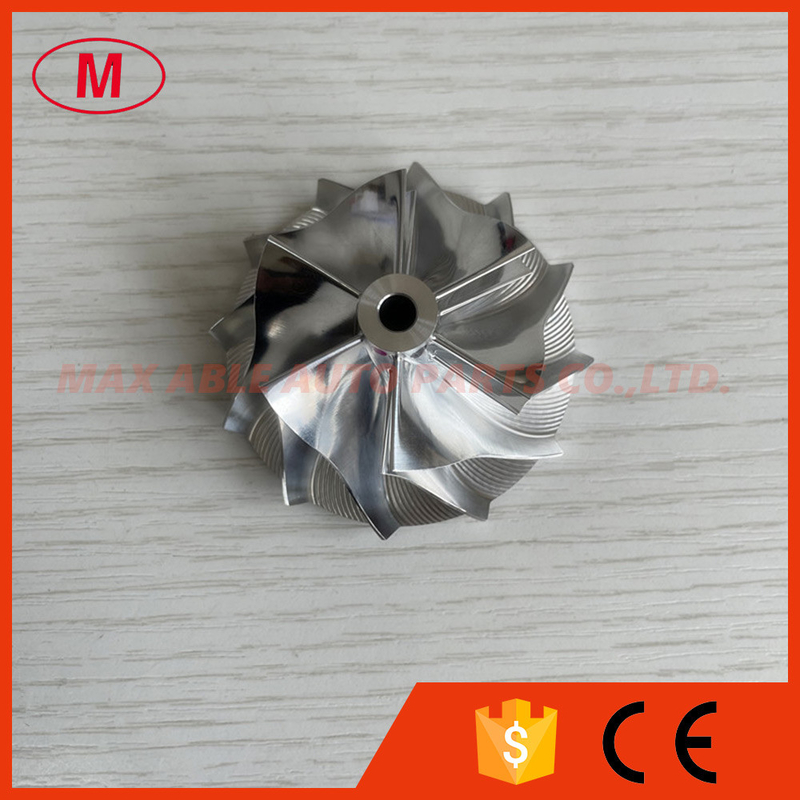

2.TD04HL 15T 49189-43500 41.95/56.02mm 6+6 blades Turbocharger milling/aluminum 2618 /Billet compressor wheel for 49189-00560, 49189-00570, 49189-00580, 49189-00590, 49189-01700, 49189-01800, 49189-01810, 49189-01820,49189-01830,49189-02310,49189-02311,49189-02320,49189-02330,49189-02340, 49189-02350, 49189-02600, 49189-04200, 49189-07000, 49189-07001, 49377-06350, 49377-06351, 49377-06360, 49377-06361, 49389-01700 Volvo V40 2.0 T4,Saab 9-3 2.3 Turbo,Volvo S40 2.0 T4,Saab 9000 2.3 Aero
3.Size:
Nose diameter:10.77mm
inducer:41.95mm
Exducer:56.02mm
Tapered tip exducer:60.33mm
Tip height:4.74mm
Superback:1.83mm
Bore size:5.00mm
bore type:through
Cutback:0.0mm
Overall height:26.22mm
Blade height:22.38mm
Splitter height:15.40mm
Sp height angle:-2.00
6 long 6 short
It is for OE compressor housing
Tapered tip angle:30 degree
4.High quality and competitive price.
5.Any questions please send email to me.
We have more size ,if you want ,please don't hesitate to contact me.
